61 31 011 Removing and installing/replacing volute spring cassette

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Remove and install fixture for steering column stalk. Refer to 61 31 006 REMOVING AND INSTALLING (REPLACING) FIXTURE FOR STEERING COLUMN STALK .

Unlock catches (1) and remove volute spring cassette (2) towards top.

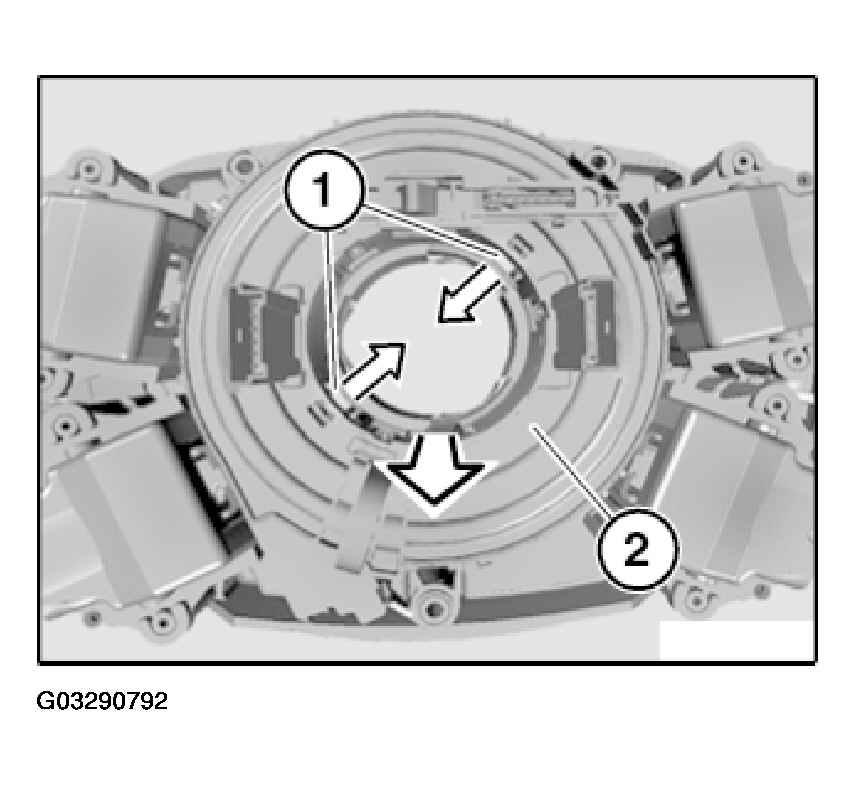

Fig 1: Removing Volute Spring Cassette

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Seat volute spring cassette exactly on plug connections (1), guide (2) and mounts (3).

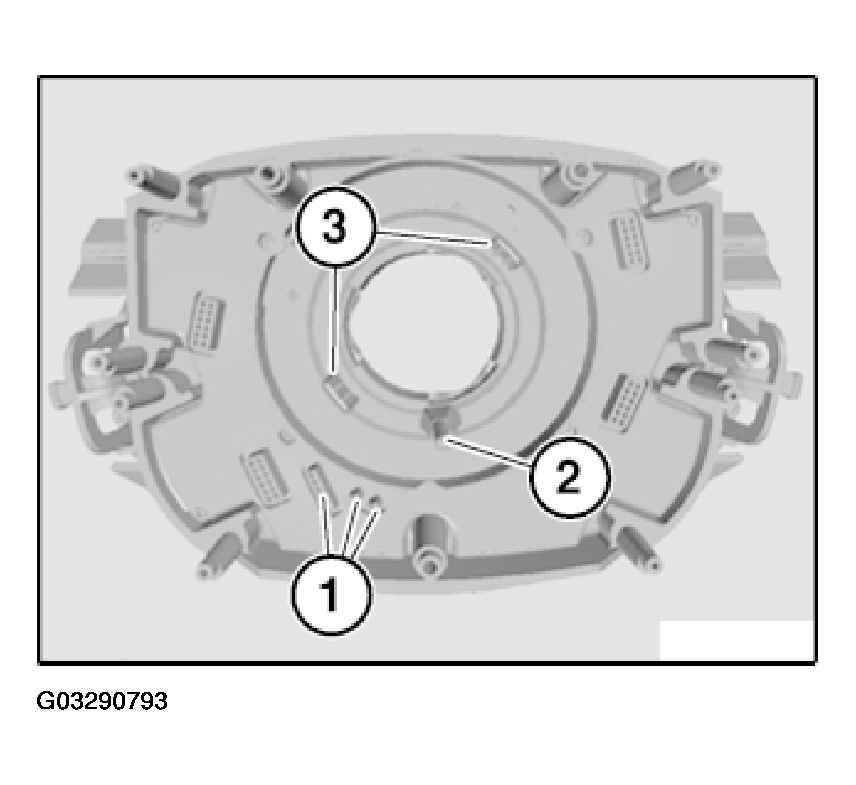

Fig 2: Seating Volute Spring Cassette

Courtesy of BMW OF NORTH AMERICA, INC.
