61 31 006 Removing and installing (replacing) fixture for steering column stalk
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Move wheels into straight-ahead position and do not alter this position during the repair work.
Necessary preliminary tasks:
- Move steering column into "lower" and "extended" position
- Disconnect battery negative lead, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD
- Remove AIRBAG unit, refer to DRIVER-SIDE AIR BAG MODULE
- Remove steering wheel, refer to STEERING WHEEL
- Remove front section of steering column trim, refer to STEERING COLUMN COVER UPPER SECTION
- Remove lower section of steering column trim, refer to STEERING COLUMN COVER LOWER SECTION
- Remove wood trim on instrument panel, middle, refer to 51 45 363 REMOVING AND INSTALLING/REPLACING CENTER WOOD TRIM ON INSTRUMENT PANEL
- Remove top section of steering column casing, refer to STEERING COLUMN COVER UPPER SECTION
NOTE:
Comply with notes and instructions on handling fibre optic cables. Refer to 61 00... Notes on handling optical fibers .

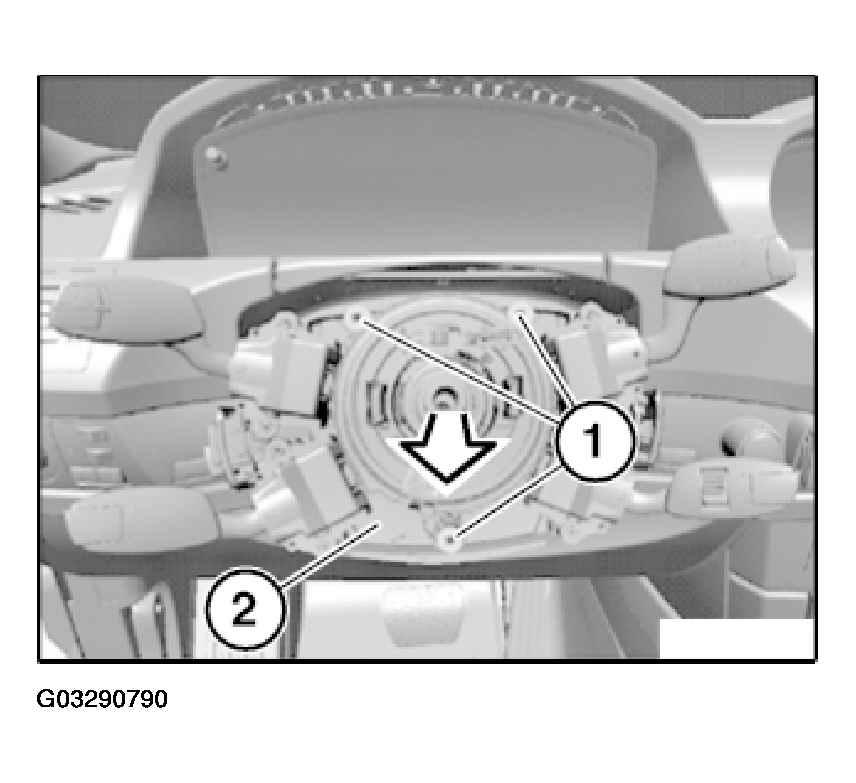

Release screws (1).
Pull out fixture for steering column stalk (2) in direction of arrow.
Disconnect plug connections behind and remove fixture for steering column stalk (2).
Replacement:
NOTE:

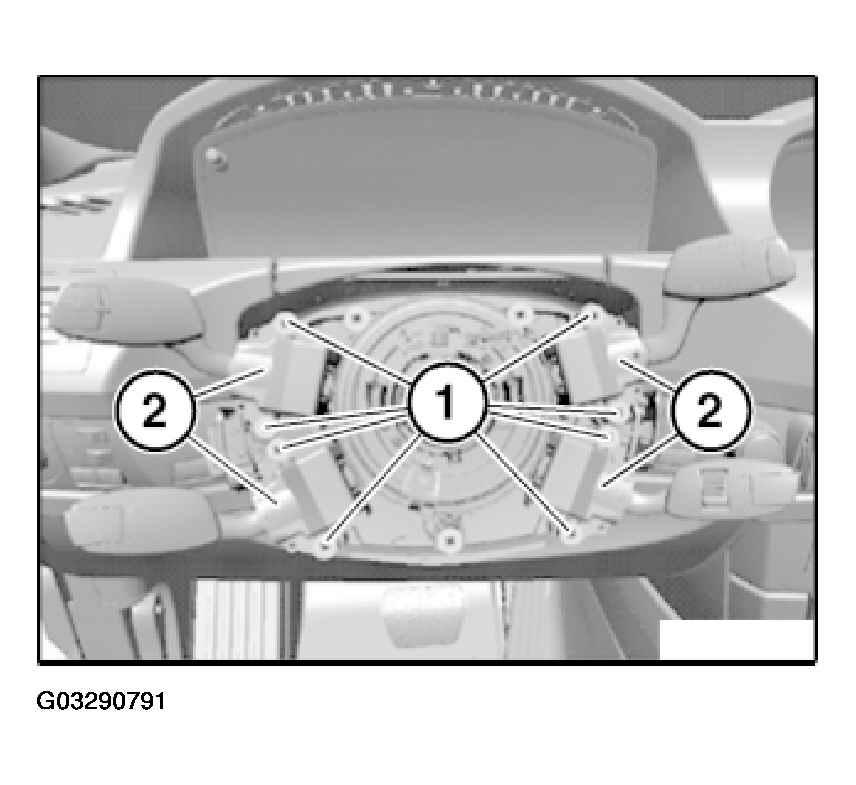

Illustration shows fixture for steering column stalk installed.
Release screws (1).
Remove steering column control (2).
Replacement:
Carry out programming/coding. Refer to Diagnosis Programming/Coding .
Carry out adjustment of steering angle sensor.
