61 67 083 Removing and installing/replacing left or right high-pressure nozzle of headlight cleaning system

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

13 3 010

Remove front bumper trim. Refer to 51 11 156 REMOVING AND INSTALLING FRONT BUMPER TRIM .

To prevent excess escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010.

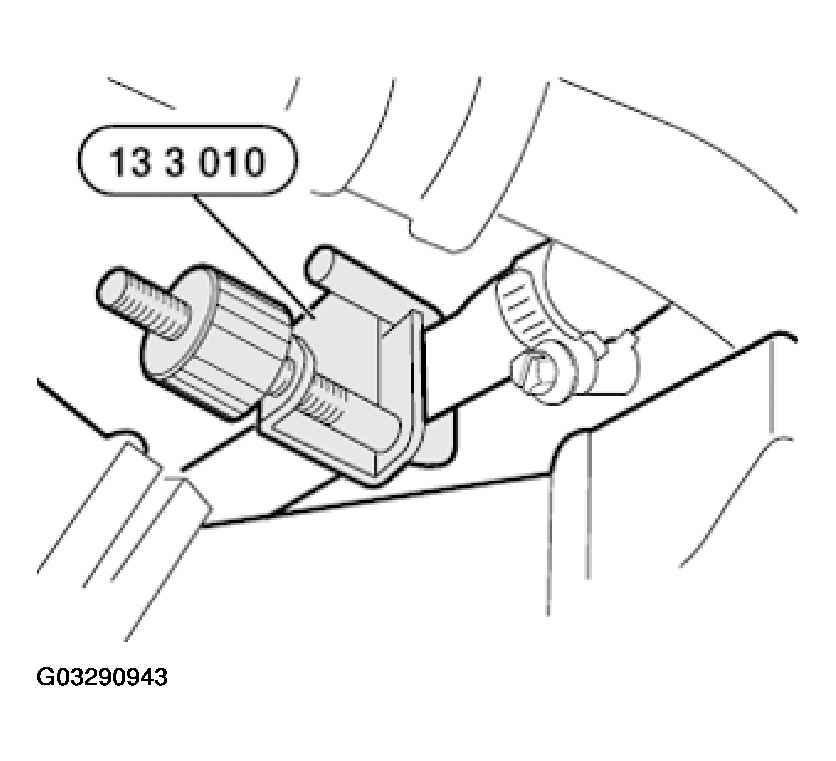

Fig 1: Sealing End Of High-Pressure Line

G03290943

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock H.P. line (3) and detach from H.P. nozzle (1).

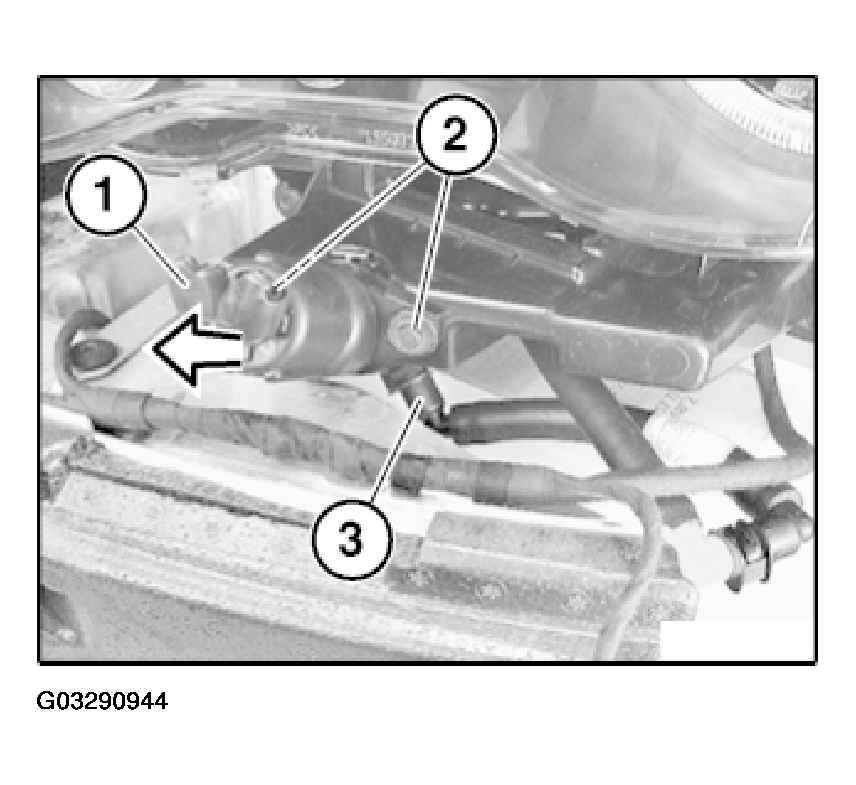

Fig 2: Removing H.P. Nozzle

G03290944

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove H.P. nozzle (1).

Installation:

Slide guide (2) into opening (1).

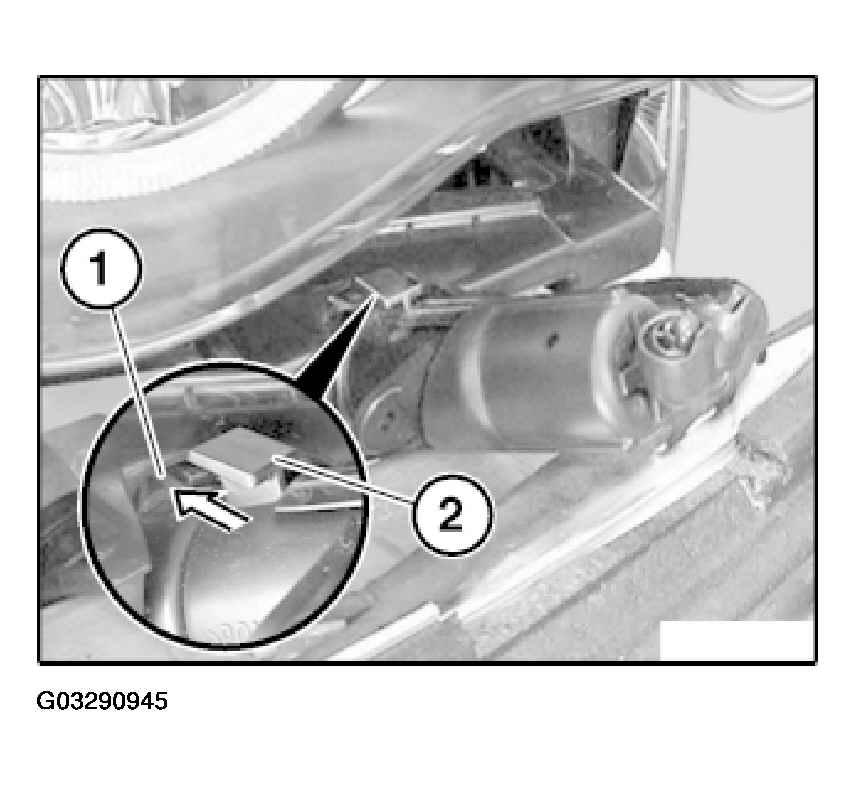

Fig 3: Sliding Guide Into Opening

G03290945

Courtesy of BMW OF NORTH AMERICA, INC.

New spray nozzles are already preset.

Carry out function check.
