61 35 795 Removing and installing (replacing) control unit for adaptive headlight

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove safety information module. Refer to 65 77 700 REMOVING AND INSTALLING (REPLACING) SAFETY INFORMATION MODULE .

Unfasten plug connection (1) and disconnect.

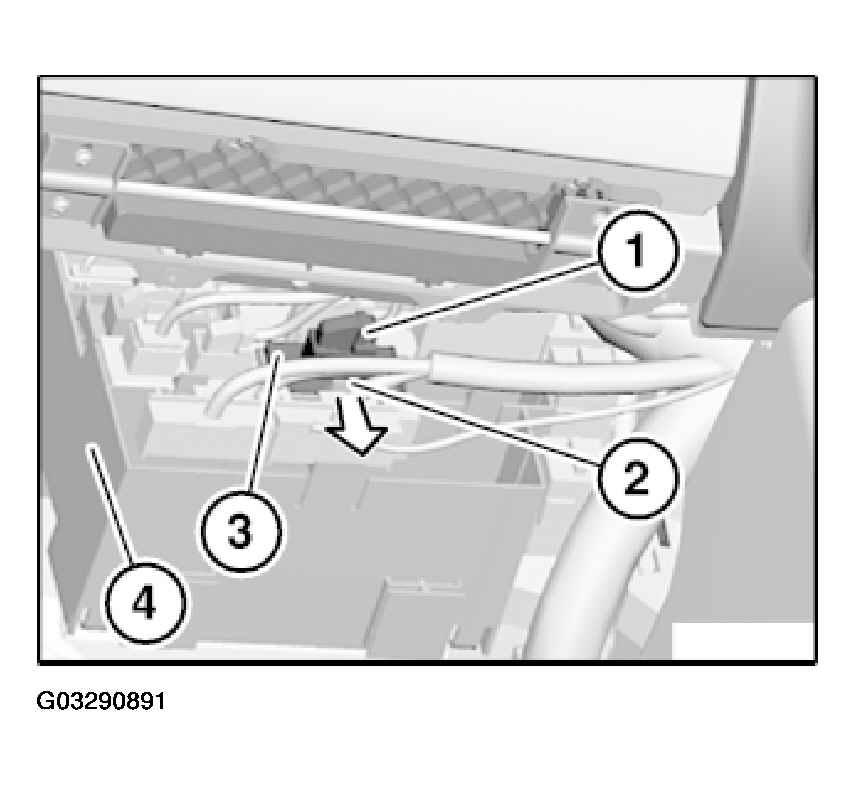

Fig 1: Removing Control Unit For Adaptive Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock catch (2) in direction of arrow.

Pull control unit for adaptive headlight (3) out of equipment carrier (4) and remove.

Replacement:

Carry out programming/coding. Refer to Diagnosis Programming/Coding .
