61 21 010 Removing and installing battery

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe safety instructions for handling vehicle battery. Refer to 61 00... SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY .

Necessary preliminary tasks:

Remove flap in luggage compartment panel on right, refer to 51 47 172 REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT
Remove battery cover, refer to 61 21... REMOVING AND INSTALLING / REPLACING BATTERY COVER
Disconnect battery negative lead, refer to 61 20 900 DISCONNECTING AND CONNECTING BATTERY NEGATIVE LEAD
Remove spare wheel. See 51 47 140 REMOVING AND INSTALLING / REPLACING PANEL FOR LUGGAGE COMPARTMENT PARTITION

Unscrew nut (1).

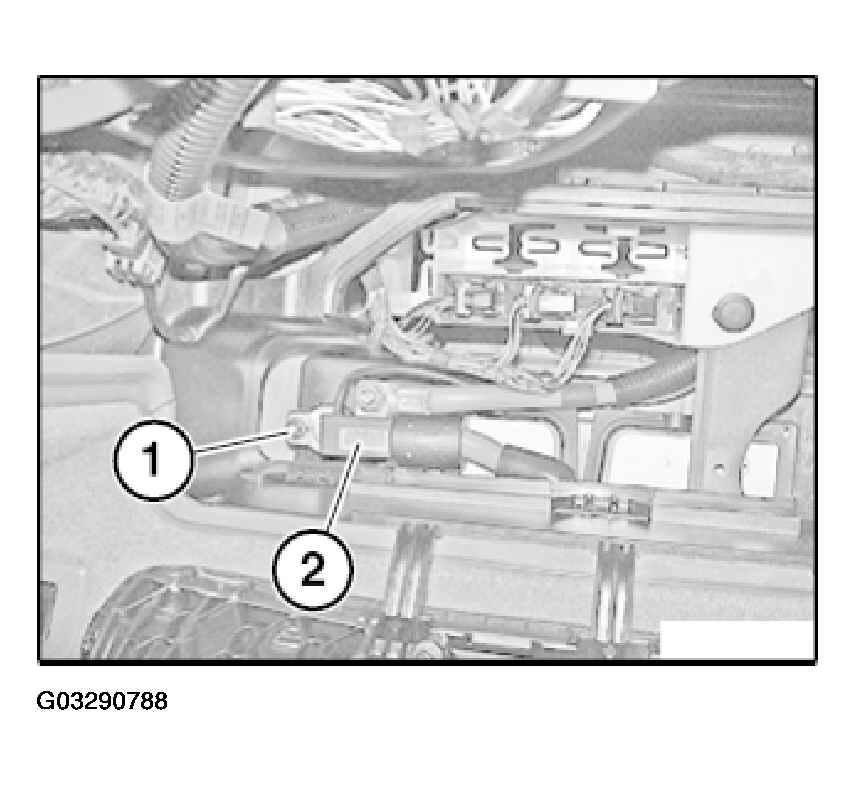

Fig 1: Detaching Safety Battery Terminal

Courtesy of BMW OF NORTH AMERICA, INC.

Tightening torque 61 21 1AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

IMPORTANT: Do not under any circumstances pull/lever safety battery terminal off by force.

Detach safety battery terminal (2) towards top, lay to one side and secure.

Release screw (2) and remove bracket (1).

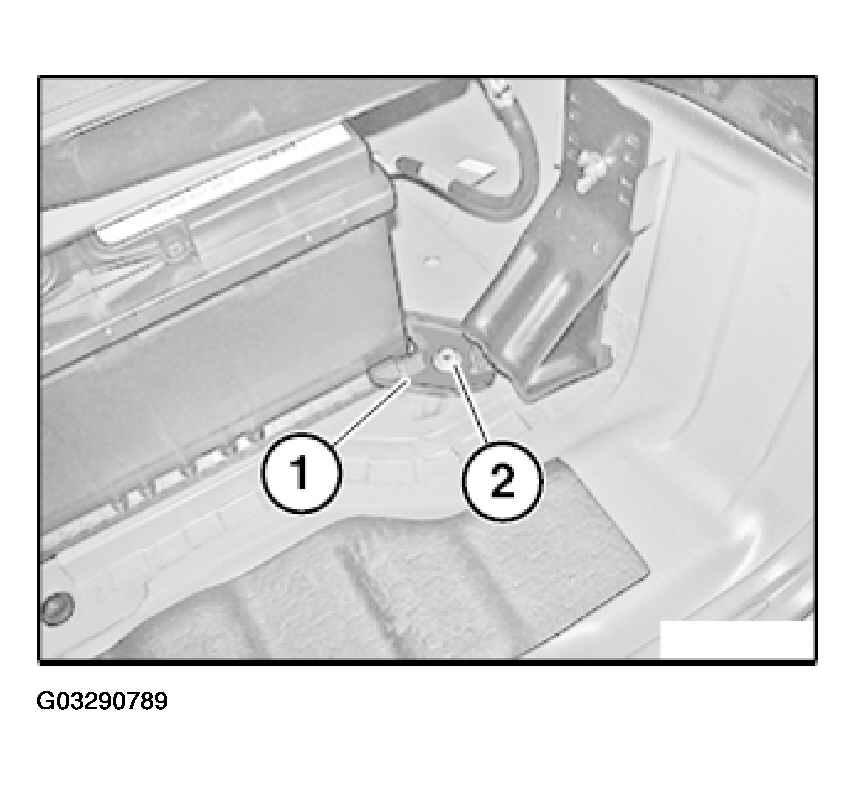

Fig 2: Removing Bracket

Courtesy of BMW OF NORTH AMERICA, INC.

Detach vent hose from battery.

Pull out battery.

Installation:

Make sure battery is correctly seated in mounting.
