61 12 187 Replacing wiring harness on function carrier on left or right rear door

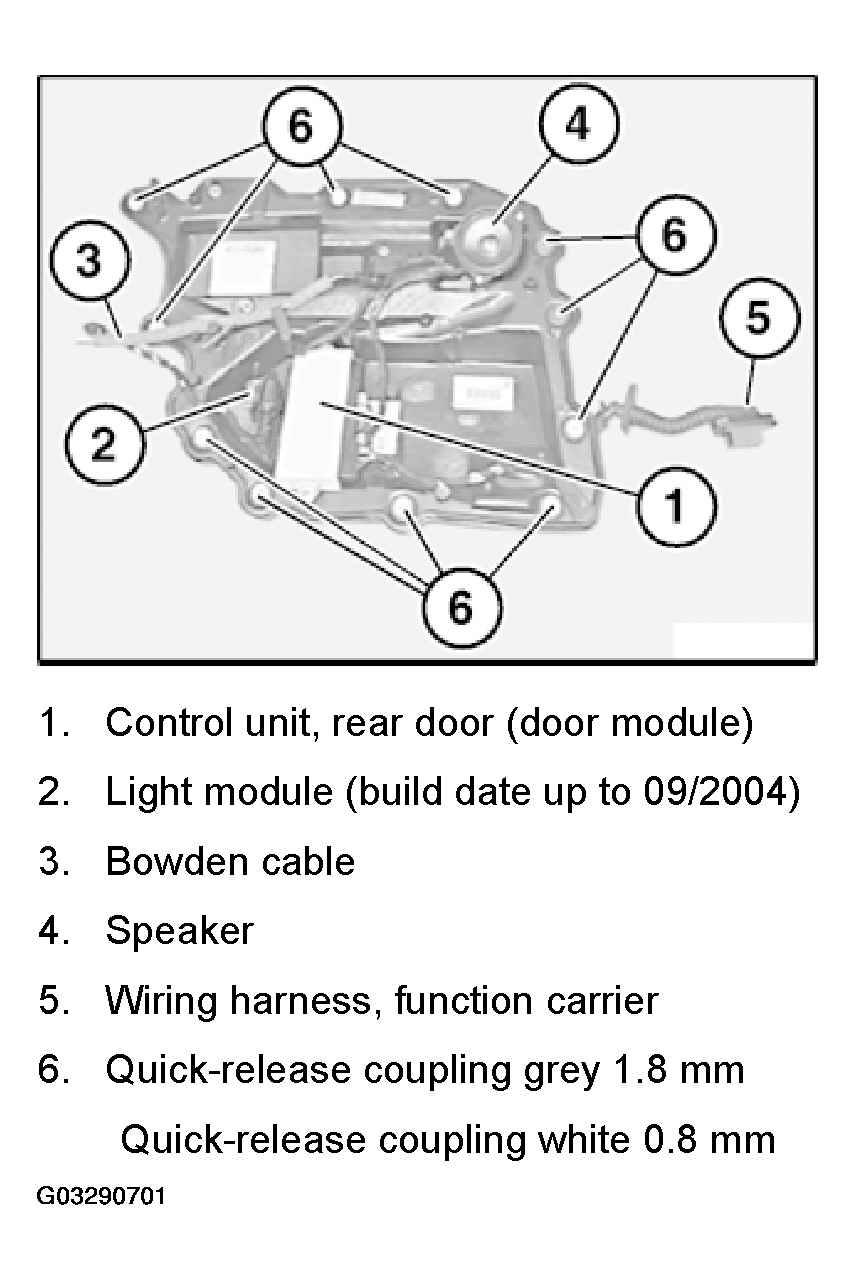

Overview of function carrier components without roller sun blind:

Fig 1: Overview Of Function Carrier Components Without Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

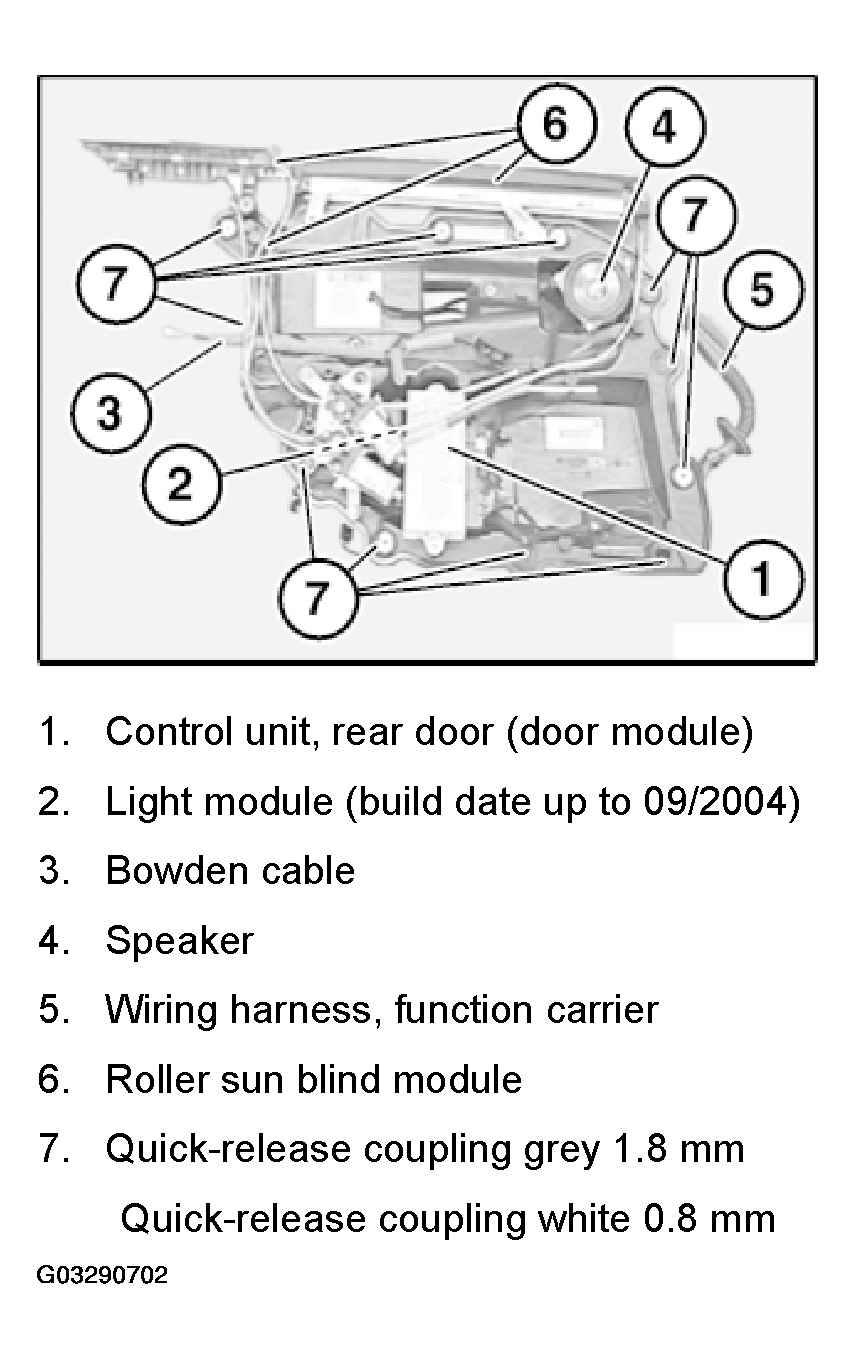

Overview of function carrier components with roller sun blind:

Fig 2: Overview Of Function Carrier Components With Roller Sun Blind

Courtesy of BMW OF NORTH AMERICA, INC.

Necessary preliminary tasks:

• Remove function carrier in rear door refer to 51 22 035 REMOVING AND INSTALLING FUNCTION CARRIER (WITHOUT ROLLER SUN BLIND) ON LEFT OR RIGHT REAR DOOR
• Remove control unit for rear door, refer to 61 35 224 REMOVING AND INSTALLING (REPLACING) CONTROL UNIT FOR LEFT OR RIGHT REAR DOOR
• Remove speaker, refer to 65 13 090 REMOVING AND INSTALLING/REPLACING SPEAKER (MID-RANGE SPEAKER, DOOR AT REAR)

With roller sun blind only:

• Remove roller sun blind module, refer to 51 16 405 REMOVING AND INSTALLING OR REPLACING BLIND AT SIDE WINDOW OF LEFT OR RIGHT REAR DOOR

Build date up to 09/2004:

• Disconnect light module plug connection, refer to 63 99 491 REPLACING LIGHT MODULE FOR REAR LEFT OR RIGHT OUTSIDE DOOR HANDLE LIGHTING (UP TO 09/2004)

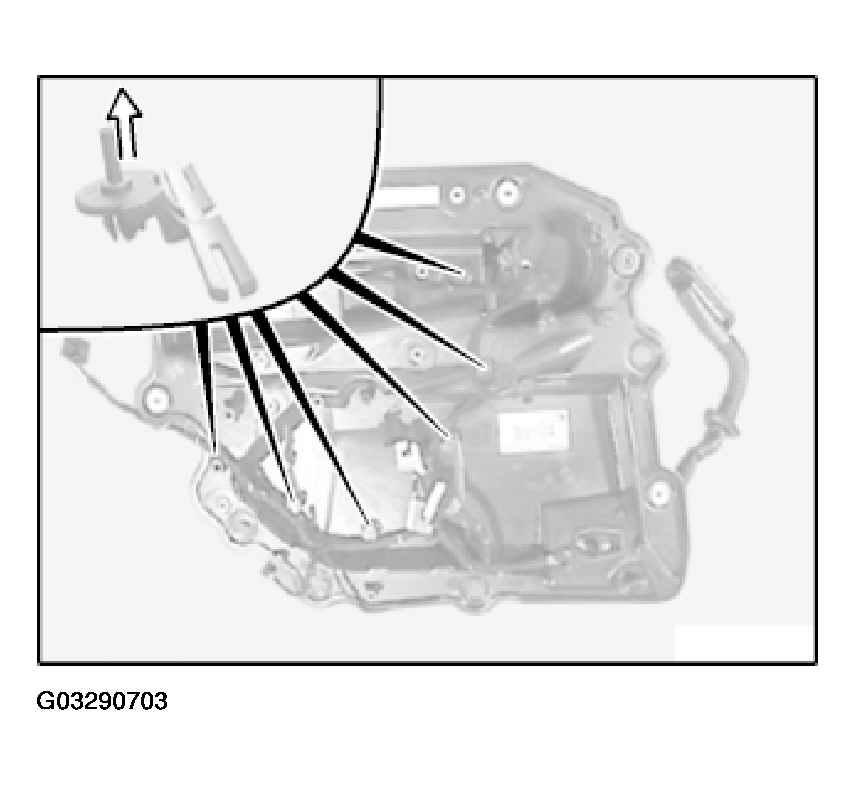

Unclip wiring harness.

Fig 3: Unclipping Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.

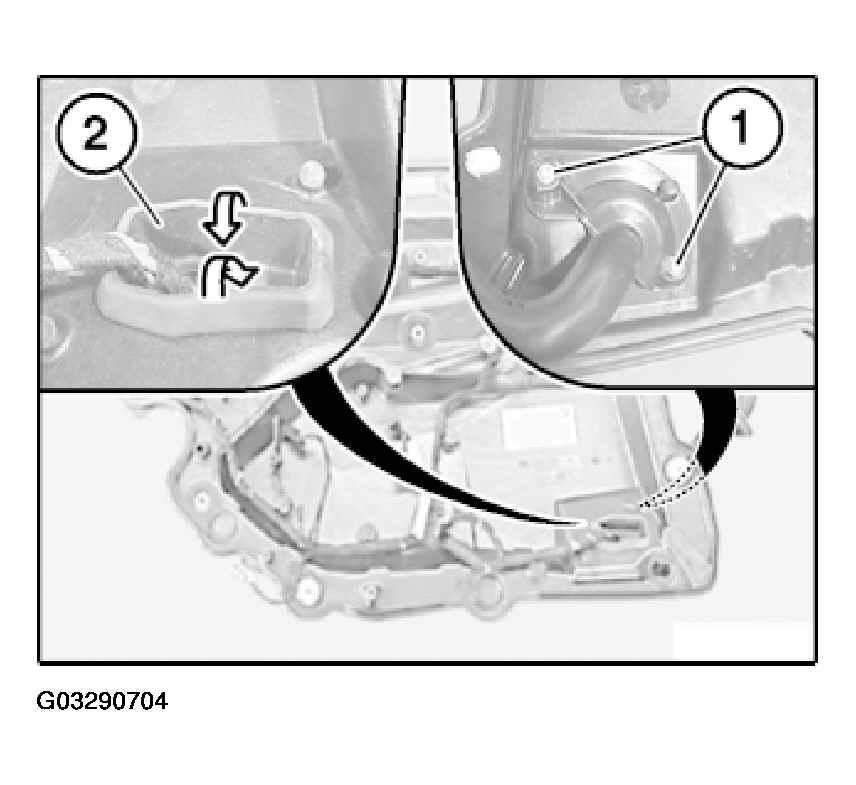

Release screws (1).

Feed out rubber grommet (2) with wiring harness.

Fig 4: Feeding Out Rubber Grommet With Wiring Harness

Courtesy of BMW OF NORTH AMERICA, INC.
