65 13 090 Removing and installing/replacing speaker (mid-range speaker, door at rear)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear door trim, refer to 51 42 000 REMOVING AND INSTALLING LEFT OR RIGHT REAR DOOR TRIM PANEL

Release screws (1).

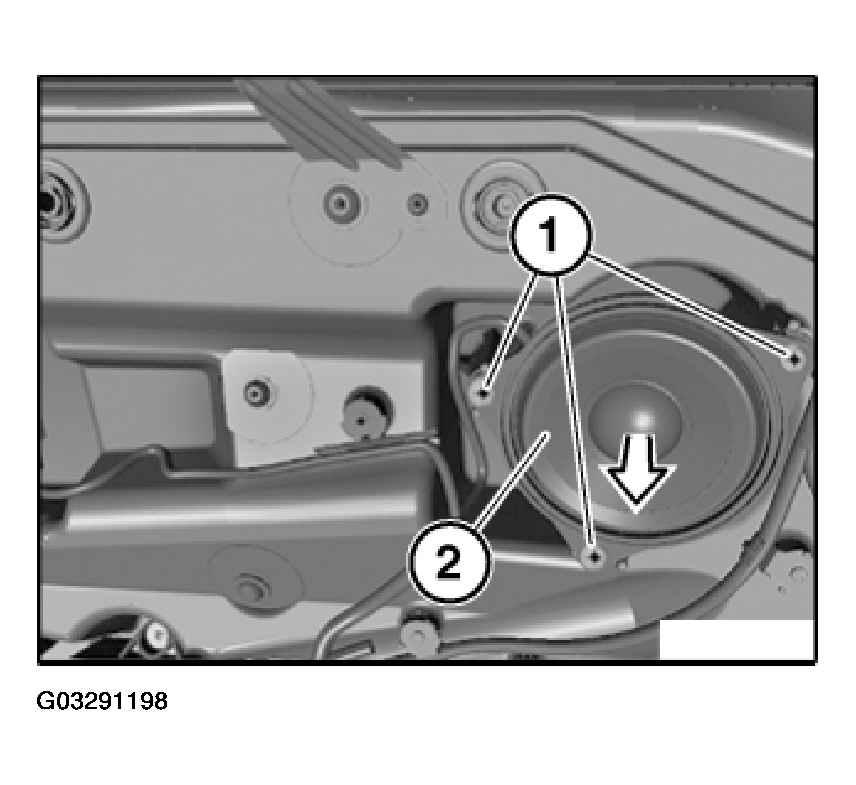

Fig 1: Removing/Installing Speaker)

Courtesy of BMW OF NORTH AMERICA, INC.

Remove speaker (2) in direction of arrow.

Disconnect plug connection underneath and remove speaker (2).
