51 24... Removing and installing/replacing angle transmitter for rear lid actuation (electrohydraulic-fully automatic)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove right luggage compartment wheel arch trim, refer to 51 47 161 REMOVING AND INSTALLING / REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM
Remove panel for rear window shelf, refer to 51 46 000 REMOVING AND INSTALLING/REPLACING TRIM FOR REAR PARCEL SHELF

Lever out cable holder (1).

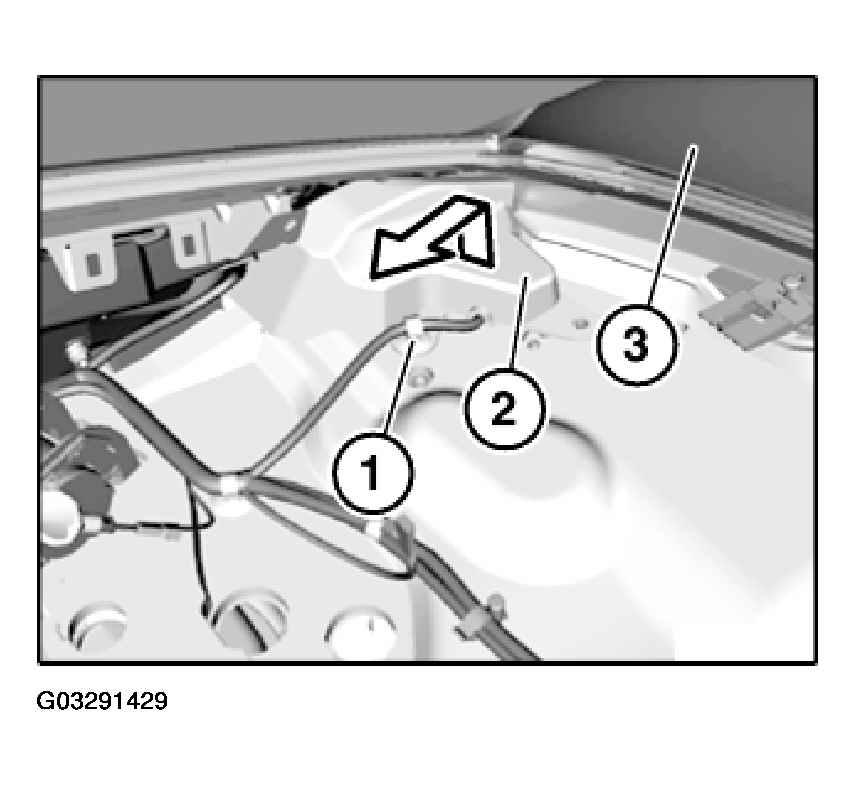

Fig 1: Removing Cable Holder

G03291429

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out cover (2) and remove.

(3) Luggage compartment lid

Release screw (1).

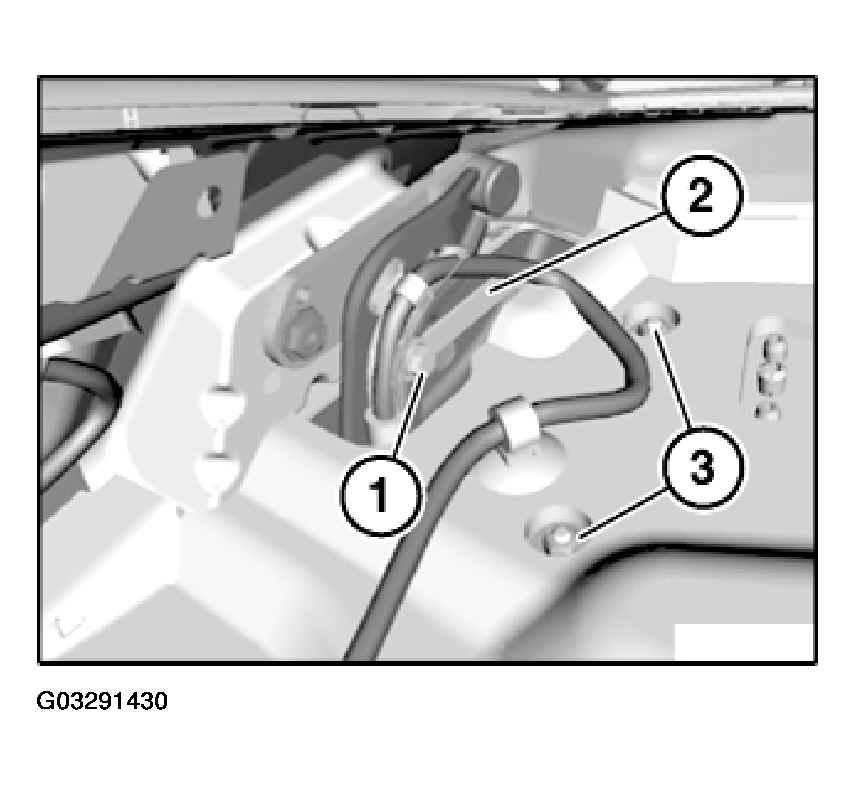

Fig 2: Releasing Screw

G03291430

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Before nuts (3) are released, a 2nd person must open rear lid and hold angle transmitter (2).

Unscrew nuts (3).

Tightening torque 51 24 7AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Disconnect plug connection (1).

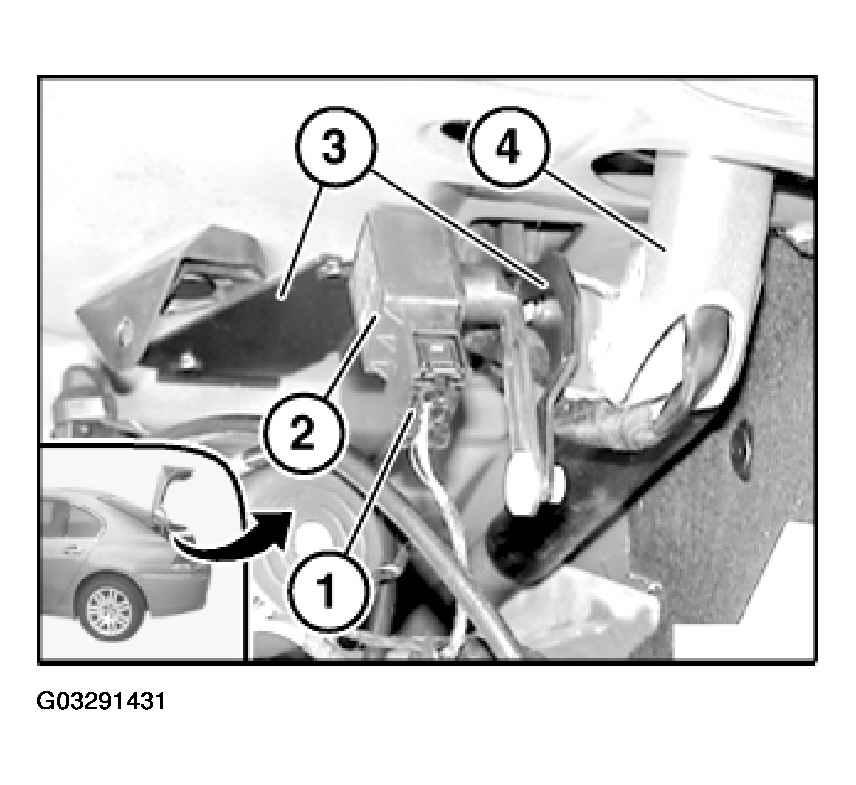

Fig 3: Removing Angle Transmitter

G03291431

Courtesy of BMW OF NORTH AMERICA, INC.

Remove angle transmitter (2) with retaining bracket (3).

(4) Right rear lid hinge

installation:

Angle transmitter (2) is initialized by automatic closing and opening once.
