Checking Fluid Level In Hydraulic Unit:
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove right luggage compartment wheel arch trim, refer to 51 47 161 REMOVING AND INSTALLING / REPLACING RIGHT LUGGAGE COMPARTMENT WHEEL ARCH TRIM
Test requirements:
Open rear lid (motor-driven) twice and close again, this bleeds the system.
Rising air bubbles must not be visible.
Check fluid level in installed state.

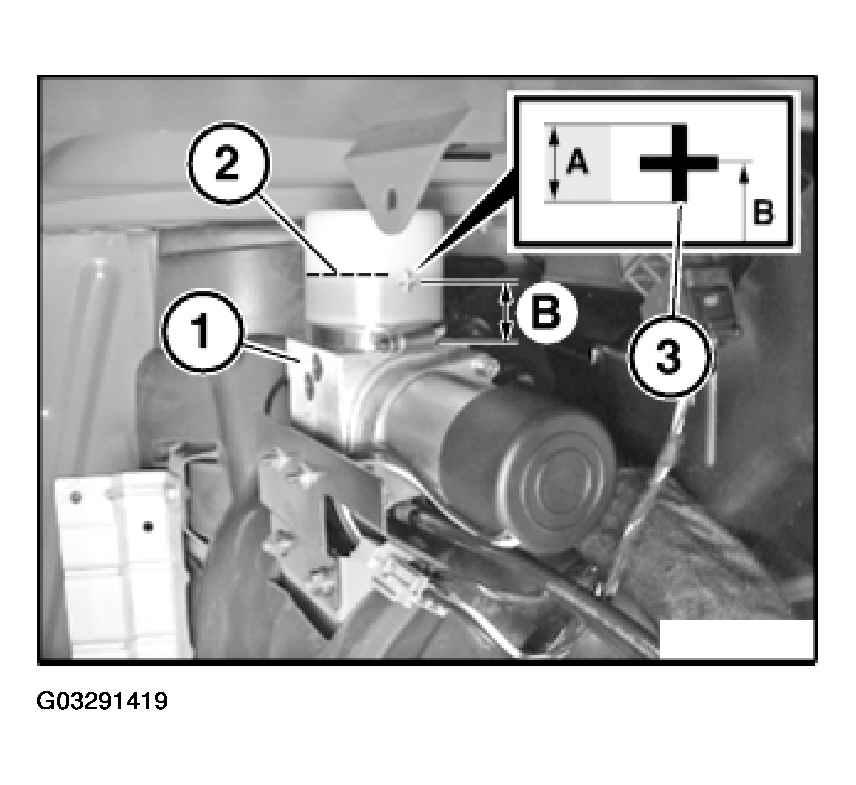

Check distance (B) from middle of marking (3) to upper edge of pump carrier (1).
B = 28+/-1 mm
When rear lid is fully opened (cylinder retracted), fluid level (2) must be in area (A) of marking (3).
NOTE:
Fluid fill quantity (lines filled with fluid and cylinder retracted):
- Top edge of marked cross = 100 ml
- Bottom edge of marked cross = 80 ml
