51 24 100 Removing and installing/replacing rear lid lock (upper section)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove panel for rear lid, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID

Unlock catch (1) and detach Bowden cables (2 and 3) from rear lid lock upper section (5).

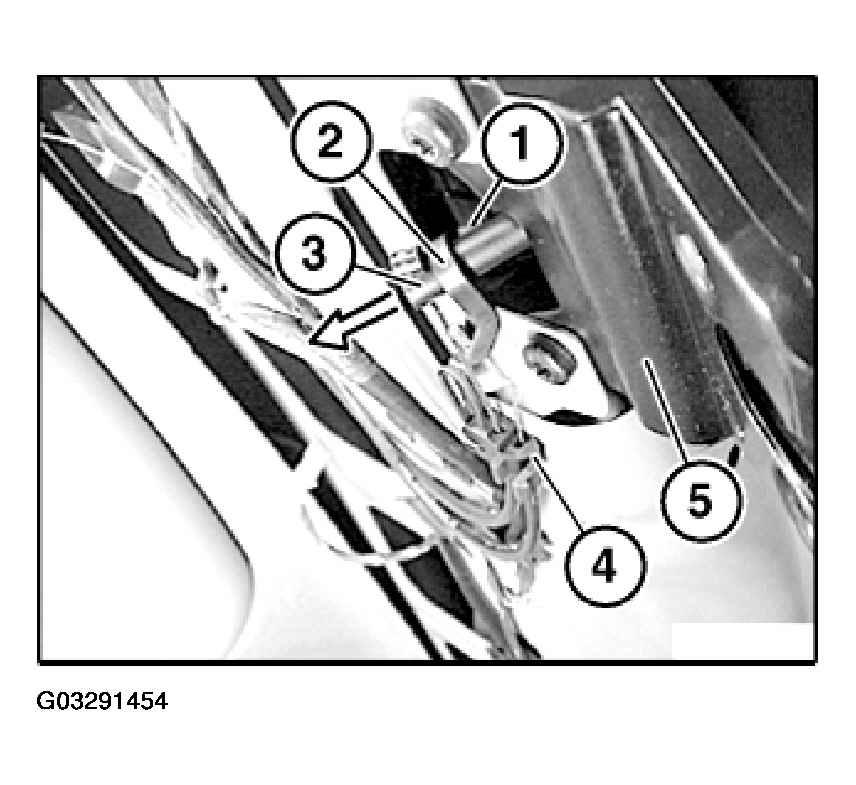

Fig 1: Detaching Bowden Cables

G03291454

Courtesy of BMW OF NORTH AMERICA, INC.

Version with manual unlocking:

Installation:

Bowden cable (2) must be correctly positioned in guide (4).

Release screws (1).

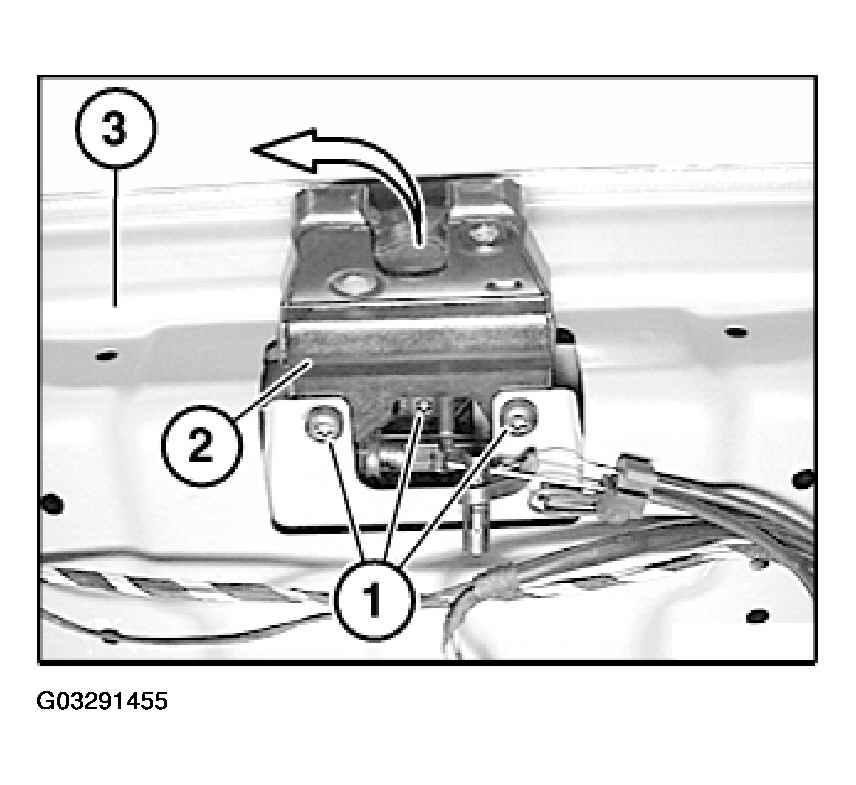

Fig 2: Removing Rear Lid Lock Upper Section

G03291455

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew rear lid lock upper section (2), disconnect plug connection and remove.

Tightening torque 51 24 5AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Installation:

Perform function check with rear lid open.

Adjust rear lid lock, refer to 51 24 004 ADJUSTING REAR LID LOCK (LOWER SECTION OF REAR LID LOCK)

Replacement:

Release screws (1).

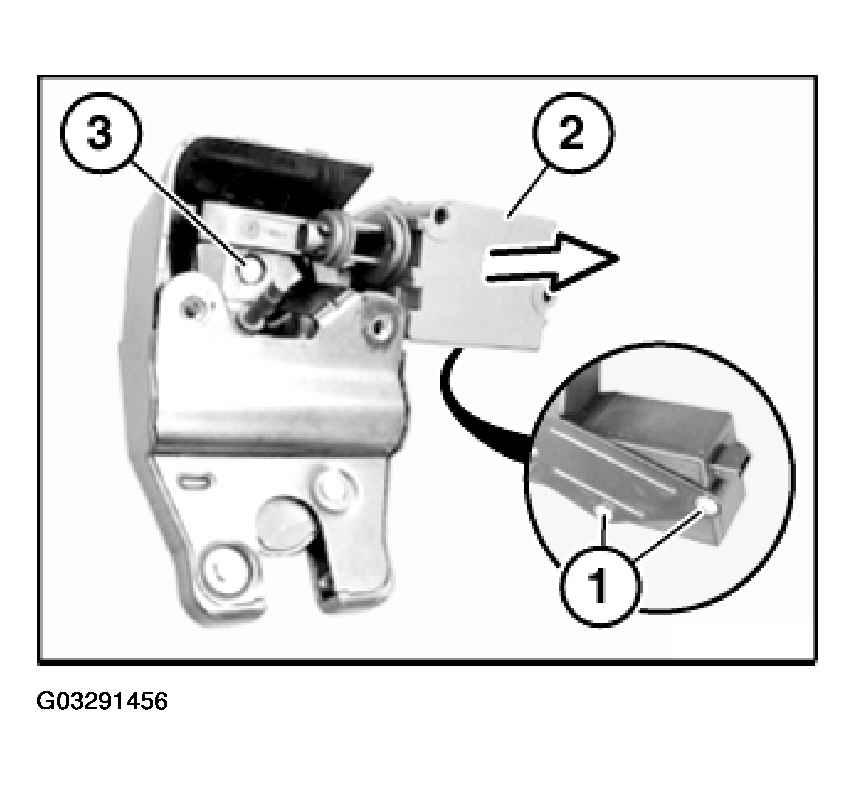

Fig 3: Detaching Servodrive

G03291456

Courtesy of BMW OF NORTH AMERICA, INC.

Detach servodrive (2) from rear lid lock upper section (3) in direction of arrow.
