51 49 005 Removing and installing/replacing trim for lower rear lid

Necessary preliminary tasks:

• Open rear lid.

Version With Automatic Tailgate Actuation:

If necessary, remove switch for automatic rear lid actuation. Refer to 61 31 084 REMOVING AND INSTALLING/REPLACING SWITCH FOR AUTOMATIC REAR LID ACTUATION .

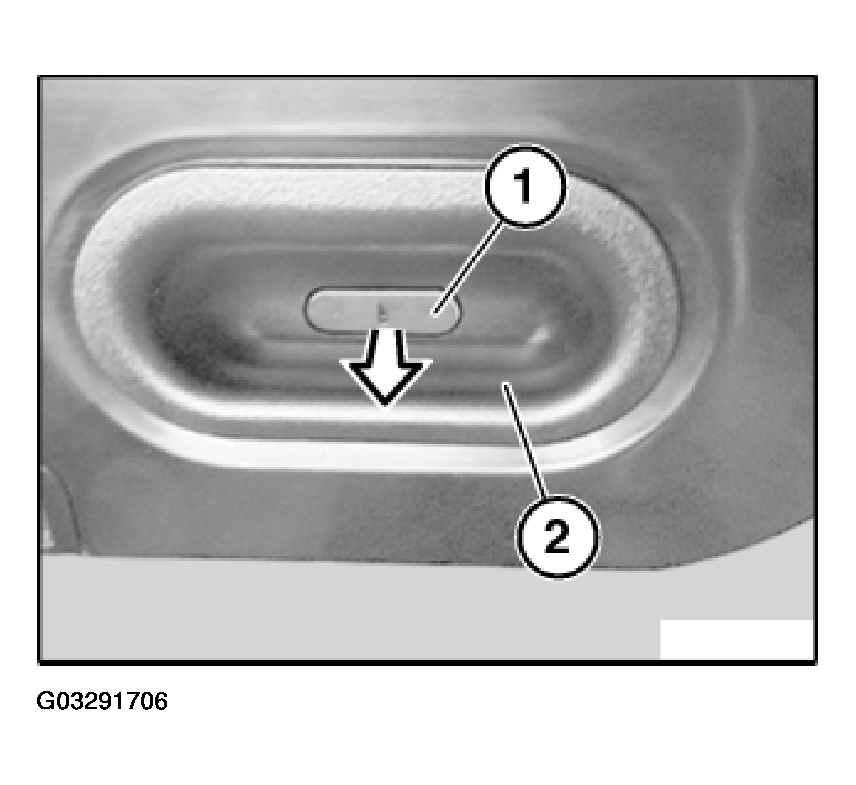

Lever out cover (1) and remove from recessed handle (2).

Fig 1: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

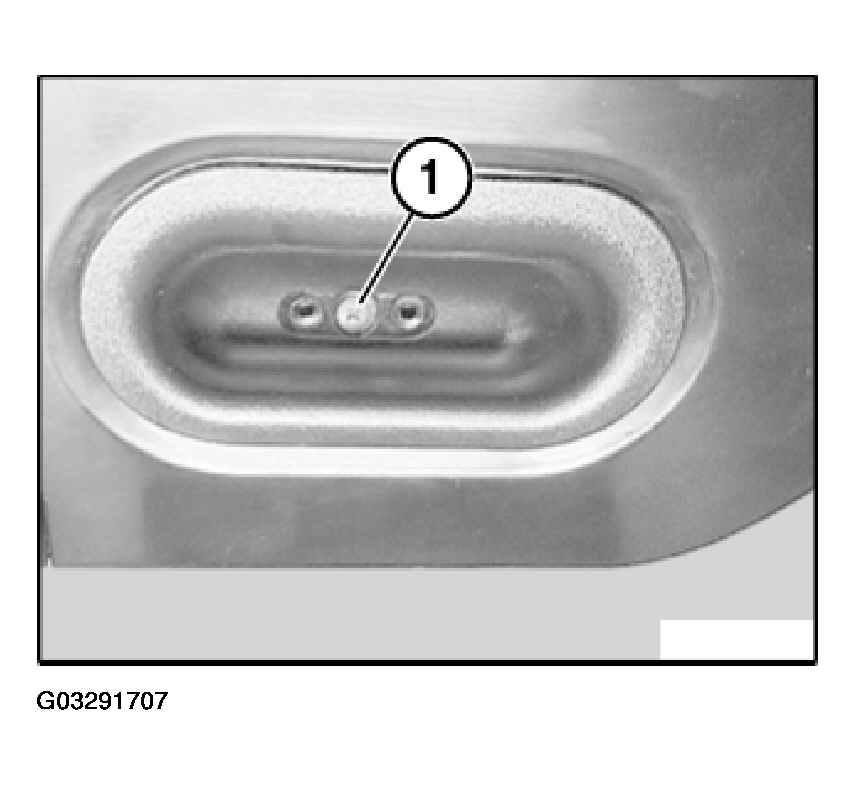

Release screw (1).

Fig 2: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Version With Manual Rear Lid Unlocking:

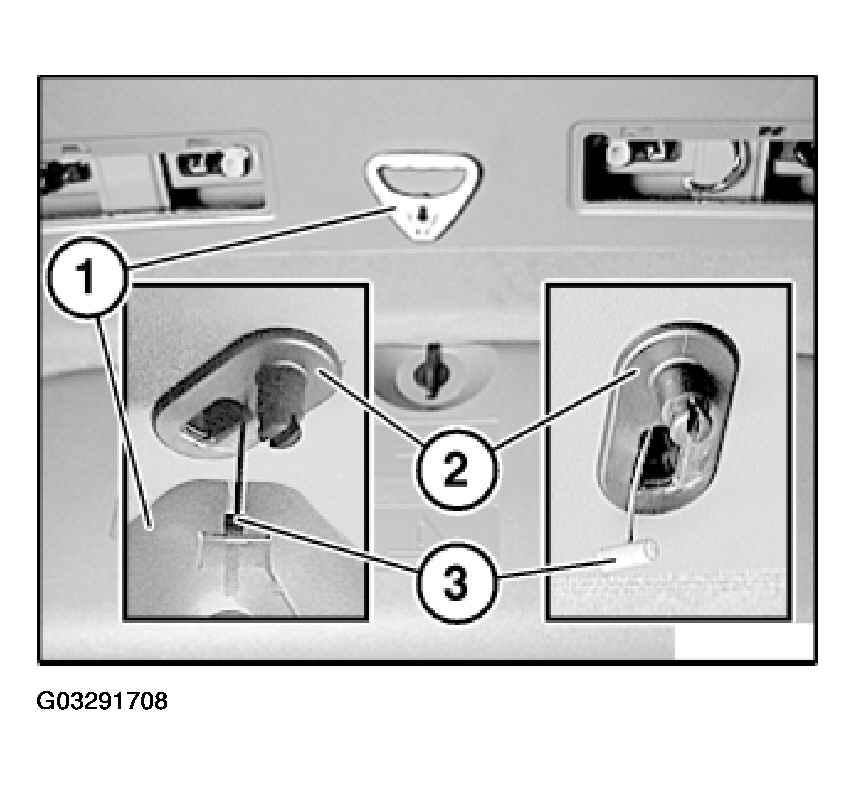

Detach handle (1) from clip (2).

Fig 3: Disconnecting Bowden Cable From Handle

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect Bowden cable (3) from handle (1).

Installation:

Guide Bowden cable (3) through clip (2) and connect correctly in handle (1).

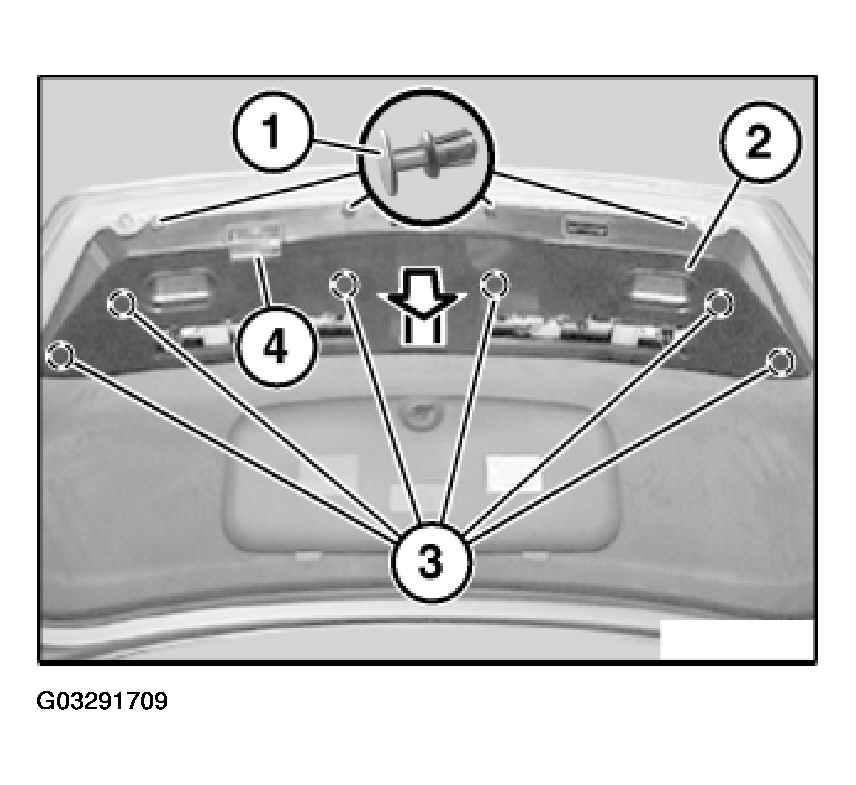

Release expansion rivets (1).

Fig 4: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out catches (3) and detach trim (2) in direction of arrow.

Disconnect plug connection under luggage compartment light (4) and remove trim (2).

Installation:

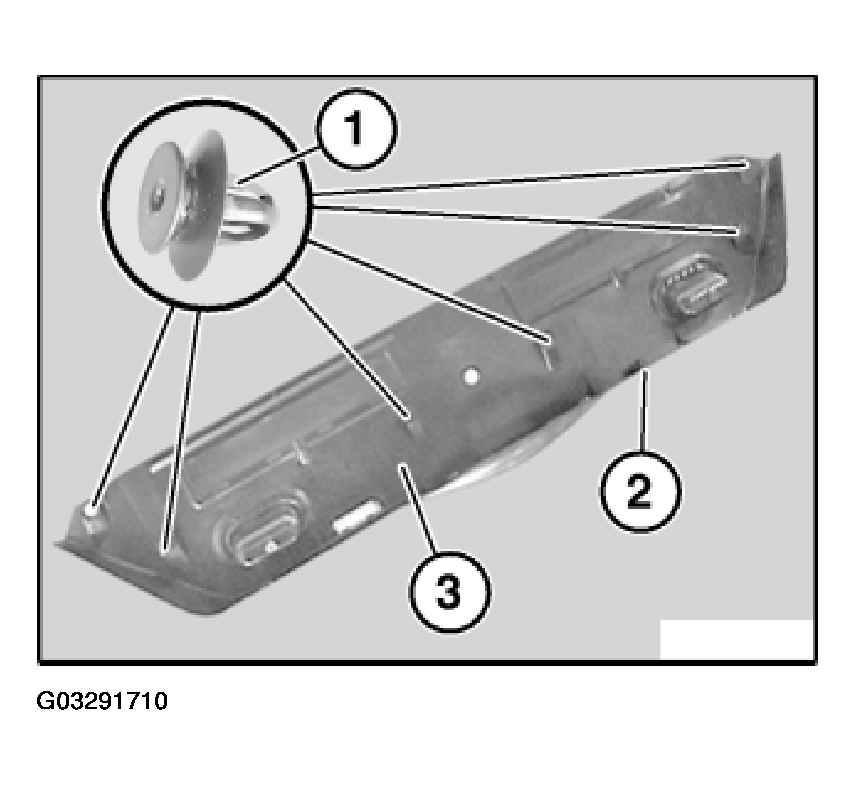

If necessary, replace faulty clips (1) on trim (3) for rear lid at bottom.

Fig 5: Locating Clips

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• Remove luggage compartment light, refer to 63 31 085 REMOVING AND INSTALLING/REPLACING LUGGAGE COMPARTMENT LAMP (ON REAR LID)

If necessary, remove frame (2) of switch for automatic rear lid operation or cover for rear lid button.

If necessary, replace clip for handle of manual rear lid unlocking.
