51 24 004 Adjusting rear lid lock (lower section of rear lid lock): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Rear lid must be correctly adjusted before adjustment of Soft Close Automatic.

If necessary adjust rear lid to fit. Refer to Height Adjustment Of Trunk Lid: .

For ideal adjustment, refer to Height Adjustment Of Trunk Lid: .

IMPORTANT: Once plug connection to servomotor has been disconnected, rear lid can only be opened with central key (1).
Button (2) then does not function.

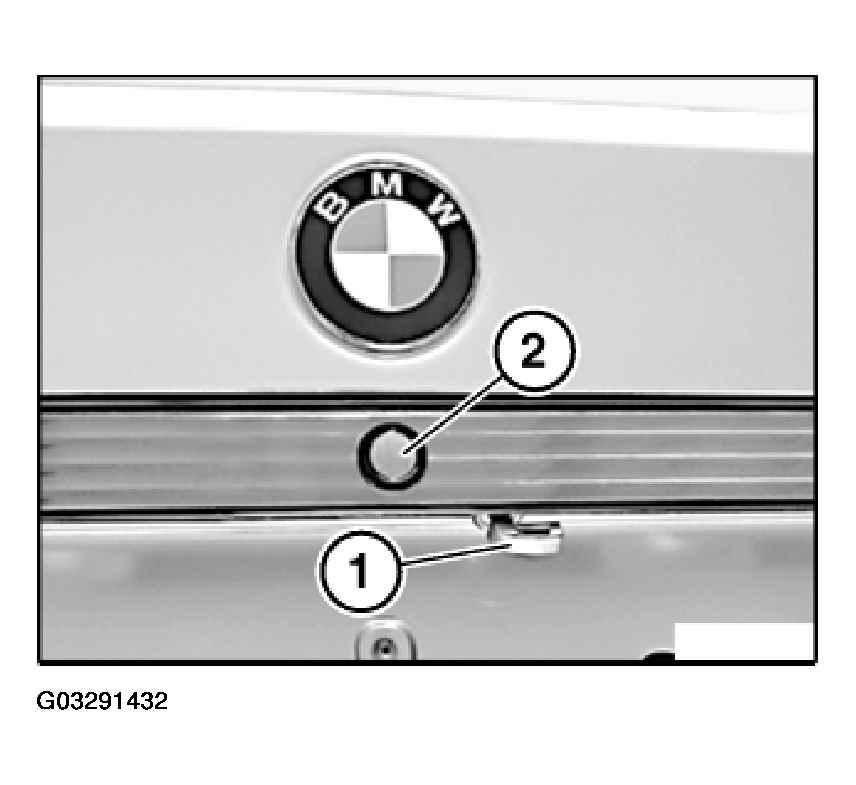

Insert central key (1) in lock cylinder.

Fig 1: Inserting Central Key In Lock Cylinder

G03291432

Courtesy of BMW OF NORTH AMERICA, INC.

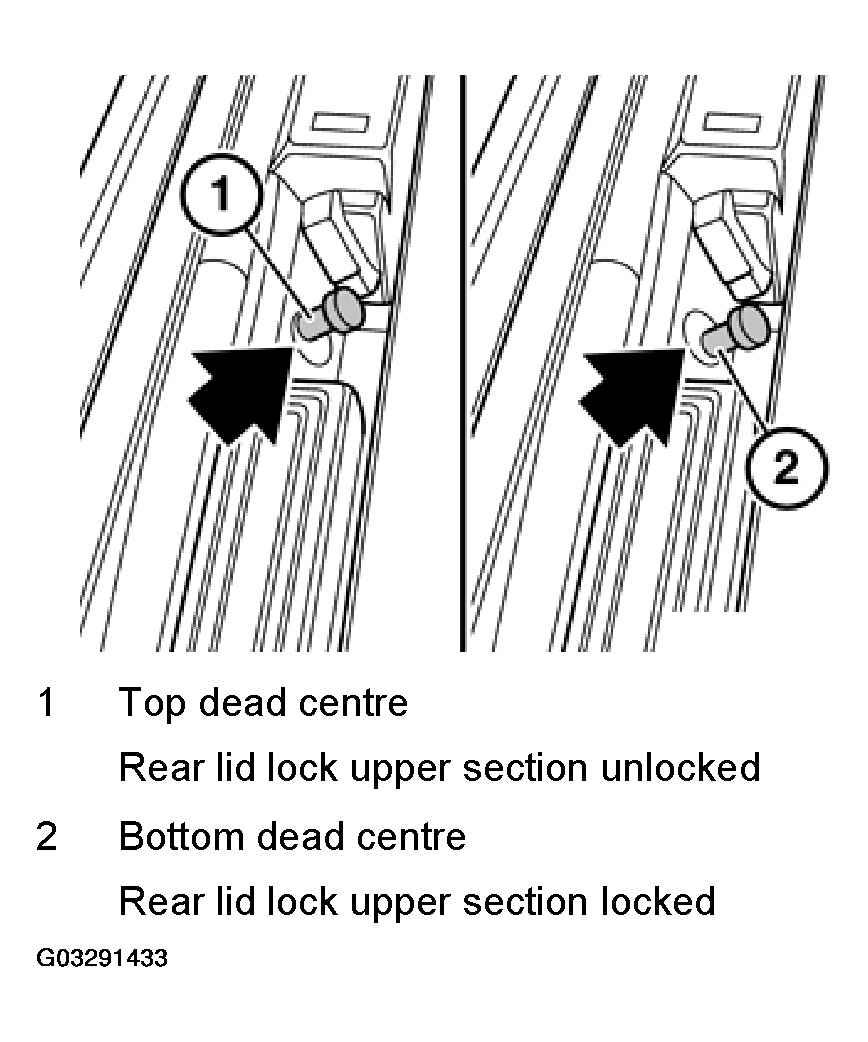

NOTE: This illustration displays the side view of the eccentric pin in the lower section of the trunk lid lock.

Fig 2: View Of Eccentric Pin In Lower Section Of Trunk Lid Lock

G03291433

Courtesy of BMW OF NORTH AMERICA, INC.

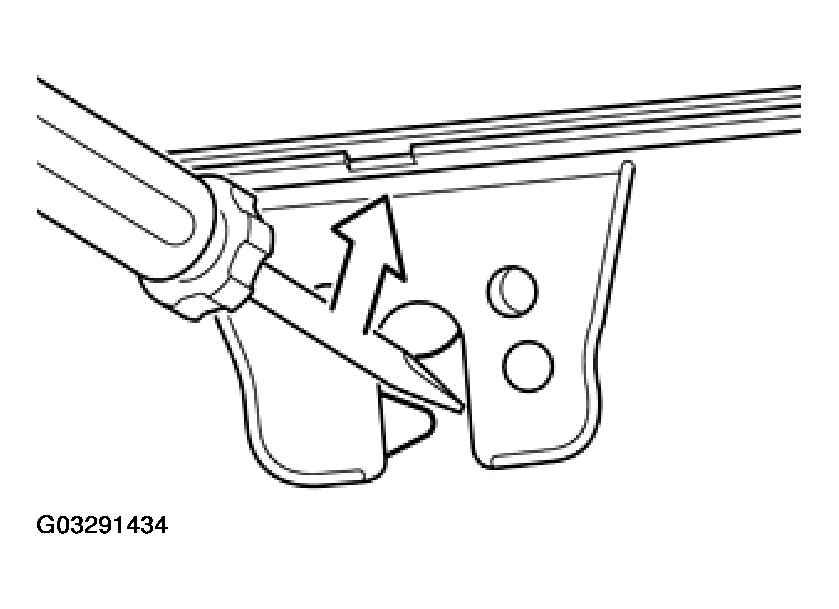

Lock rear lid lock upper section with a screwdriver.

Fig 3: Locking Rear Lid Lock

G03291434

Courtesy of BMW OF NORTH AMERICA, INC.

Eccentric pin of rear lid lock lower section must now be at bottom dead centre.

Open flap in luggage compartment panel on right. Refer to 51 47 172 REMOVING AND INSTALLING / REPLACING FLAP IN LUGGAGE COMPARTMENT TRIM, LEFT OR RIGHT .

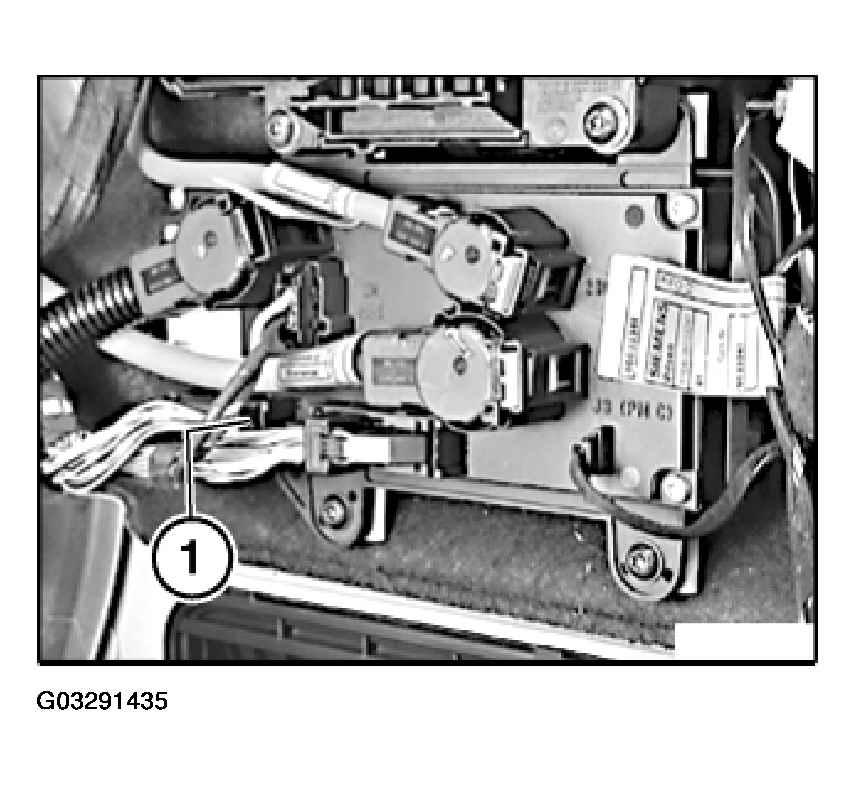

Unfasten plug connection (1) and disconnect.

Fig 4: Disconnecting Plug Connection

G03291435

Courtesy of BMW OF NORTH AMERICA, INC.

The eccentric pin now remains at bottom dead centre even after the rear lid lock upper section has been unlocked.

Turn central key in lock cylinder to right, thereby unlocking rear lid lock upper section.

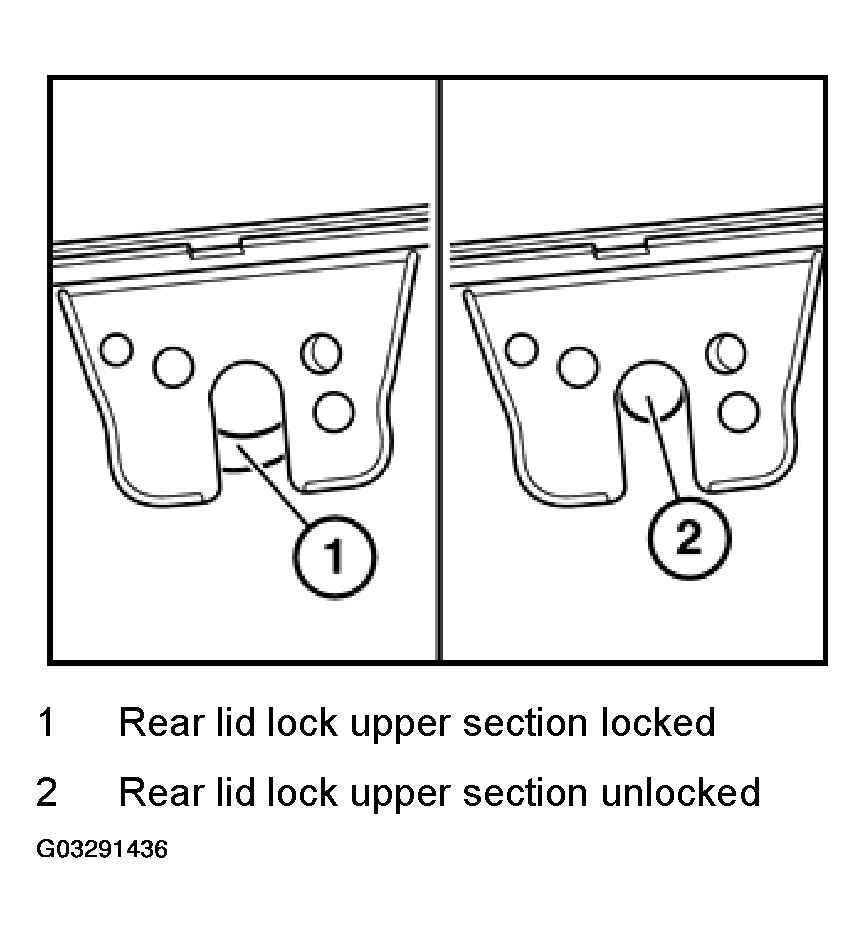

Fig 5: Identifying Lock Positions

G03291436

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Rear lid lock upper section must be unlocked before each closing of rear lid (risk of damage).
