Height Adjustment Of Trunk Lid:
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

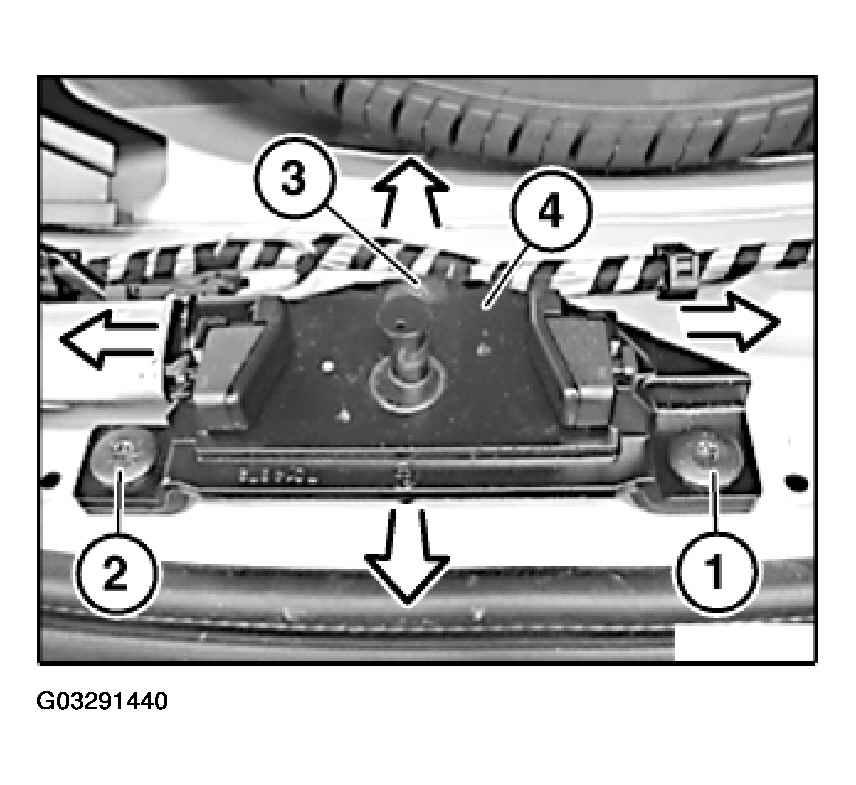

For purposes of clarity, shown here without trim for "tail panel at top".
- Slacken screws (1 to 3)
- Move rear lid lock lower section fully upwards
- Tighten down screws (1 to 3) again
- Close rear lid
- Measure and note down gap dimensions
- Open rear lid
- Slacken screws (1 to 3) and lower rear lid lock lower section by difference from desired dimensions
- Tighten down screws (1 to 3)
- Check adjustment and repeat if necessary
- Note down adjusted gap dimensions
Tightening torque 51 24 6AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .
