51 13... Removing and installing/replacing trim on front grille centre section

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove decorative frame from front grille, refer to 51 13 007 REMOVING AND INSTALLING/REPLACING TRIM RING FOR FRONT GRILLE CENTRE SECTION

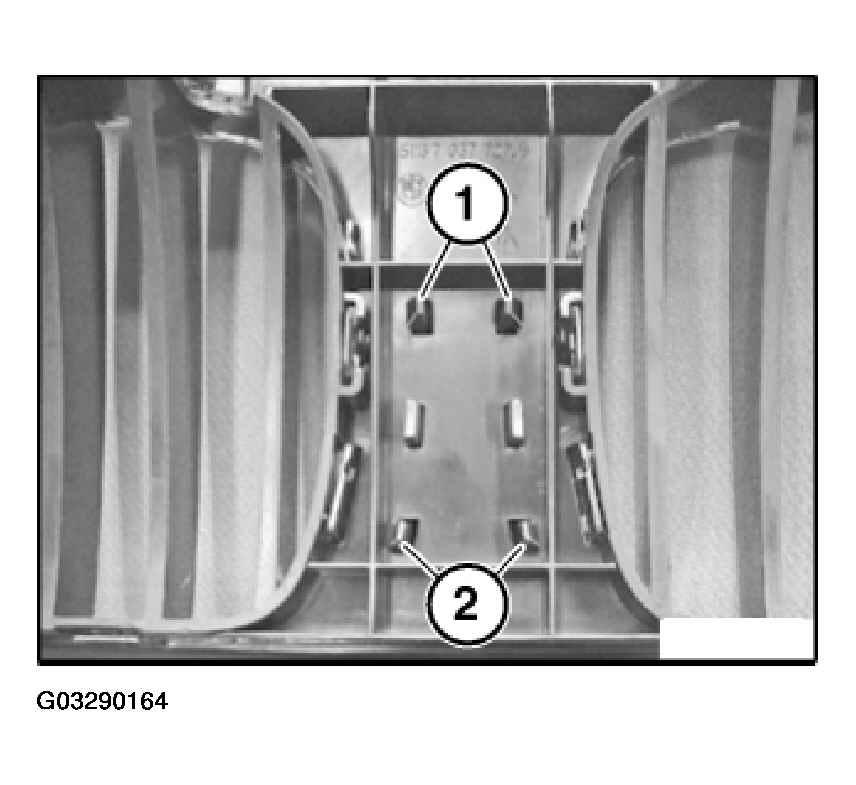

Release catches (1 and 2) and remove trim.

Fig 1: Removing Trim

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

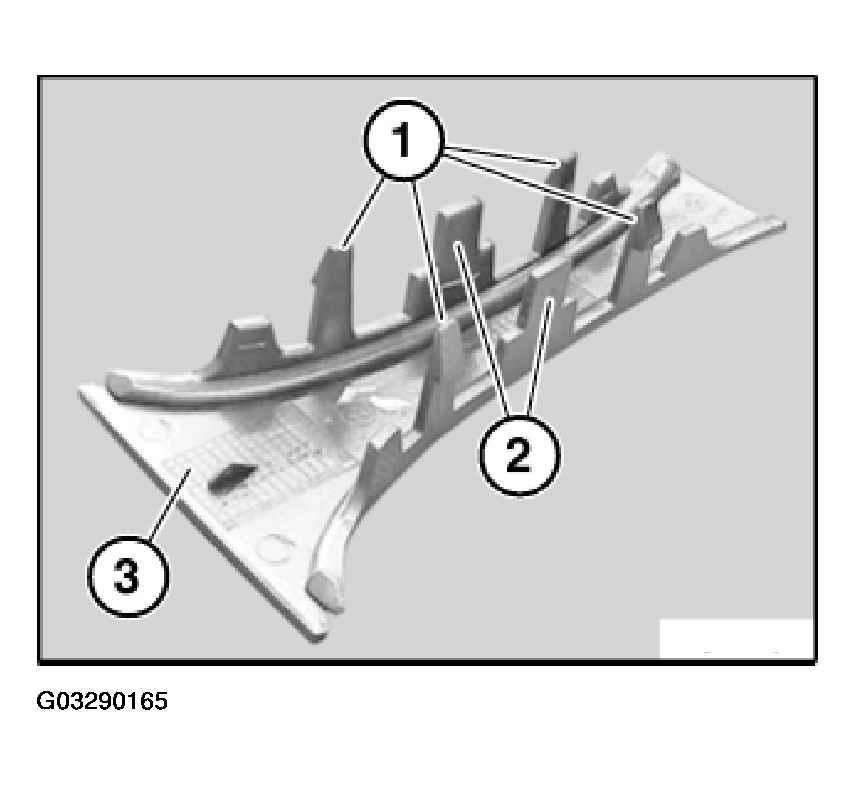

Catches (1) and guides (2) on trim (3) must not be damaged.

Fig 2: Identifying Catches And Guides On Trim

Courtesy of BMW OF NORTH AMERICA, INC.
