51 13 007 Removing and installing/replacing trim ring for front grille centre section

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front grille centre section, refer to 51 13 000 REMOVING AND INSTALLING/REPLACING FRONT GRILLE CENTRE SECTION

Lever out catches (1 and 2) and remove trim ring.

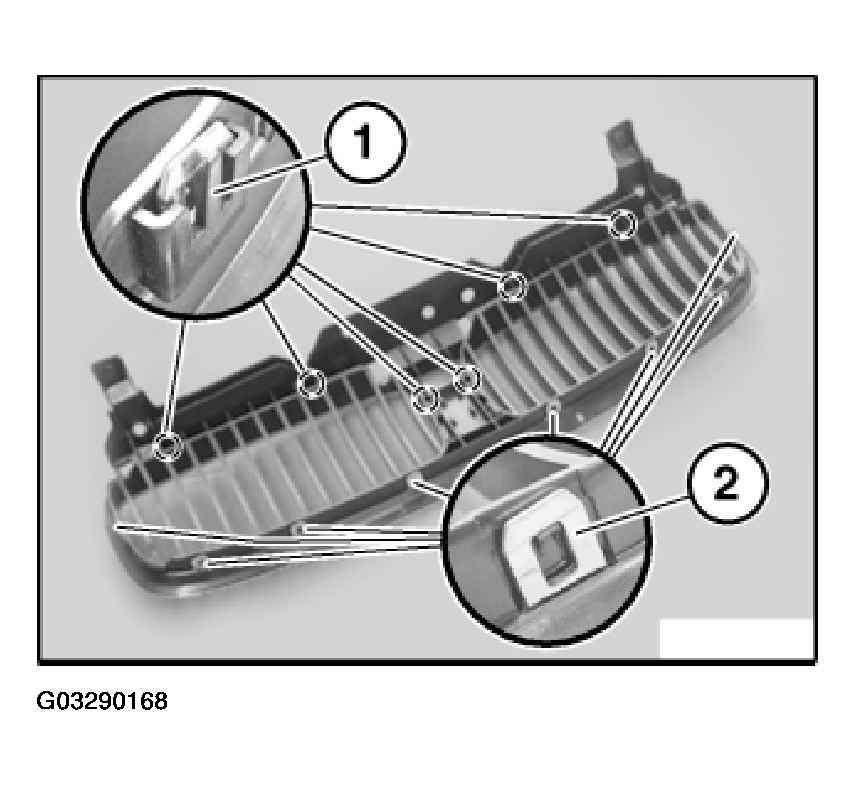

Fig 1: Removing Trim Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) and guides on trim ring (2) must not be damaged.

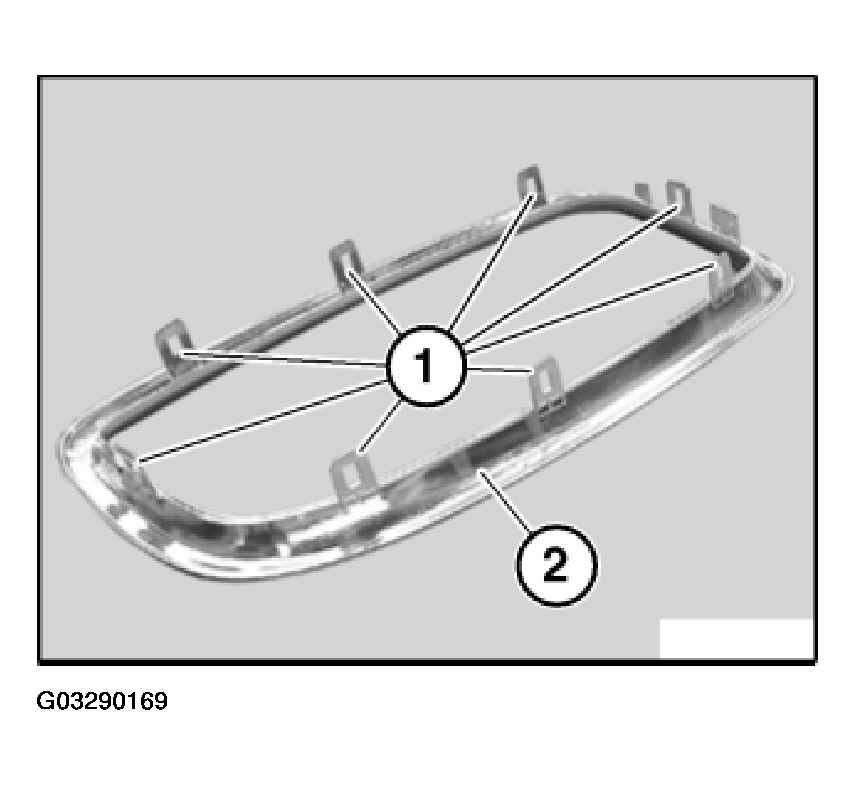

Fig 2: Identifying Catches And Guides On Trim Ring

Courtesy of BMW OF NORTH AMERICA, INC.
