51 13 400 Removing and installing/replacing rear centre trim (up to 03/2005): Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

If necessary, remove number/license plate
Remove trim for rear lid at bottom, refer to 51 49 005 REMOVING AND INSTALLING/REPLACING TRIM FOR LOWER REAR LID
Remove rear light from centre of rear lid, refer to 63 21 186 REMOVING AND INSTALLING/REPLACING REAR LIGHT (ON CENTRE OF REAR LID)

NOTE: Detaching rear centre trim is shown on the left side; proceed in same way for detaching on the right side.

Disconnect plug connection (1).

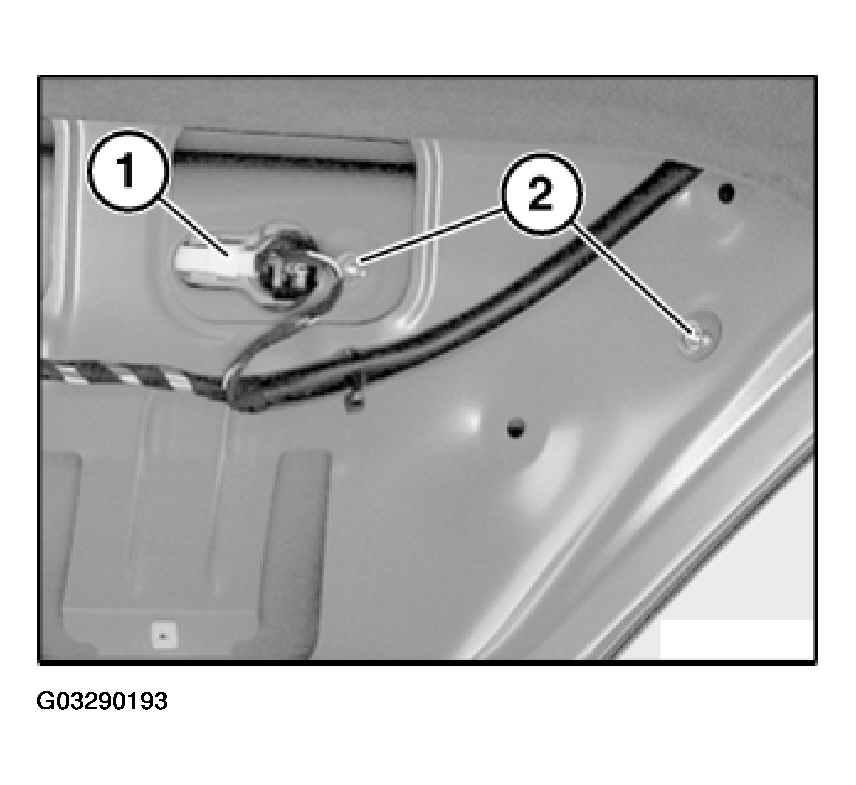

Fig 1: Disconnecting Plug Connection

G03290193

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Tightening torque 51 13 6AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Lever out catches (1)

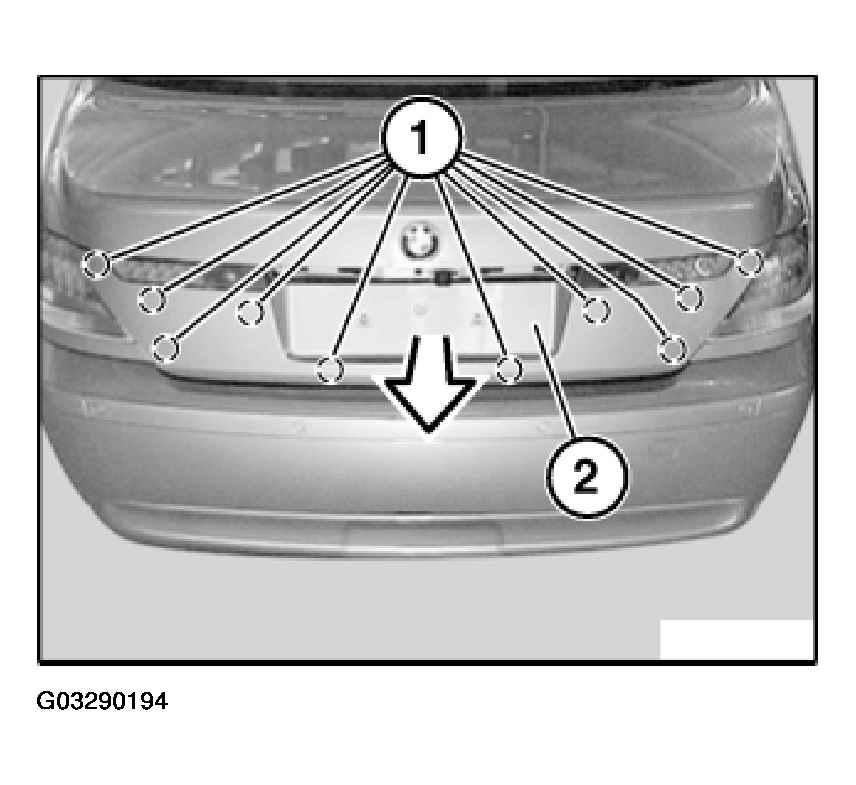

Fig 2: Removing Complete Rear Centre Trim

G03290194

Courtesy of BMW OF NORTH AMERICA, INC.

Remove complete rear centre trim (2) in direction of arrow.

Installation:

Make sure two-part seal (1) is correctly seated.

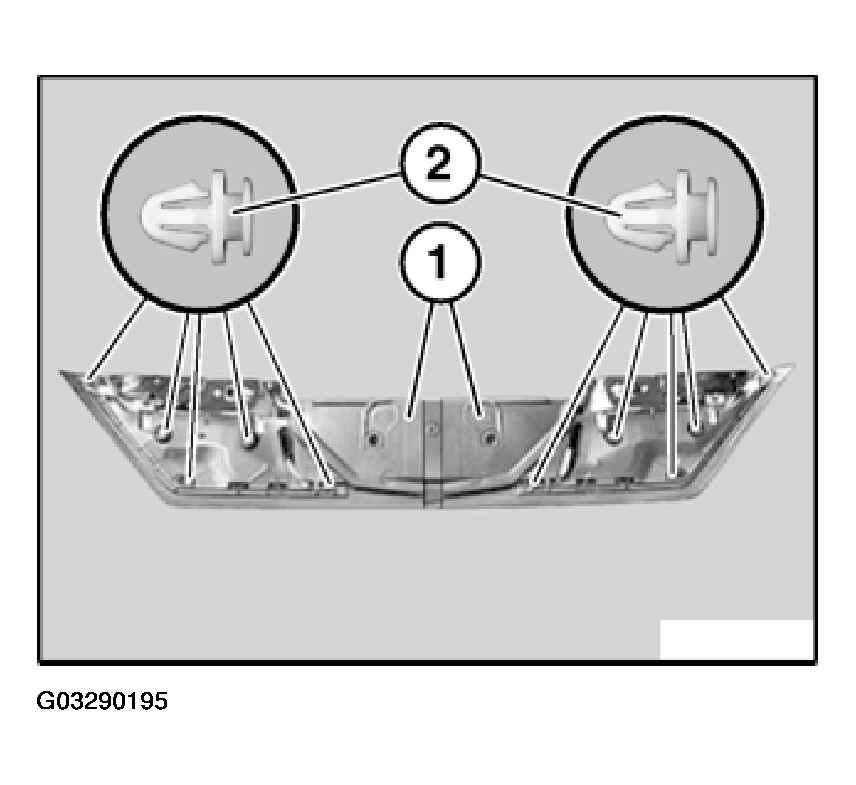

Fig 3: Replacing Faulty Clips

G03290195

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, replace faulty clips (2).
