51 12 156 Removing and installing rear bumper trim: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

Necessary preliminary tasks:

Remove trim on bumper trim, refer to 51 12 080 REMOVING AND INSTALLING/REPLACING TRIM ON BUMPER TRIM
Remove trim on rear light, refer to 51 13 440 REMOVING AND INSTALLING/REPLACING TRIM ON LEFT OR RIGHT REAR LIGHT

Build date up to 03/2005 only:

Remove middle body molding, refer to 51 12 432 Replacing central body molding on rear bumper

Release screws (1 and 2) on left/right.

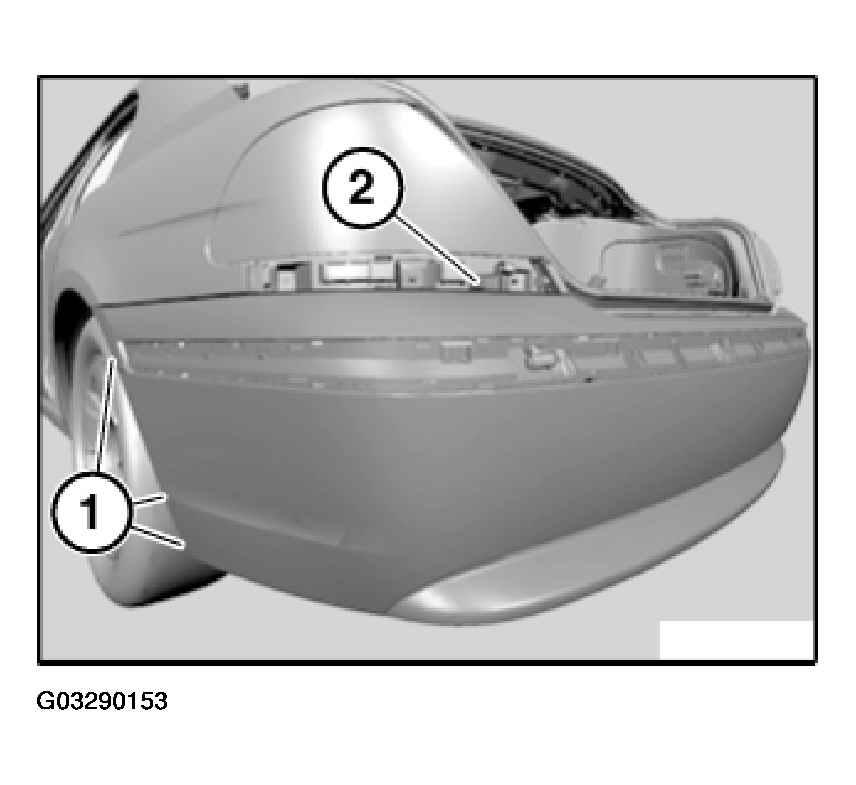

Fig 1: Releasing Screws On Left/Right

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Build date up to 03/2005:

Release screws (1).

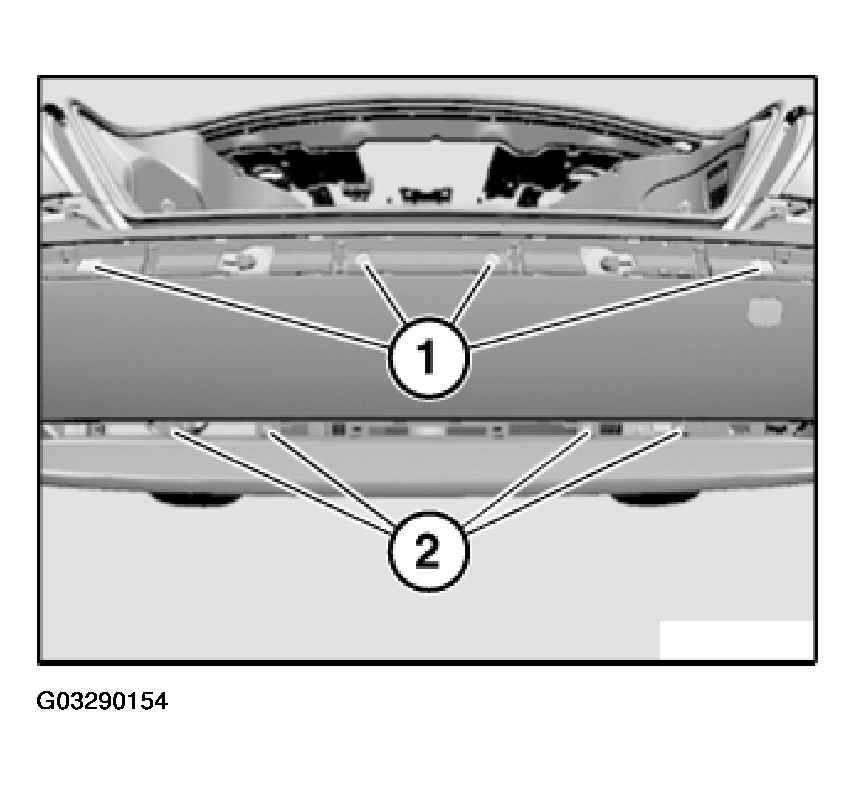

Fig 2: Releasing Screws

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Bumper trim (1) is locked at sides in mounting holder and must be unlocked for removal purposes (risk of damage).
