51 13 440 Removing and installing/replacing trim on left or right rear light

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 317

IMPORTANT: Stick fabric adhesive tape (1) onto trim (3) to below guide (2) (risk of damage).

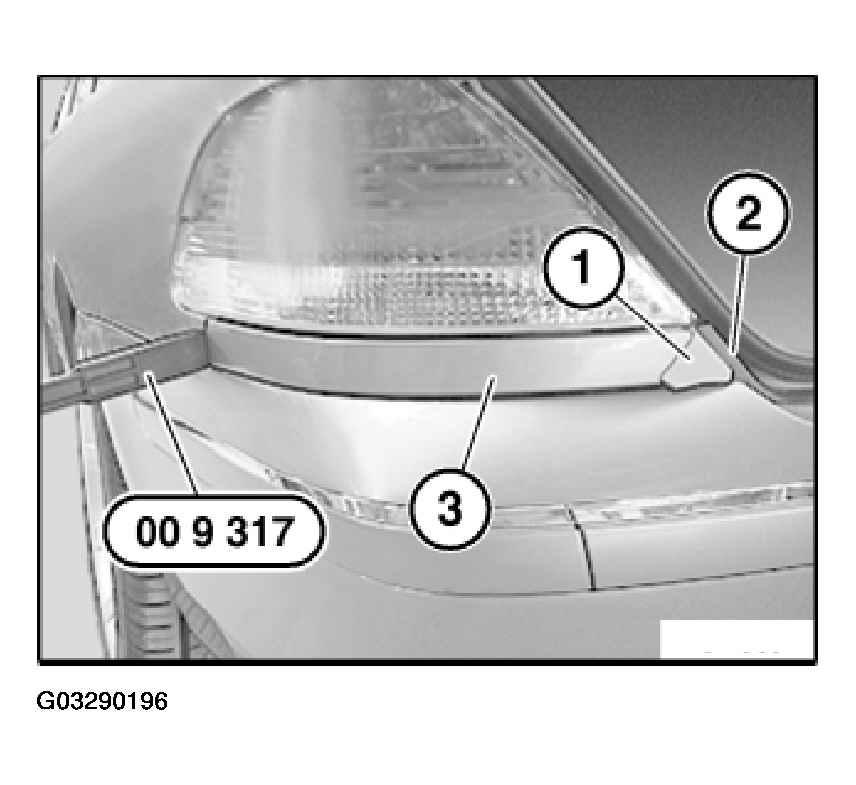

Fig 1: Snapping Out Trim With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Snap out trim (3) with special tool 00 9 317 sideways.

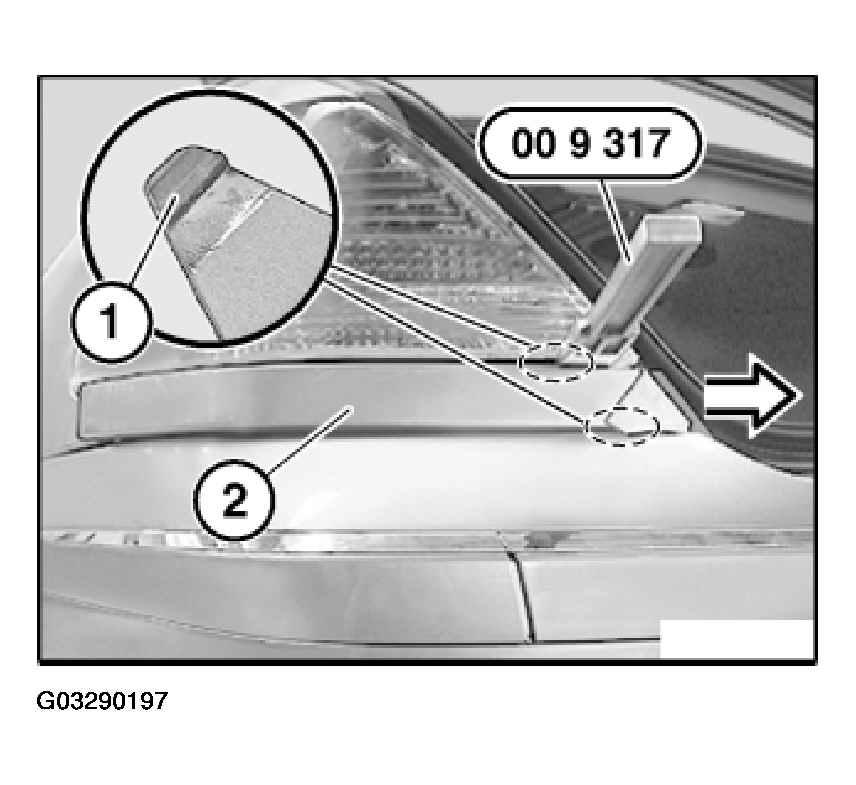

Snap out upper catch (1) with special tool 00 9 317.

Fig 2: Snapping Out Upper Catch With Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Slide trim (2) in direction of arrow and thereby release catch (1).

Installation:

Catches (1) and guides (2) on trim (3) must not be damaged.

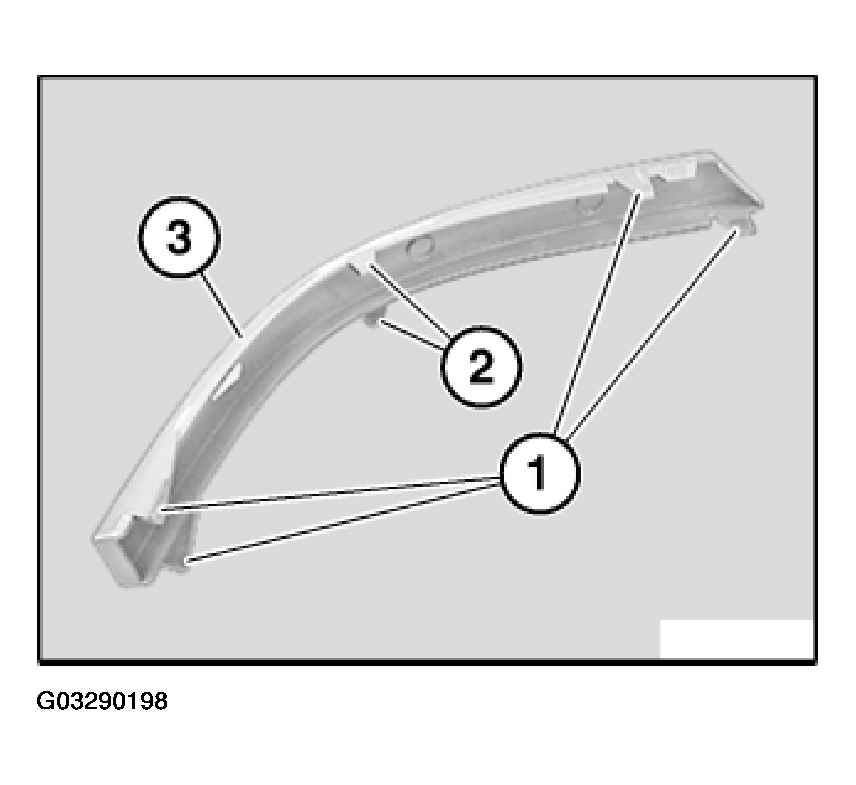

Fig 3: Identifying Catches And Guides On Trim
