51 16... Removing and installing / replacing guide rail for roller sun blind of left or right rear door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove inner trim on window frame, refer to 51 16... REMOVING AND INSTALLING/REPLACING INNER TRIM ON WINDOW FRAME (ROLLER SUN BLIND) OF LEFT OR RIGHT REAR DOOR
Remove front chest strip (chrome strip) on rear door, refer to 51 42 400 REMOVING AND INSTALLING/REPLACING CHEST STRIP (CHROME STRIP) ON LEFT OR RIGHT REAR DOOR (WITH ROLLER SUN BLIND)

Release screws (1).

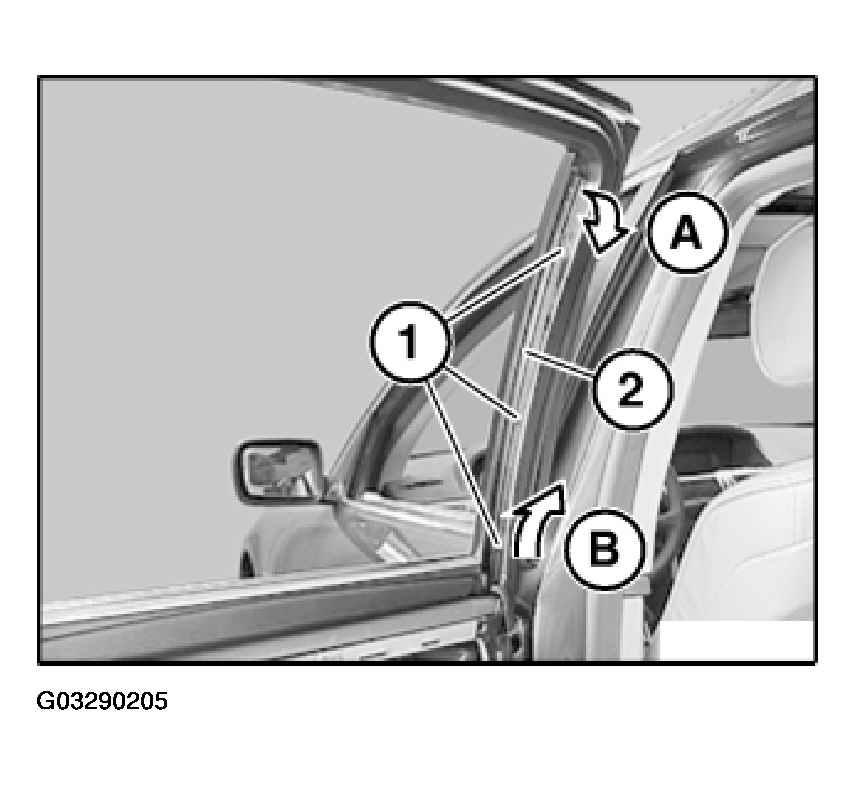

Fig 1: Releasing Screws

G03290205

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully release catch (1).

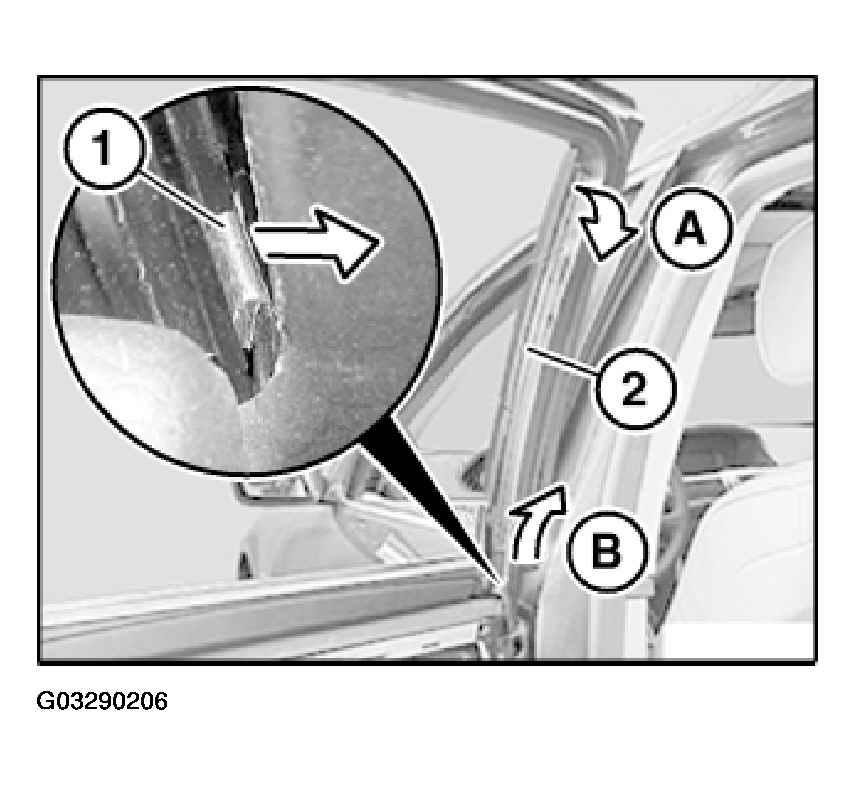

Fig 2: Removing Guide Rail At Top

G03290206

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out guide rail (2) at top (A) and pull out in direction of arrow (B).

Installation:

Make sure guide rail (2) engages correctly in catch (1).

Installation:

If necessary, replace faulty spacer (1).

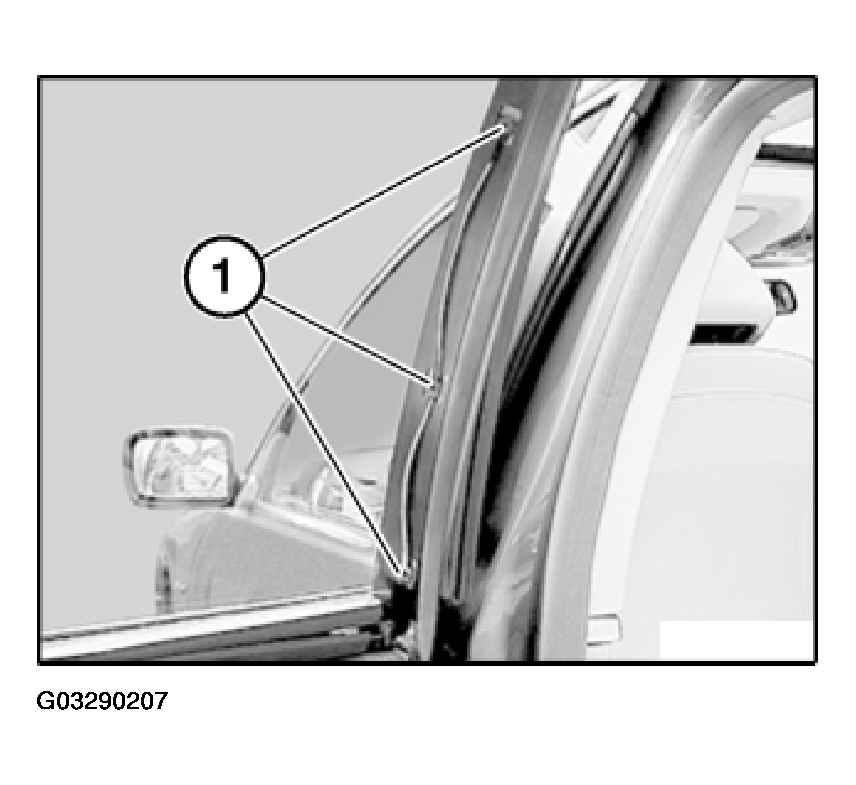

Fig 3: Replacing Faulty Spacer

G03290207

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Guide rail (2) must not be damaged at the bottom otherwise the carriage will break.

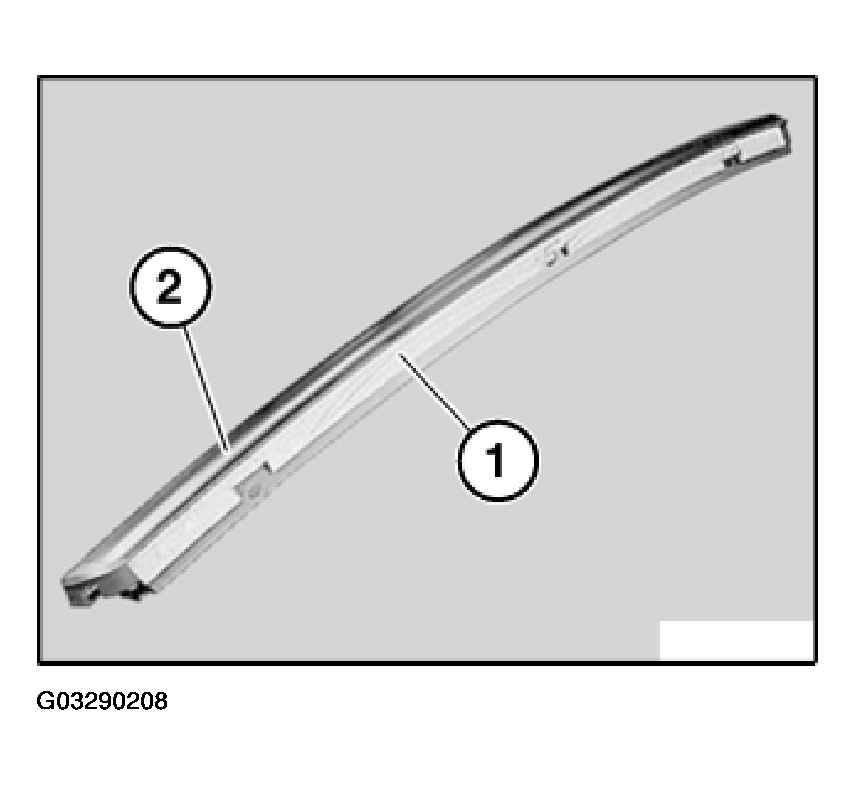

Fig 4: Identifying Guide Rail

G03290208

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Insert guide rail correctly in brush cable (1) and guide (2).

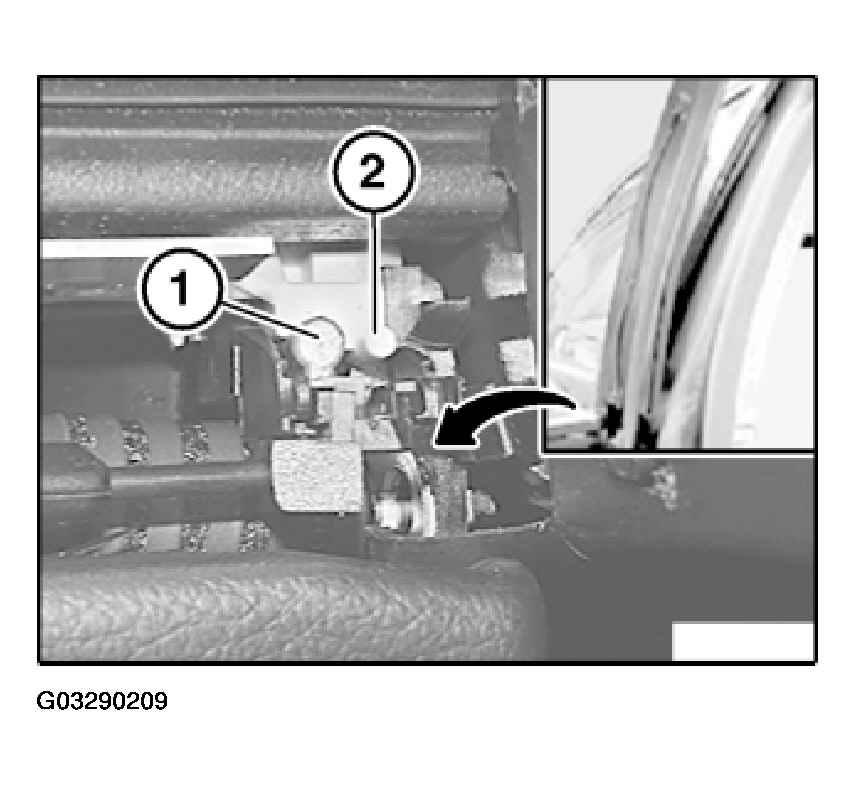

Fig 5: Inserting Guide Rail

G03290209

Courtesy of BMW OF NORTH AMERICA, INC.
