51 16... Removing and installing/replacing inner trim on window frame (roller sun blind) of left or right rear door

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Unclip trim (1) and pull out in direction of arrow from door trim (2).

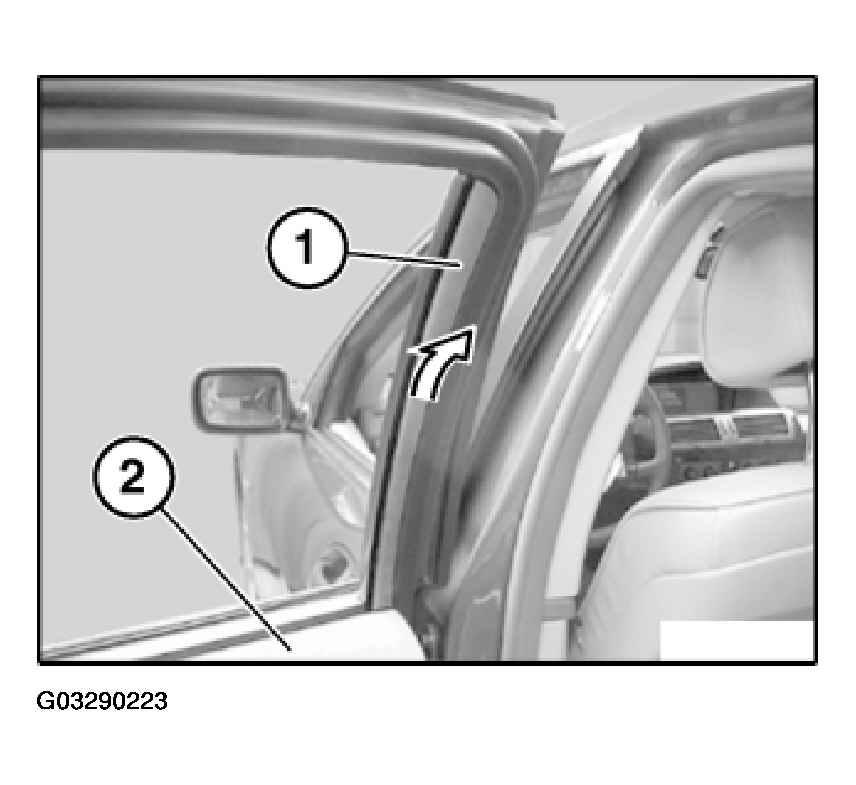

Fig 1: Removing Trim
G03290223Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locking rails (1) of trim (2) must not be damaged.

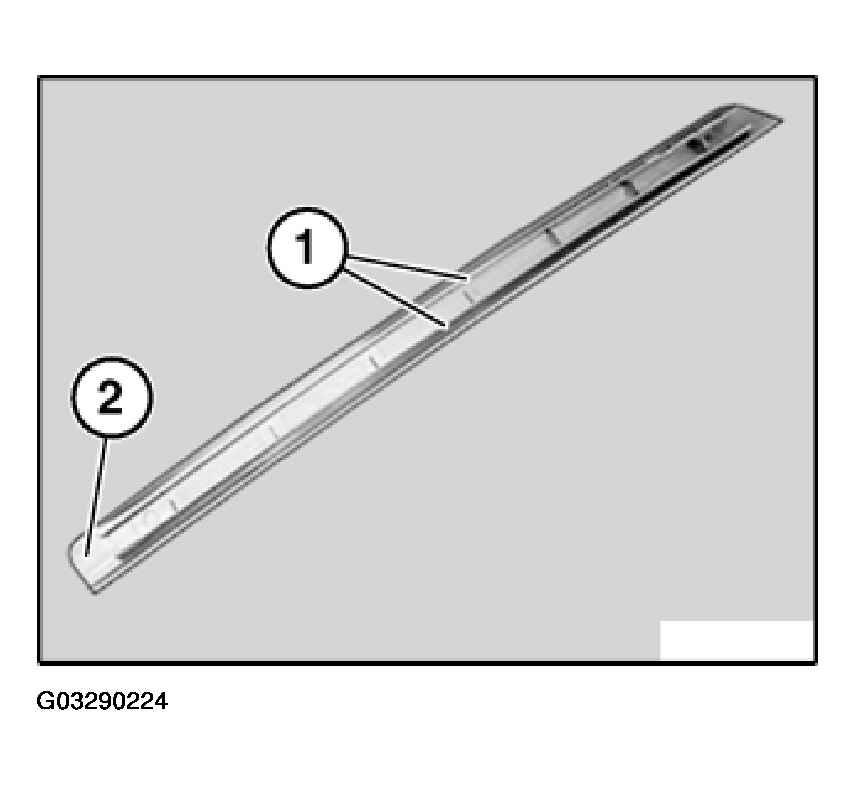

Fig 2: Identifying Locking Rails Of Trim
G03290224Courtesy of BMW OF NORTH AMERICA, INC.
