51 16 188 Replacing base for centre console on storage tray

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove centre console carrier section, refer to 51 16 180 Removing and installing centre console carrier section

IMPORTANT: Set down centre armrest on a suitable surface.

Release screws (1) on left/right.

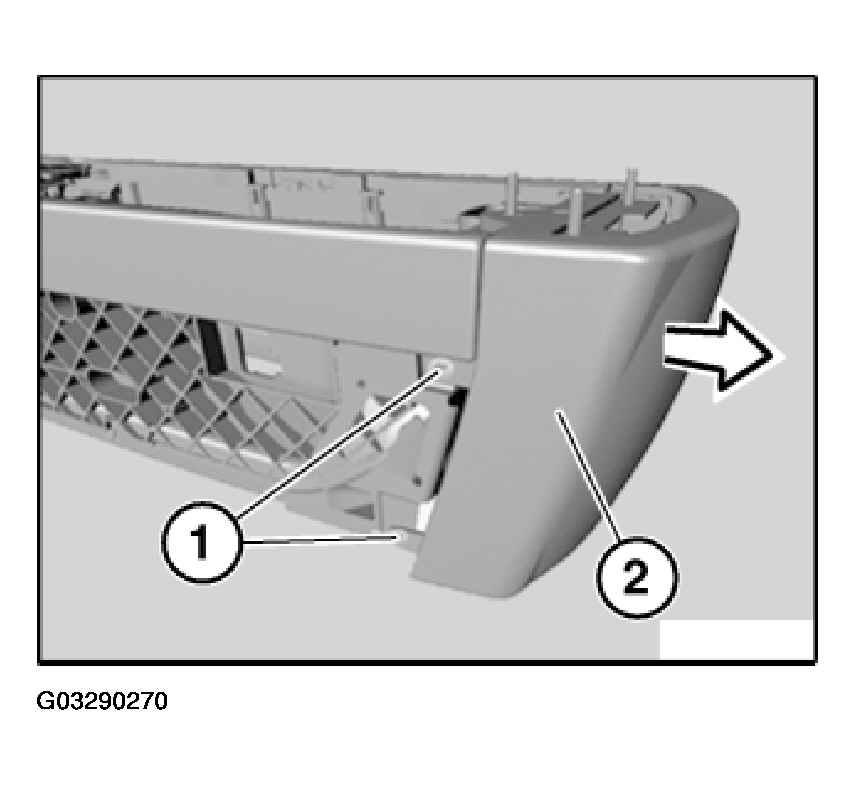

Fig 1: Removing Trim

G03290270

Courtesy of BMW OF NORTH AMERICA, INC.

Remove trim (2) in direction of arrow.

Release screws (1).

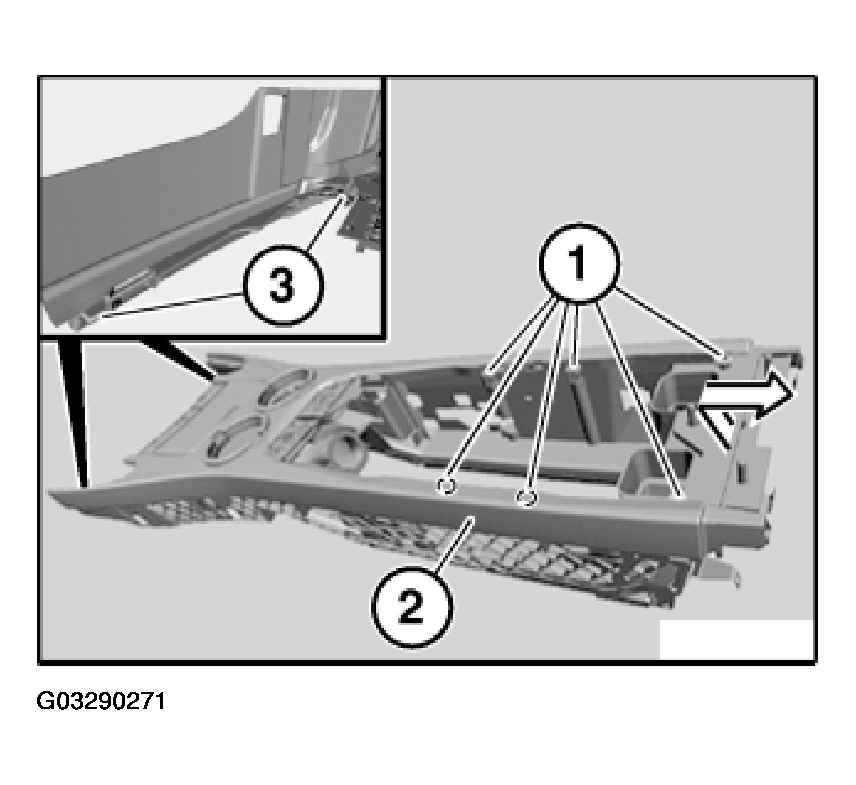

Fig 2: Removing Base

G03290271

Courtesy of BMW OF NORTH AMERICA, INC.

Raise base (2) in direction of arrow and pull off.

Installation:

Make sure base (2) is correctly seated in guides (3).

Unlock plug housing (1) and feed out cable.

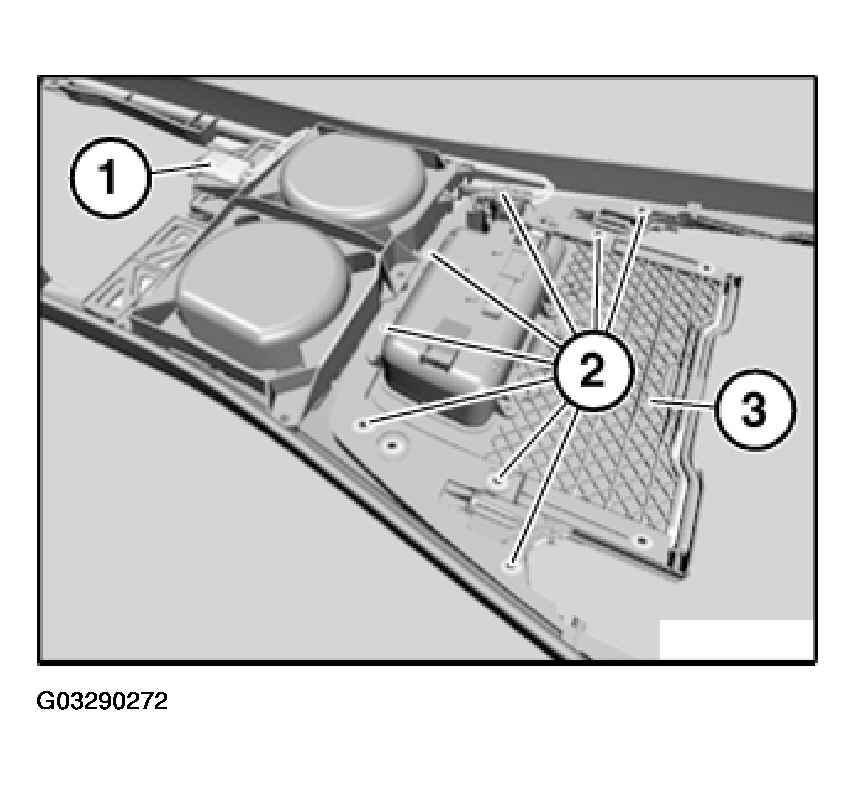

Fig 3: Removing Centre Console Function Carrier

G03290272

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (2).

Remove centre console function carrier (3).

Release screws (1).

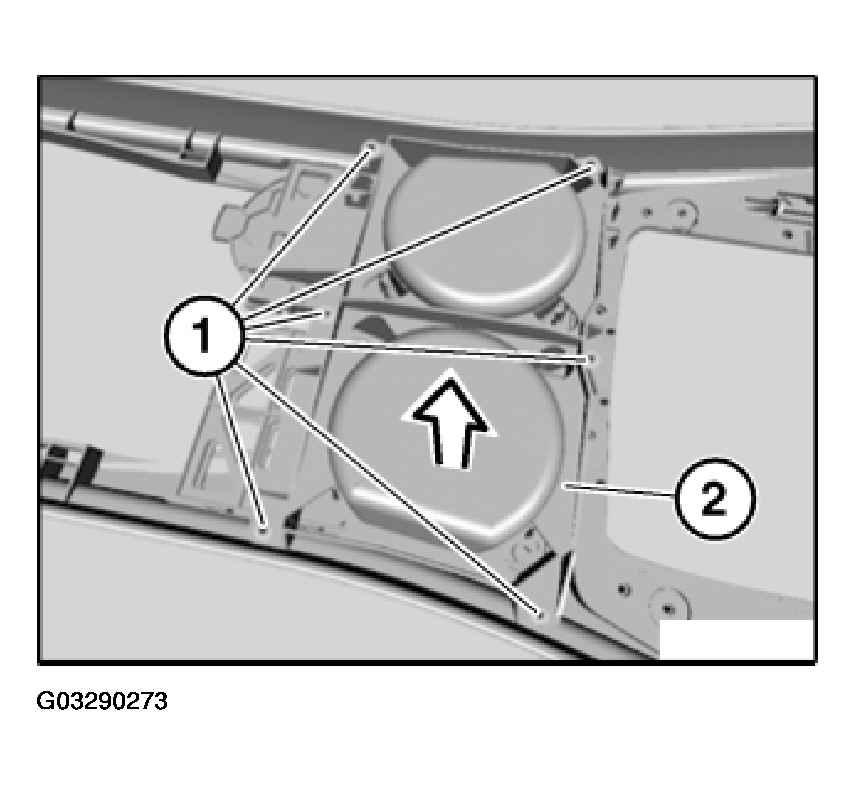

Fig 4: Removing Drinks Holder

G03290273

Courtesy of BMW OF NORTH AMERICA, INC.

Remove drinks holder (2) in direction of arrow.
