51 16 180 Removing and installing centre console carrier section

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove centre armrest (front). Refer to 51 16 195 REMOVING AND INSTALLING CENTRE ARMREST (FRONT) .
Remove side decorative trims, refer to 51 16 175 REMOVING AND INSTALLING / REPLACING DECORATIVE TRIMS (ALL) ON FUNCTION CARRIER

Release screws (1) on left/right.

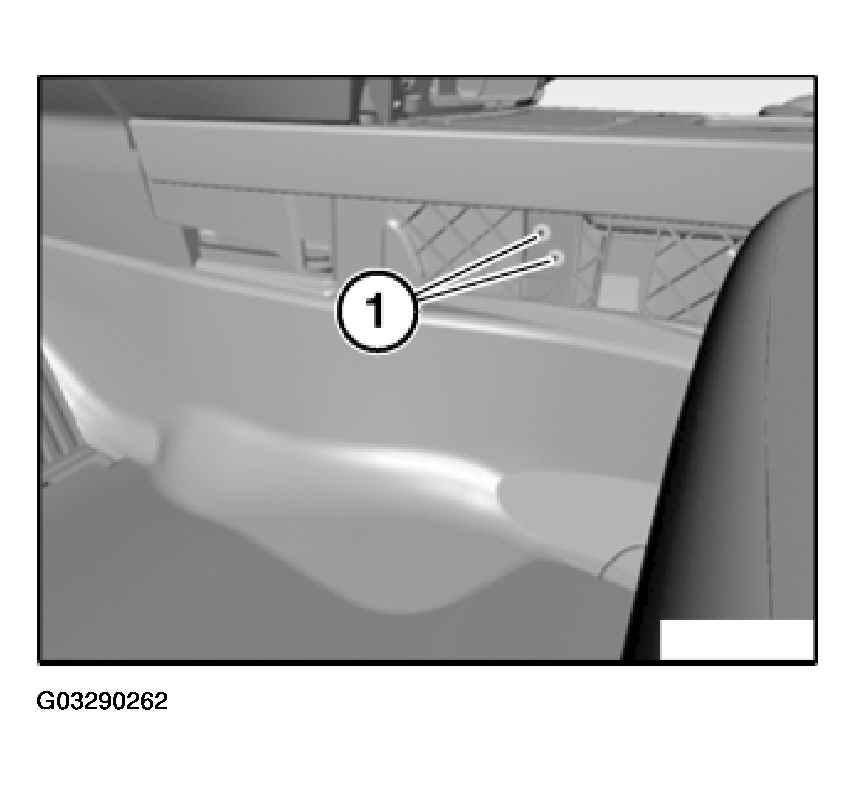

Fig 1: Releasing Screws

G03290262

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten plug connection (1) and disconnect.

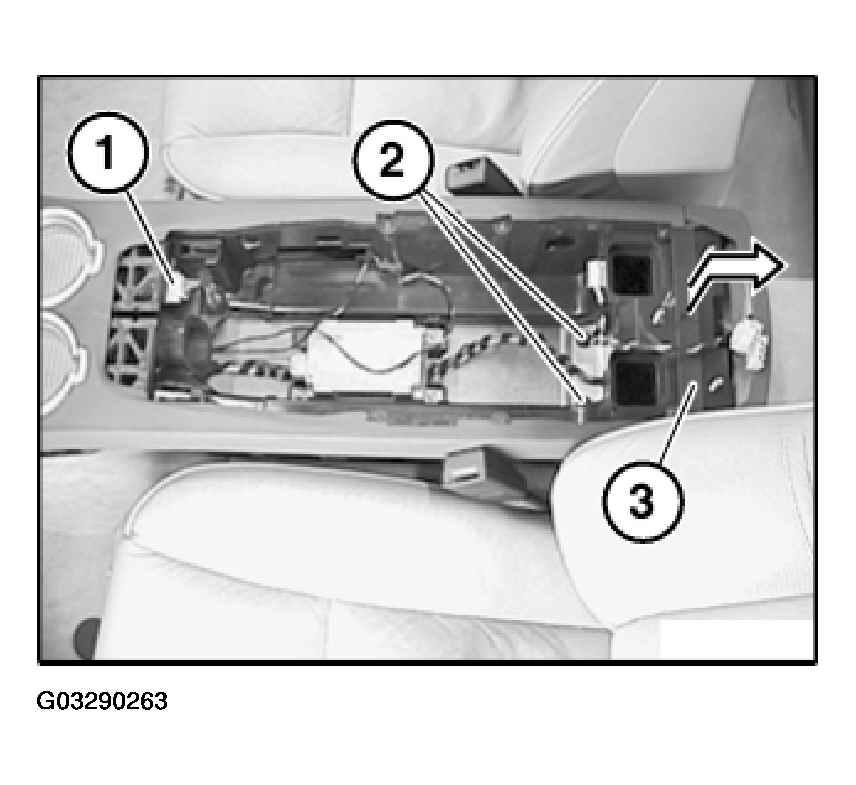

Fig 2: Removing Center Console Carrier Section

G03290263

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (2).

Raise centre console carrier section (3) in direction of arrow and pull out.

Installation:

Make sure cables are correctly routed.

Installation:

Make sure air ducts (2) are correctly seated on centre console carrier section (1).

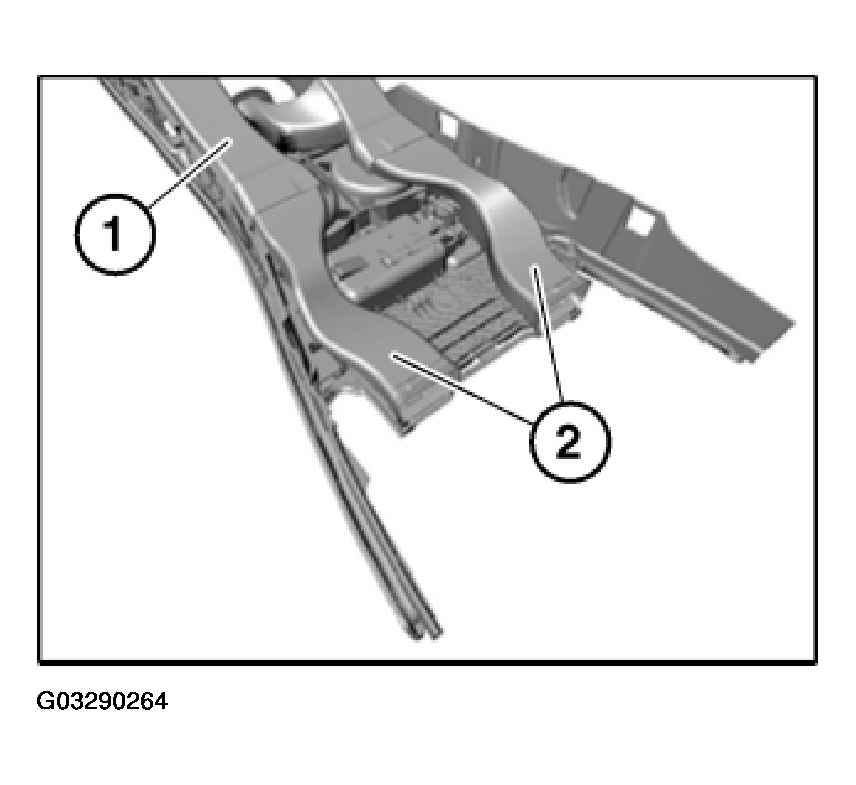

Fig 3: Identifying Air Ducts

G03290264

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Feed guides (1) into mounts (2).

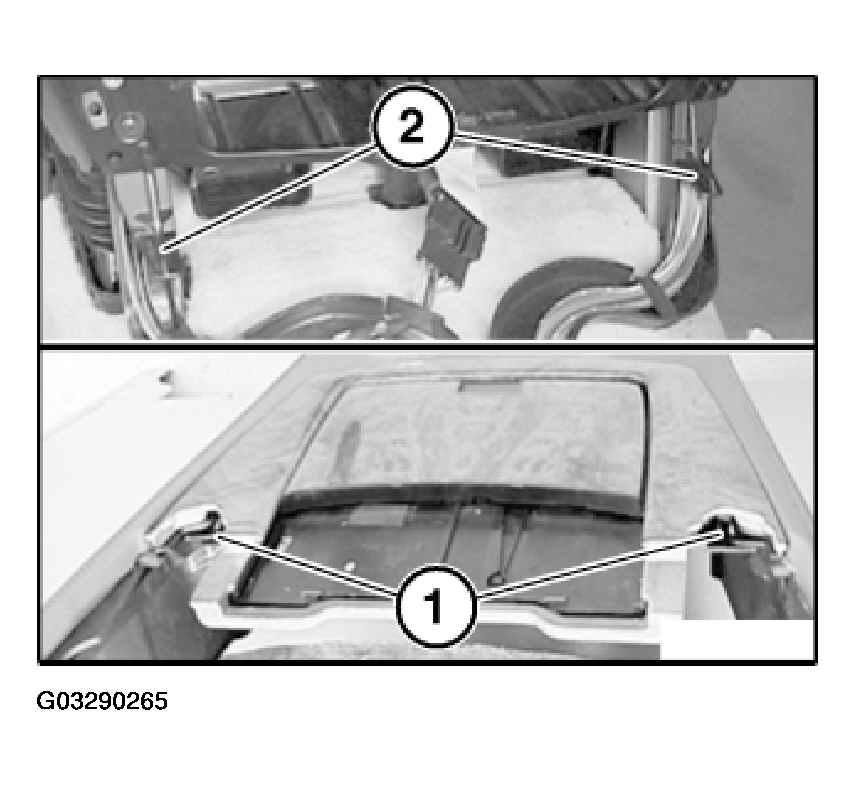

Fig 4: Feeding Guides Into Mounts

G03290265

Courtesy of BMW OF NORTH AMERICA, INC.
