51 16 185 Removing and installing / replacing decorative trims on centre console carrier section

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove centre console function carrier, refer to 51 16 188 REPLACING BASE FOR CENTRE CONSOLE ON STORAGE TRAY

Release screws (1).

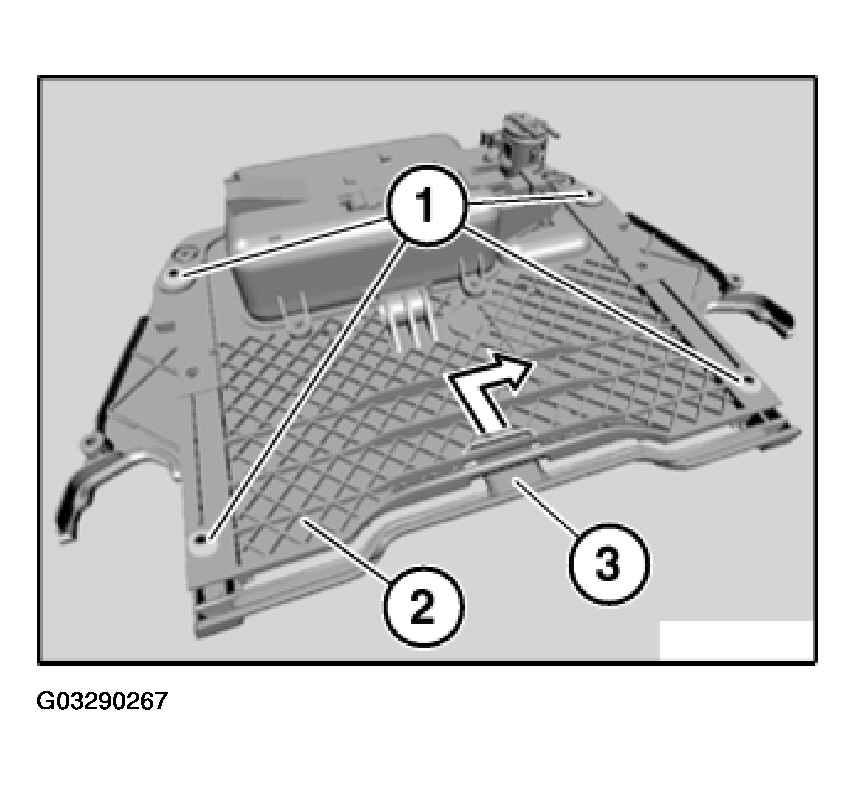

Fig 1: Removing Carrier

G03290267

Courtesy of BMW OF NORTH AMERICA, INC.

Remove carrier (2) from decorative trim (3) in direction of arrow.

Installation:

Make sure guide (3) is correctly seated in carrier (2).

WARNING: Failure to comply with the following note will result in potential personal injury.

NOTE: Secure coil spring (1) against springing out, e.g. with an extension (2).

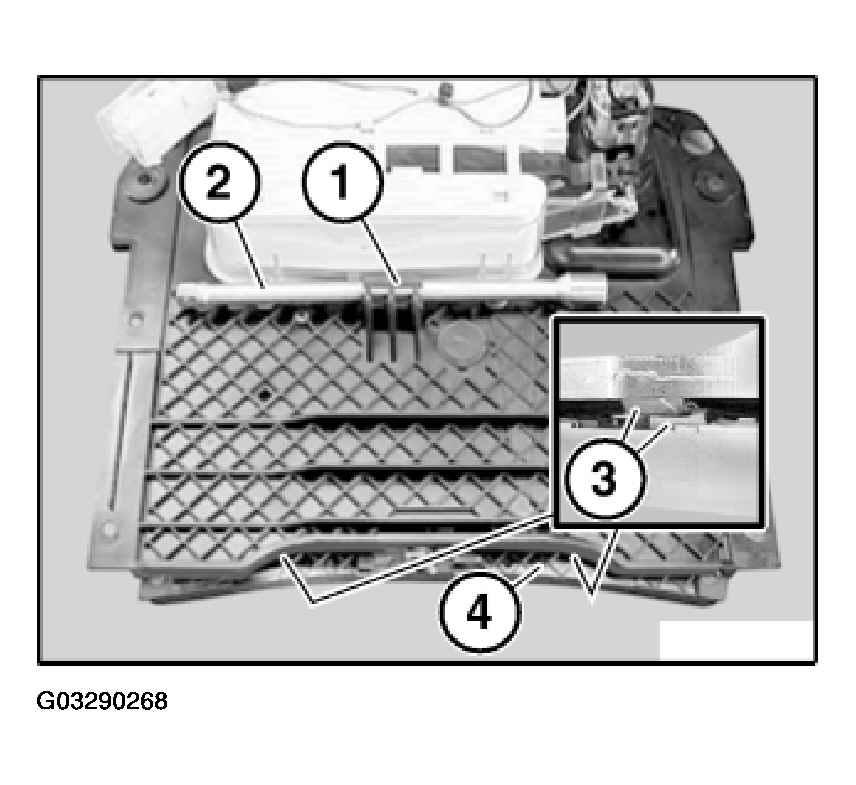

Fig 2: Securing Coil Spring

G03290268

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock retaining hook (3) and gently pull out decorative trim (4).

Pull coil spring (1) with flat nose pliers (2) out of mount and place over carrier (3) as illustrated.

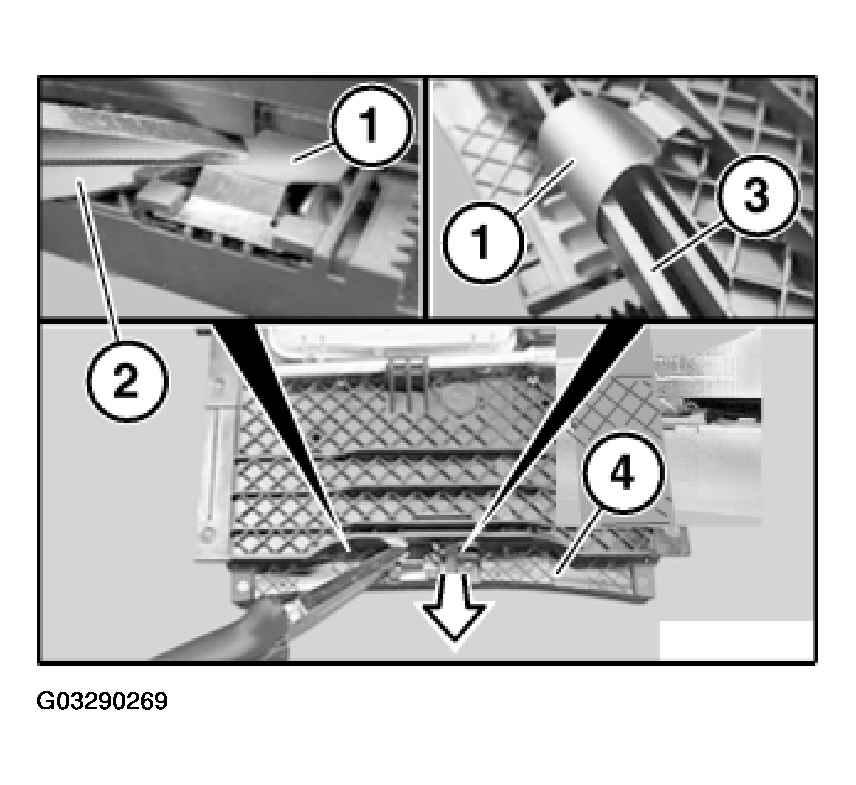

Fig 3: Removing Decorative Trim

G03290269

Courtesy of BMW OF NORTH AMERICA, INC.

Pull out decorative trim (4) in direction of arrow.

Installation:

Make sure coil spring (1) is correctly seated in mount.
