51 16 181 Replacing centre console carrier section
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove base for centre console on storage tray, refer to 51 16 188 REPLACING BASE FOR CENTRE CONSOLE ON STORAGE TRAY

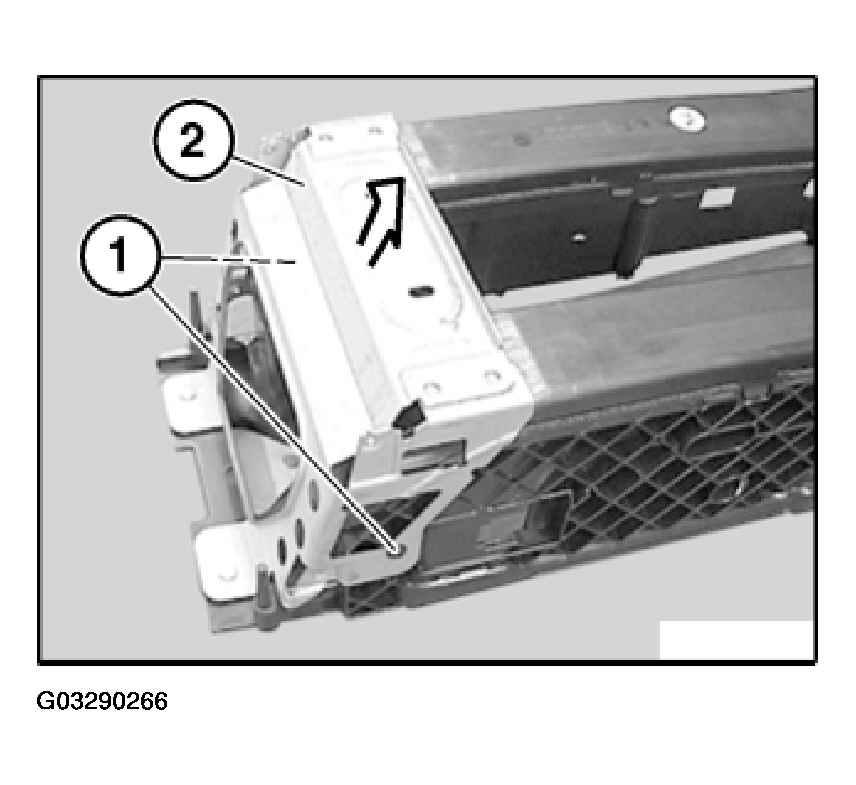

Release screws (1).
Remove carrier (2) in direction of arrow.
