51 23 110 Removing and installing/replacing left hood/bonnet lock

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove left headlight. Refer to 63 12 001 REMOVING AND INSTALLING/REPLACING LEFT HEADLIGHT (UP TO 03/2005) or 63 12 010 REMOVING AND INSTALLING LEFT HEADLIGHT (XENON HEADLIGHT) .

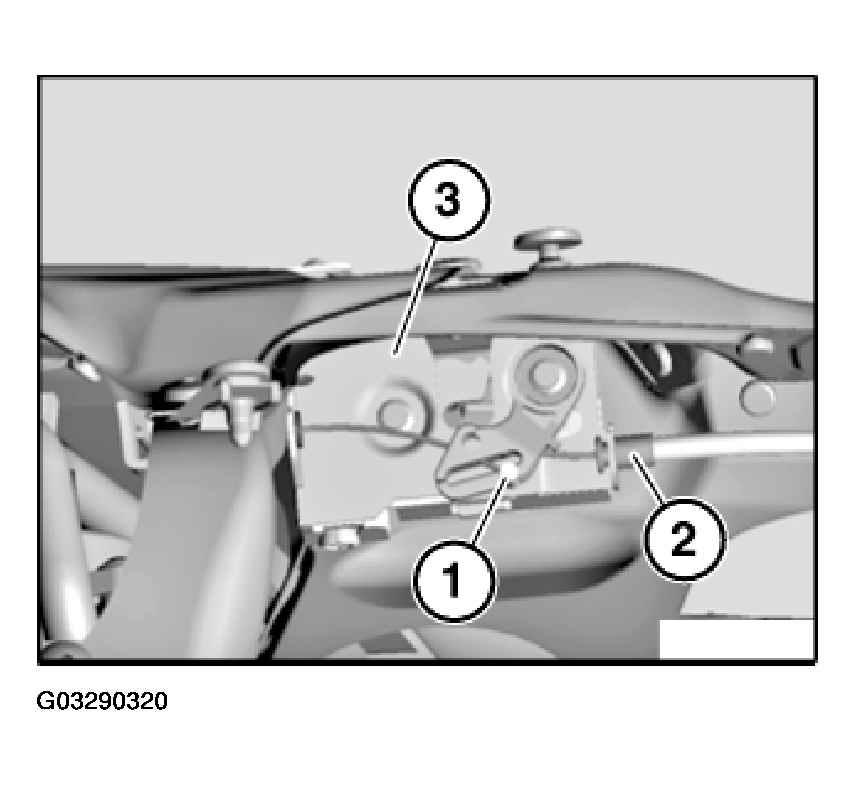

Disengage Bowden cable (1 and 2) from hood/bonnet lock (3).

Fig 1: Disengaging Bowden Cable From Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.

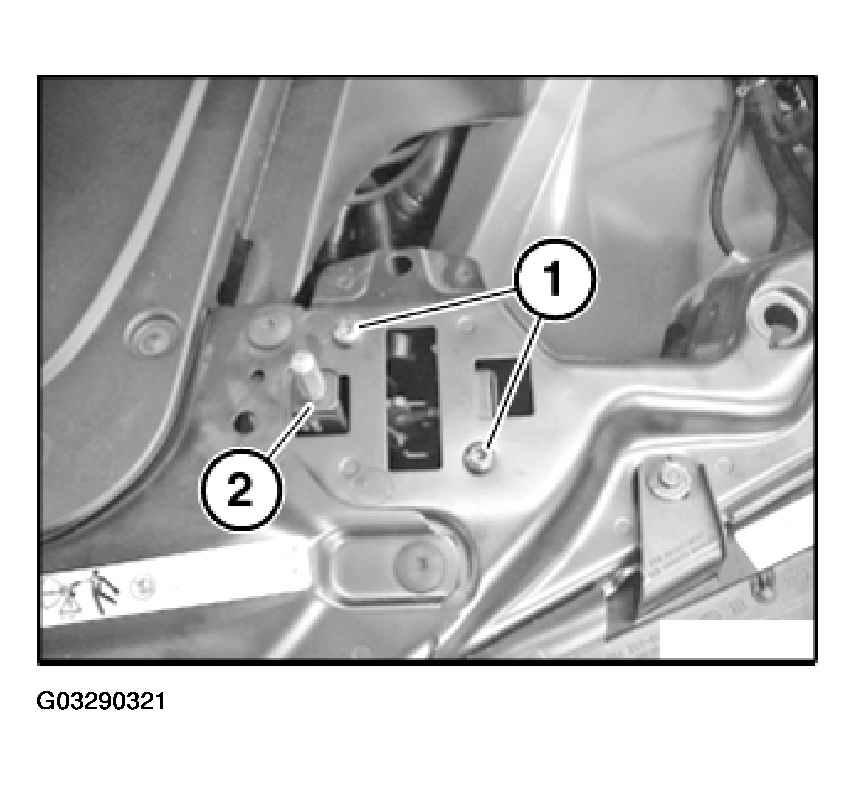

Release screws (1).

Fig 2: Removing Hood/Bonnet Lock

Courtesy of BMW OF NORTH AMERICA, INC.

Remove hood/bonnet lock (2) towards front.

Tightening torque 51 23 2AZ. Refer to BODY EQUIPMENT - TIGHTENING TORQUES .

Installation, :

If necessary, adjust engine hood/bonnet. Refer to 51 23 265 Removing and installing/replacing left or right gas strut for engine bonnet/hood .
