51 41 070 Removing and installing/replacing upper section on left or right armrest

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front door trim panel. Refer to 51 41 000 REMOVING AND INSTALLING LEFT OR RIGHT FRONT DOOR TRIM PANEL .
Remove rocker switch for window operation (front). Refer to 61 31 115 REPLACING ROCKER SWITCH FOR SIDE WINDOW OPERATION (FRONT) .

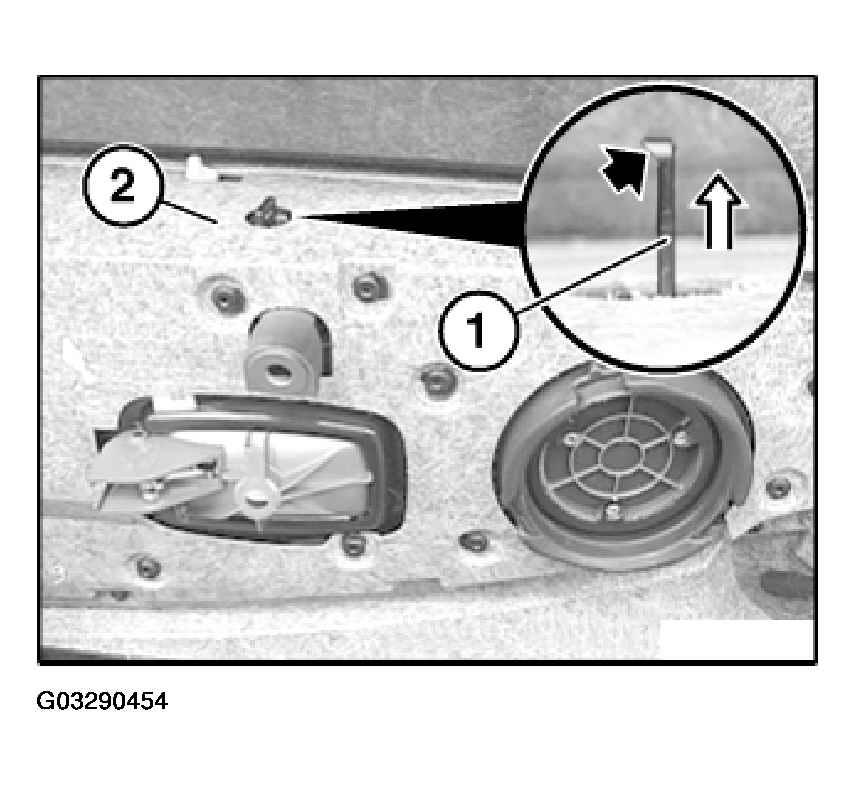

Pull out lock (1) on rear side of door trim (2) in direction of arrow.

Fig 1: Pulling Out Lock

G03290454

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Slope on lock (1) must point to rear.

Installation:

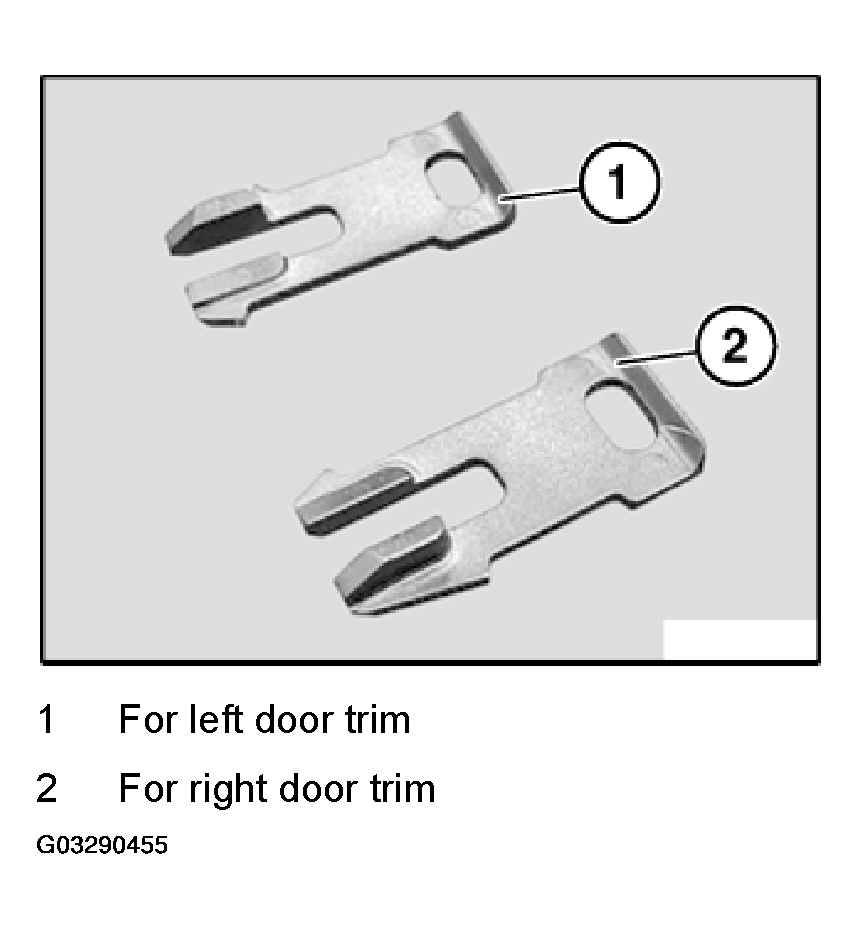

Locks for left and right door trims are different:

Fig 2: Identifying Locks For Left And Right Door Trims

G03290455

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Place a clean cleaning cloth between screwdriver and bore hole (risk of damage).

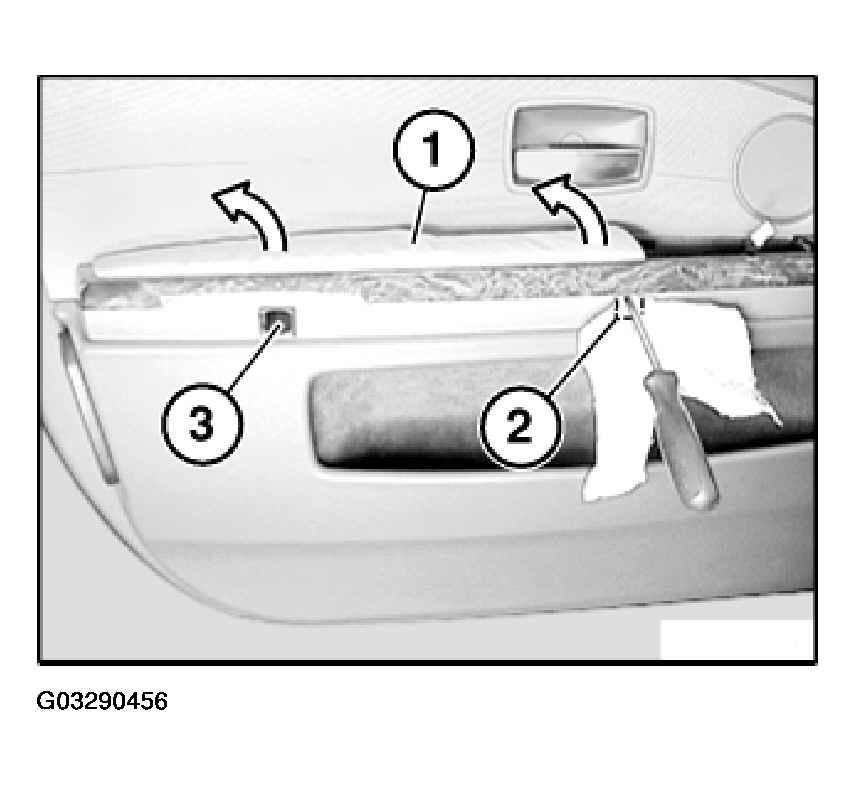

Unlock upper section (1) over bore holes at front (2) and rear (3) in direction of arrow.

Fig 3: Unlocking Upper Section

G03290456

Courtesy of BMW OF NORTH AMERICA, INC.

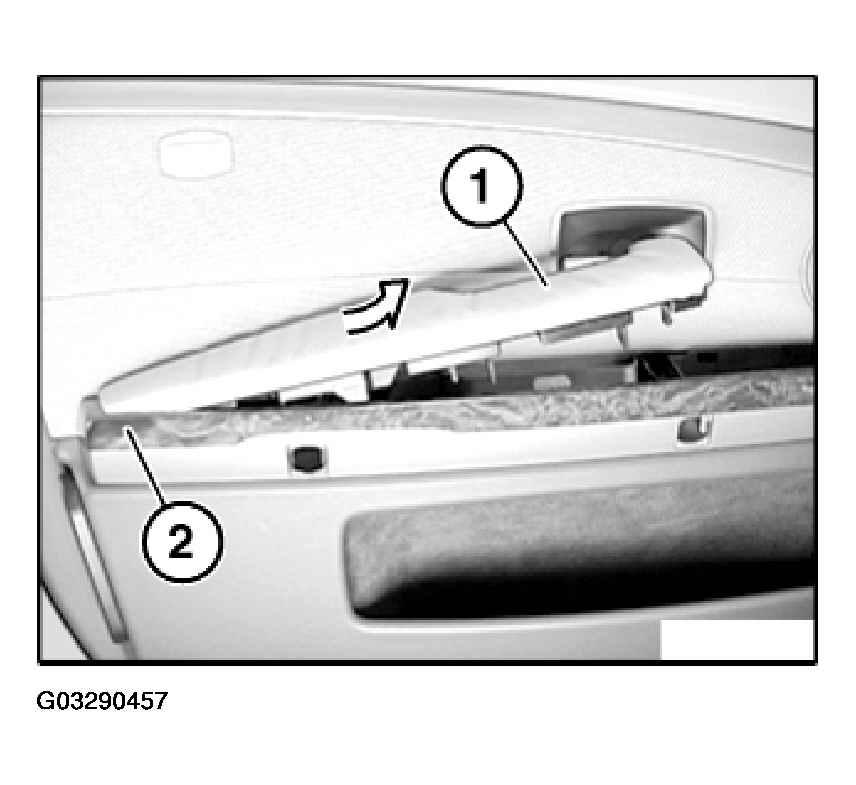

Pull upper section (1) in direction of arrow off armrest (2).

Fig 4: Pulling Upper Section

G03290457

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

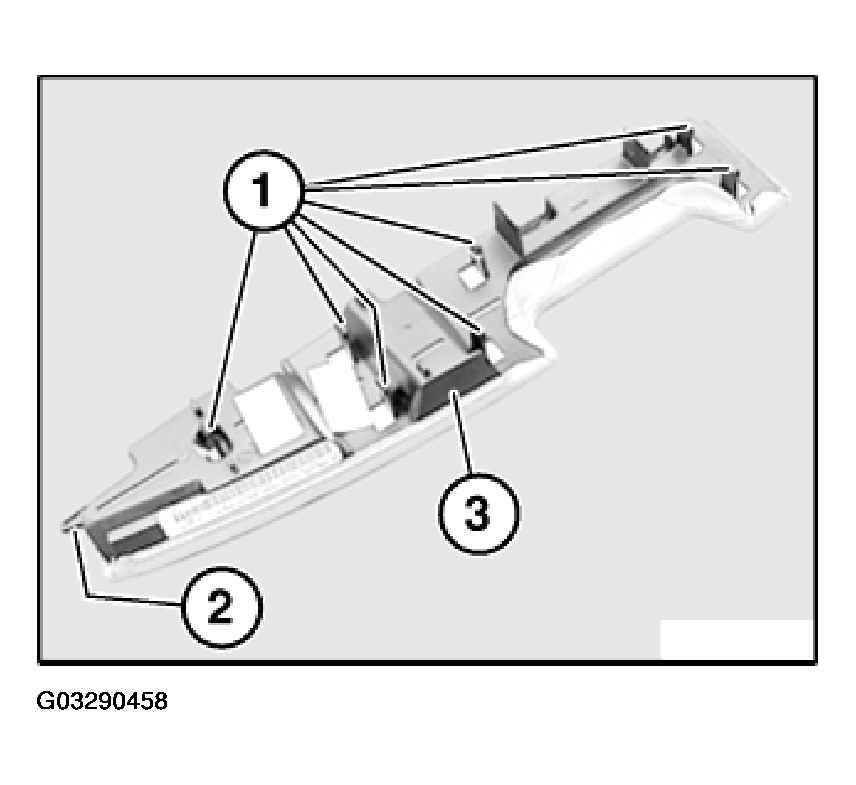

Catches (1) and guide (2) of upper section (3) must not be damaged.

Fig 5: Identifying Catches And Guide

G03290458

Courtesy of BMW OF NORTH AMERICA, INC.
