61 31 115 Replacing rocker switch for side window operation (front)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

00 9 322
00 9 341

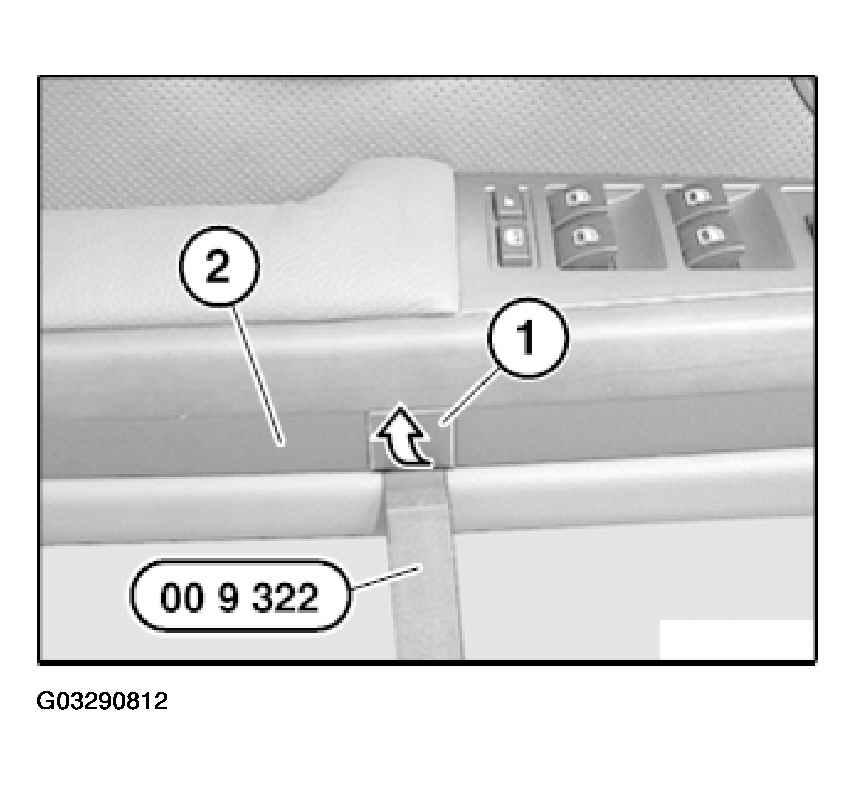

Lever clip (1) with special tool 00 9 322 out of armrest on front door (2).

Fig 1: Levering Clip Out Of Armrest

Courtesy of BMW OF NORTH AMERICA, INC.

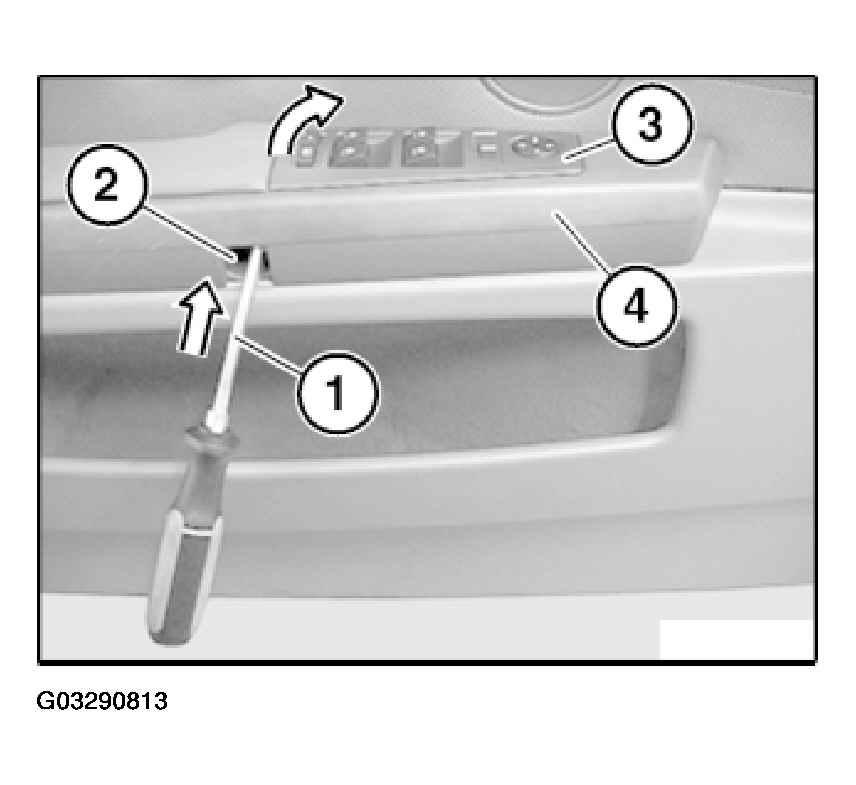

Using a suitable tool (1), press power window switch (3) through opening (2) out of armrest on front door (4).

Fig 2: Pressing Out Power Window Switch

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

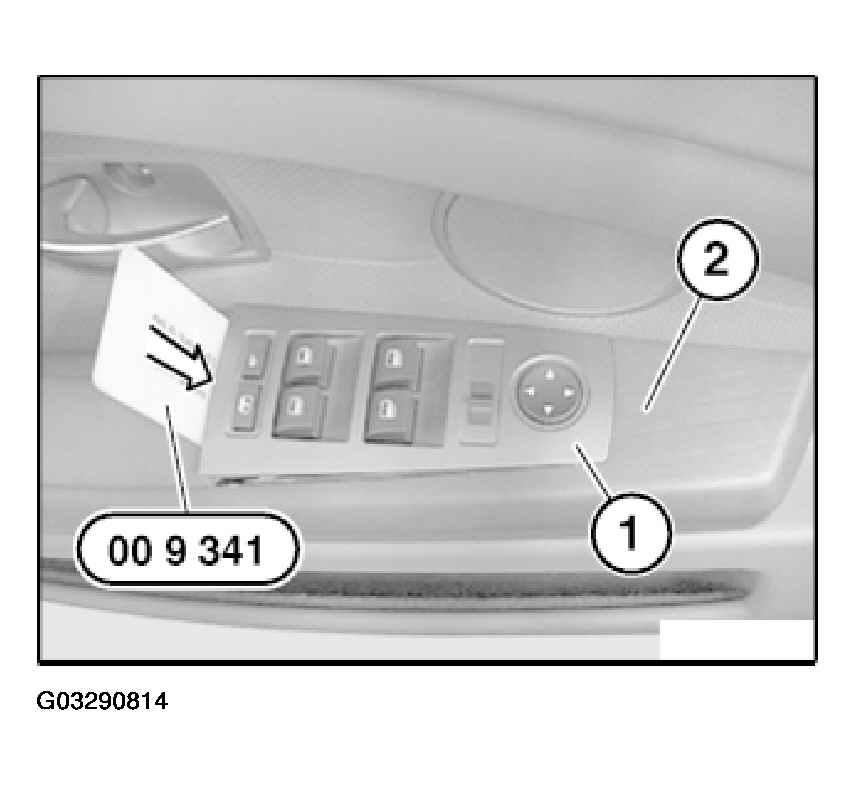

To prevent damage to armrest pad: insert power window switch (1) guided by special tool 00 9 341 into armrest on front door (2).

Fig 3: Inserting Power Window Switch

Courtesy of BMW OF NORTH AMERICA, INC.
