51 11 701 Replacing holder for bumper at front left and right
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove bumper trim. Refer to 51 11 156 Removing and installing front bumper trim .

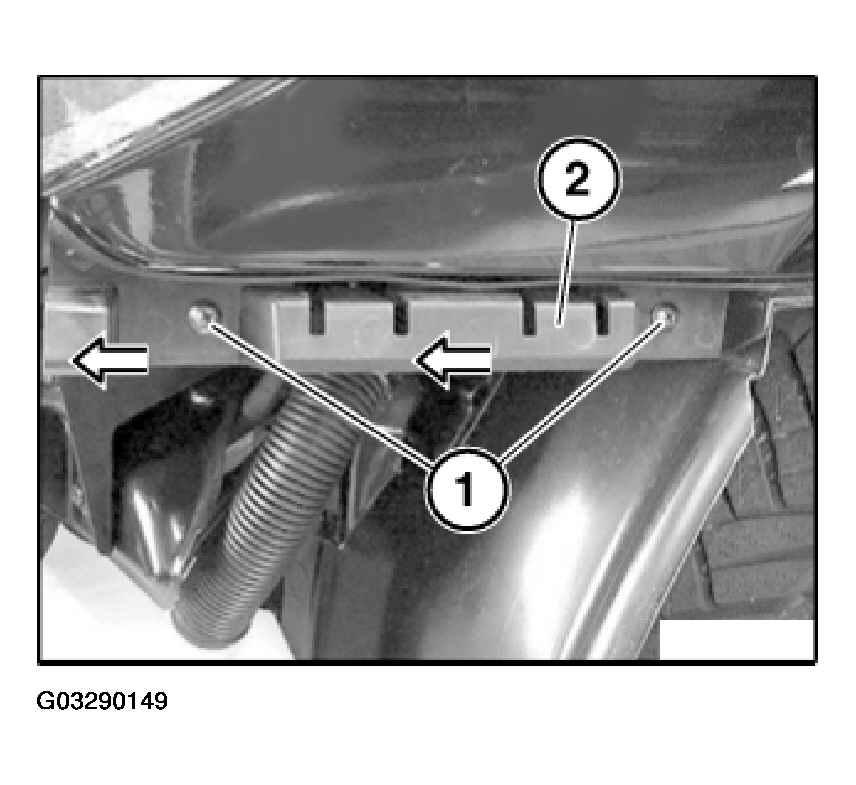

Release screws (1).
Slide holder (2) in direction of arrow as far as it will go.
Remove holder (2) towards front.
