13 62 010 Removing and installing/replacing differential pressure sensor (N62)

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2005 BMW 745i, 2005 BMW 745Li, 2004 BMW 745i, 2004 BMW 745Li, and 2003 BMW 745i. However, it is still accessible from the selected car via links, so may be relevant.

Work Steps

Work step	Note:
	Installation location: On rear side of intake air manifold.
Switch off ignition.
Remove design cover.	E65/E66 only
Remove acoustic cover.
Remove both lower microfilter housing sections.	E60/E61/E63/E64 only
Remove engine compartment bulkhead. Refer to 51 71 085 REMOVING AND INSTALLING CENTER OF ASSEMBLY COMPARTMENT BULKHEAD .	E65/E66 only
Remove cover for ignition coils on left and right. See 12 13 511 REPLACING IGNITION COIL (N62)
Unlock and disconnect following plug connections. Fuel rail, left and right, on cable duct Throttle-valve assembly Knock sensor, left and right All solenoid valves Both temperature sensors Oil-pressure switch Tank venting valve Alternator Valvetronic servomotor, left and right Pulse generator on exhaust and inlet camshafts, left and right Eccentric shaft sensor, left and right	Lines to oxygen sensors remain connected. Lines to electronics box remain connected.

Unfasten screws.

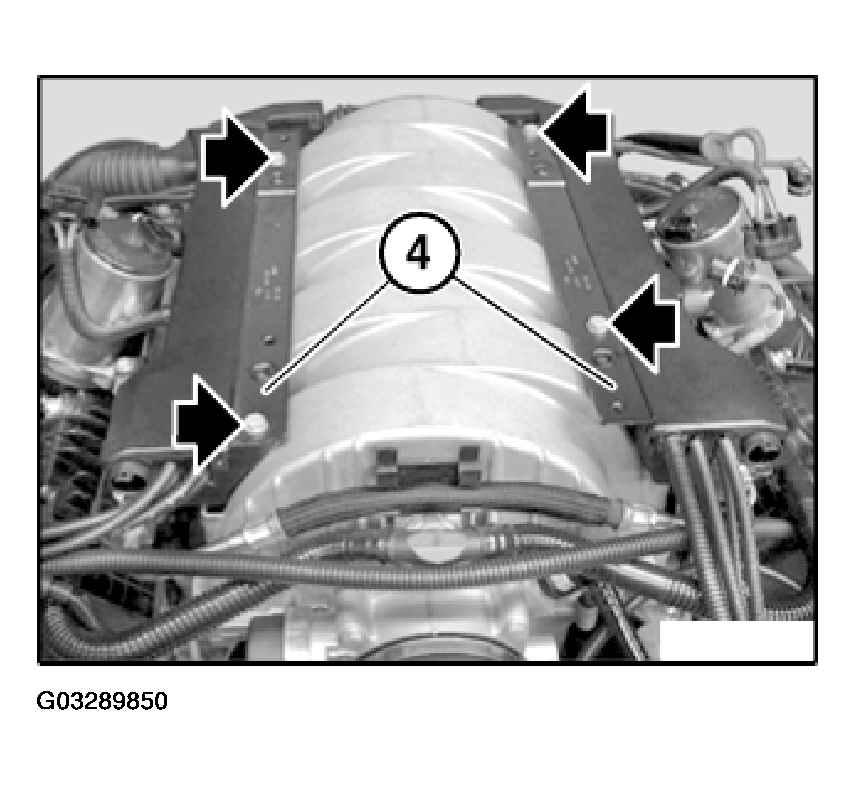

Fig 1: Taking Off Holder

Courtesy of BMW OF NORTH AMERICA, INC.

Take off holder (4).

Lay cable ducts to one side.

Unlock plug (1) and remove.

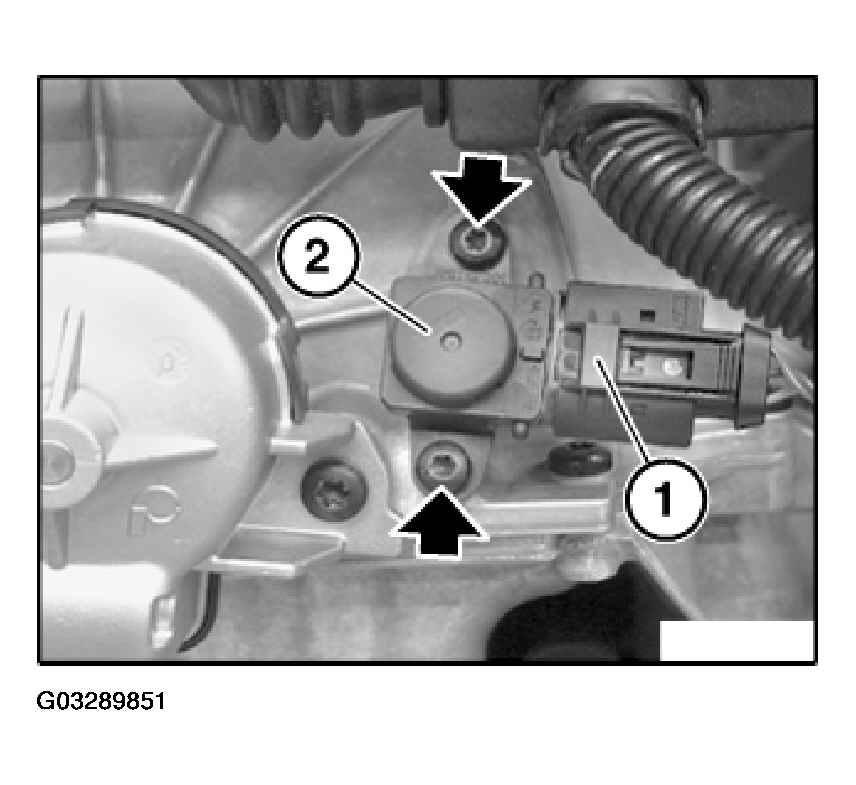

Fig 2: Removing Differential Pressure Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Pull differential pressure sensor (2) out of intake air manifold.

Installation:

Read out fault memory of control unit of Digital Motor Electronics (DME).

Check stored fault messages.

Now clear the fault memory.
