13 53 240 Replacing complete injection pipe (N62)

Special tools required:

• 13 5 281

Necessary preliminary tasks:

• Read out fault memory of DME control unit
• Switch off ignition
• Remove acoustic cover
• E65 only:

  Remove design cover

• Remove ignition coil covers. See 12 13 511 REPLACING IGNITION COIL (N62)

Unlock plugs (1) on servomotors and disconnect.

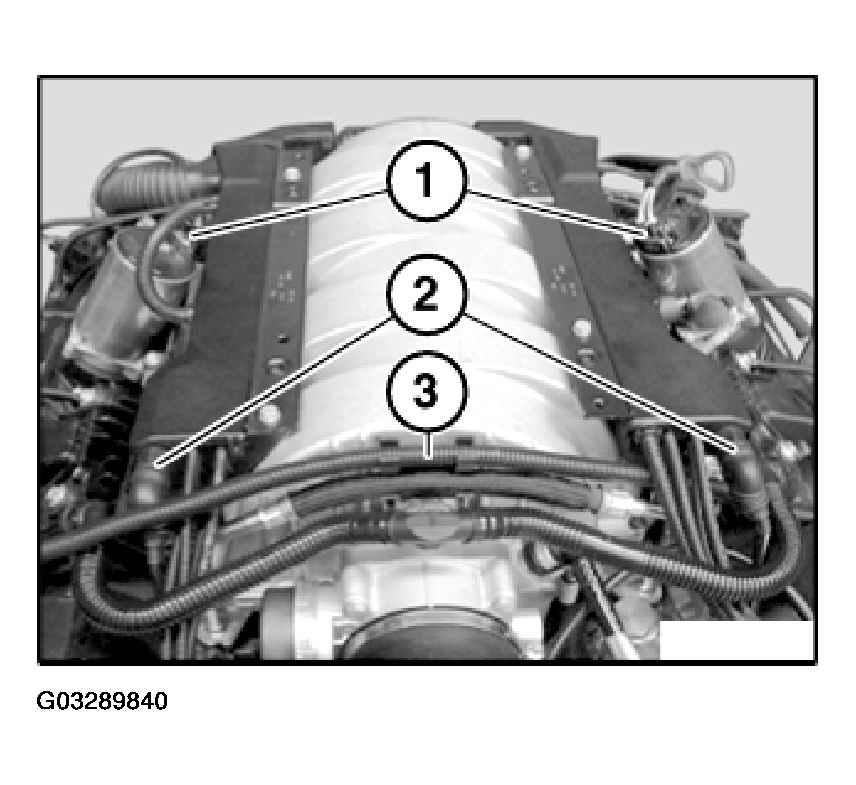

Fig 1: Detaching Plug Connections Of Knock Sensors

Courtesy of BMW OF NORTH AMERICA, INC.

Detach plug connections (2) of knock sensors from cable strips.

Unclip cable (3).

Unlock and disconnect following plug connections.

• Fuel rail, left and right, on cable duct
• Throttle-valve assembly
• All solenoid valves
• Both temperature sensors
• Oil-pressure switch
• Tank venting valve
• Alternator
• Differential pressure sensor
• Servomotor on intake air manifold
• Pulse generator on left exhaust and inlet camshafts
• Left eccentric shaft sensor

Unfasten screws.

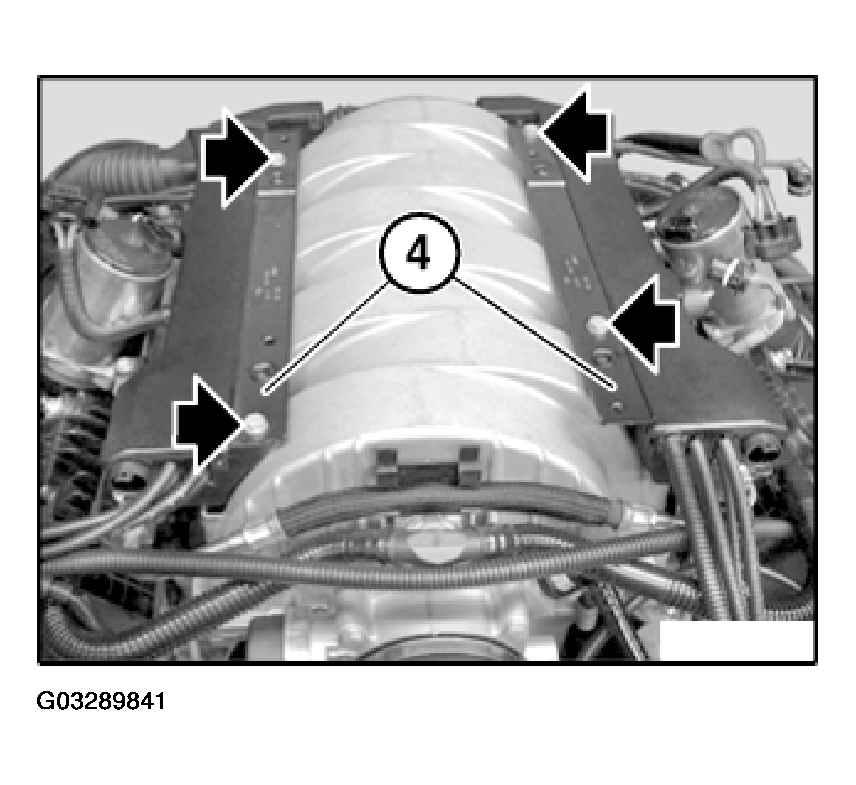

Fig 2: Removing Brackets

Courtesy of BMW OF NORTH AMERICA, INC.

Remove brackets (4), place cable ducts to one side.

Recycling

Fuel escapes when fuel line is detached. Catch and dispose of escaping fuel.

Observe country-specific waste-disposal regulations.

Remove protective cap from compressed air connection (1).

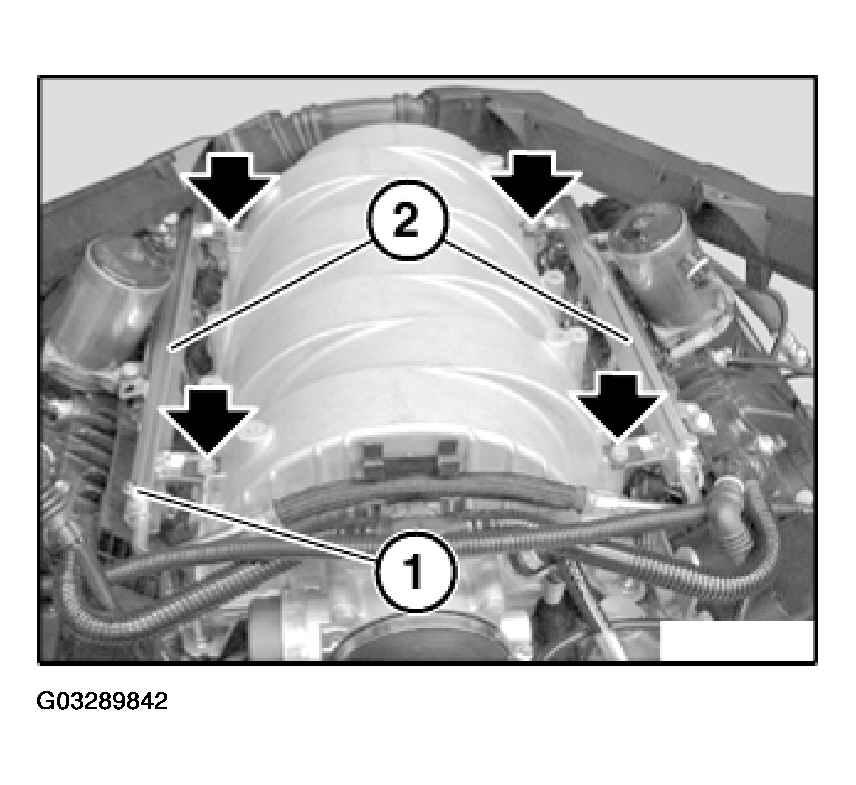

Fig 3: Removing Protective Cap From Compressed Air Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Blow fuel back into tank with a short blast of compressed air (max. 3 bar) at compressed air connection (1).

Unfasten screws.

Remove both injection pipes (2) towards top.

Unlock and disconnect fuel hose (1).

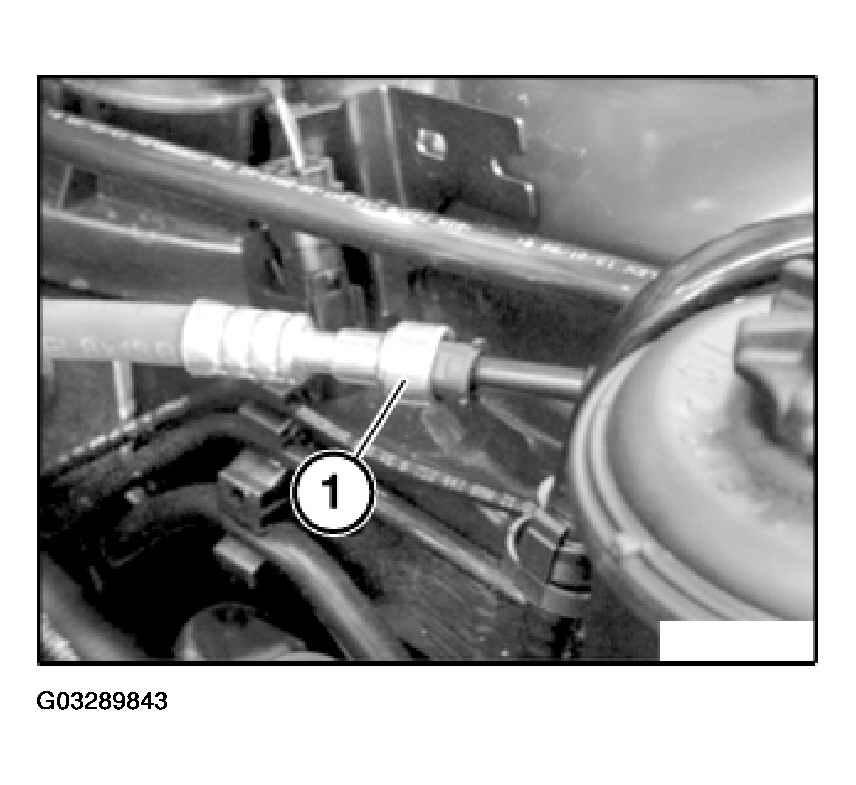

Fig 4: Disconnecting Fuel Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Seal fuel hose with special tool 13 5 281.

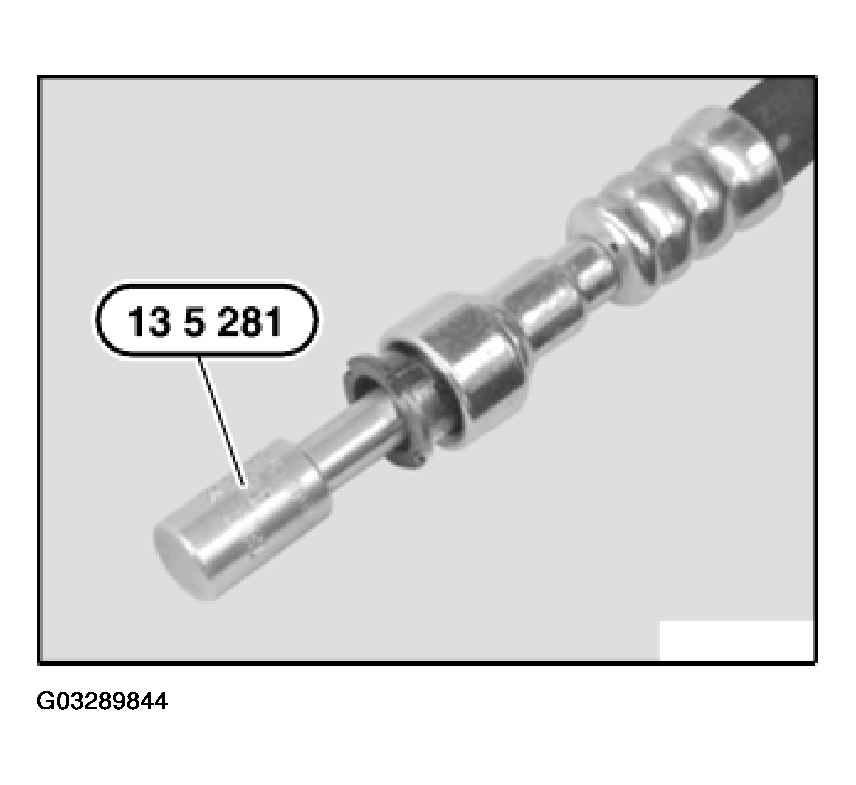

Fig 5: Sealing Fuel Hose

Courtesy of BMW OF NORTH AMERICA, INC.

Unfasten screws.

Unlock connector and remove.

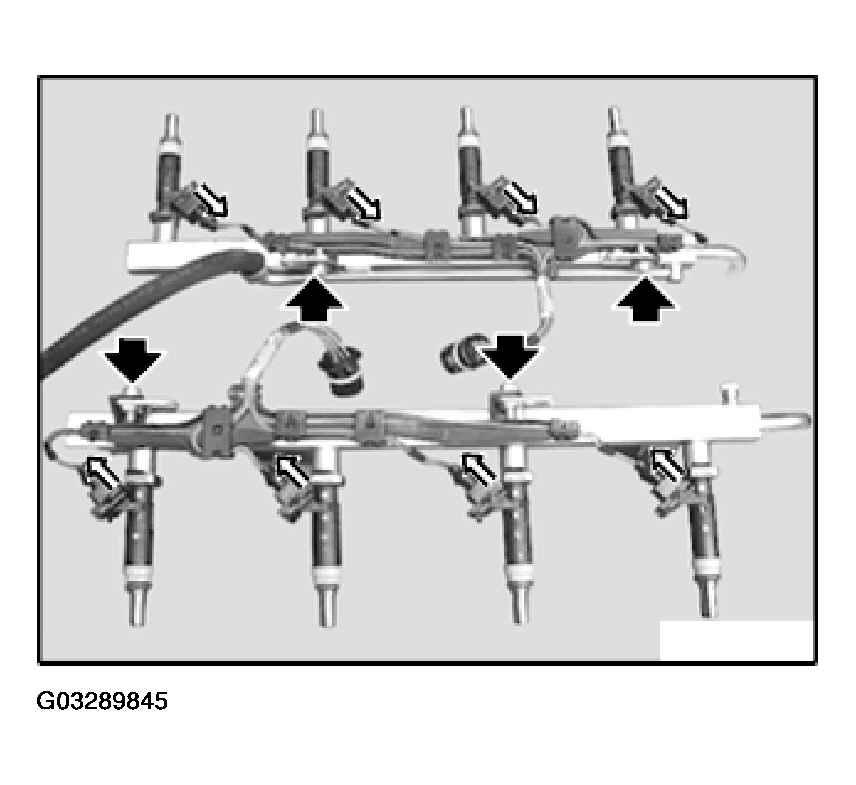

Fig 6: Unlocking Connector

Courtesy of BMW OF NORTH AMERICA, INC.

Lever out retainers (1).

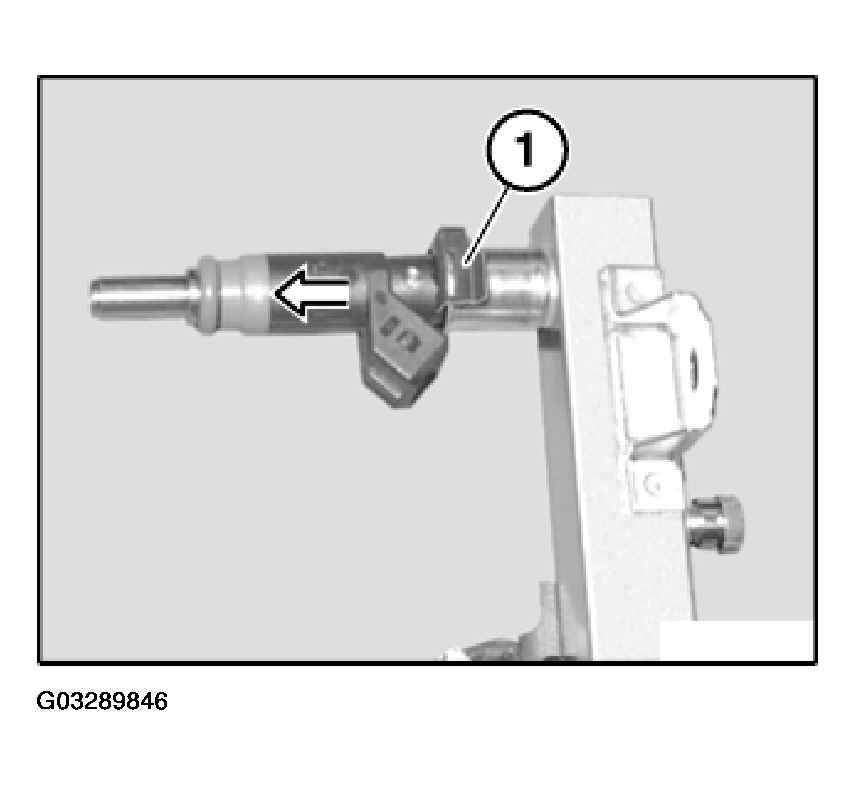

Fig 7: Removing Fuel Injectors

Courtesy of BMW OF NORTH AMERICA, INC.

Pull fuel injectors out of injection pipe.

Installation:

Replace sealing rings on fuel injectors and coat with antifriction rubber coating.
