65 90 540 Removing and installing/replacing antenna of Global Positioning System (GPS)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove trim for front roofliner. Refer to 51 44 150 REPLACING TRIM FOR FRONT ROOFLINER .

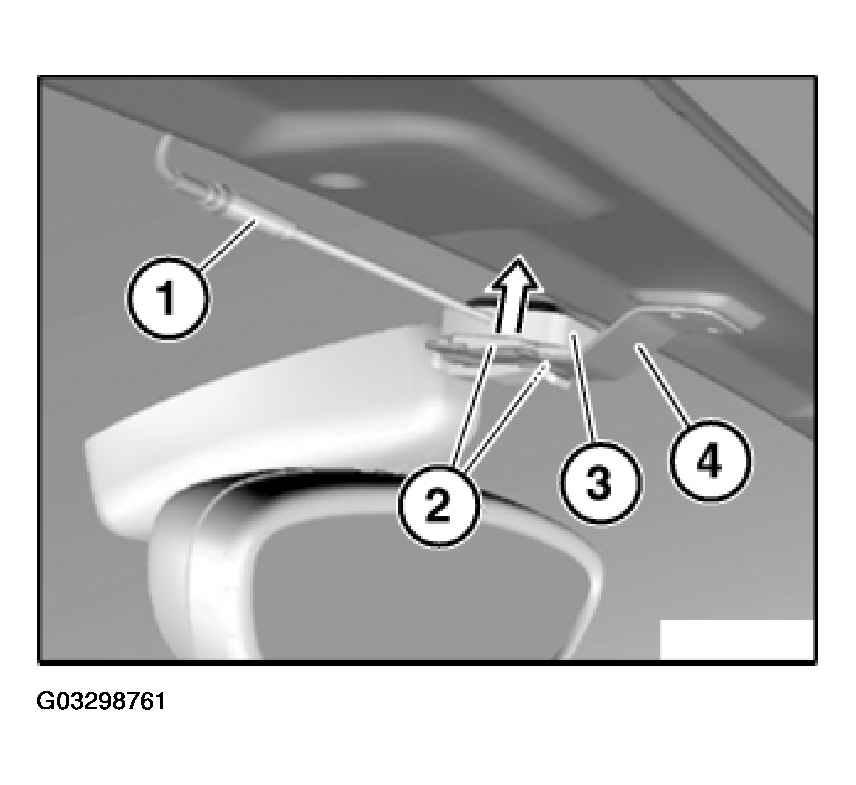

Release knurled nut and disconnect antenna plug (1).
Unlock both catches (2) in direction of arrow, slide antenna of Global Positioning System (3) forwards from holder (4) and remove.
