51 44 150 Replacing trim for front roofliner
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Open convertible top.
- Remove complete ceiling light. See 63 31 000 REMOVING AND INSTALLING/REPLACING CEILING LIGHT .
- Remove both sun visors. See 51 16 080 Removing And Installing Or Replacing Sun Visor And Left Or Right Counter Support .

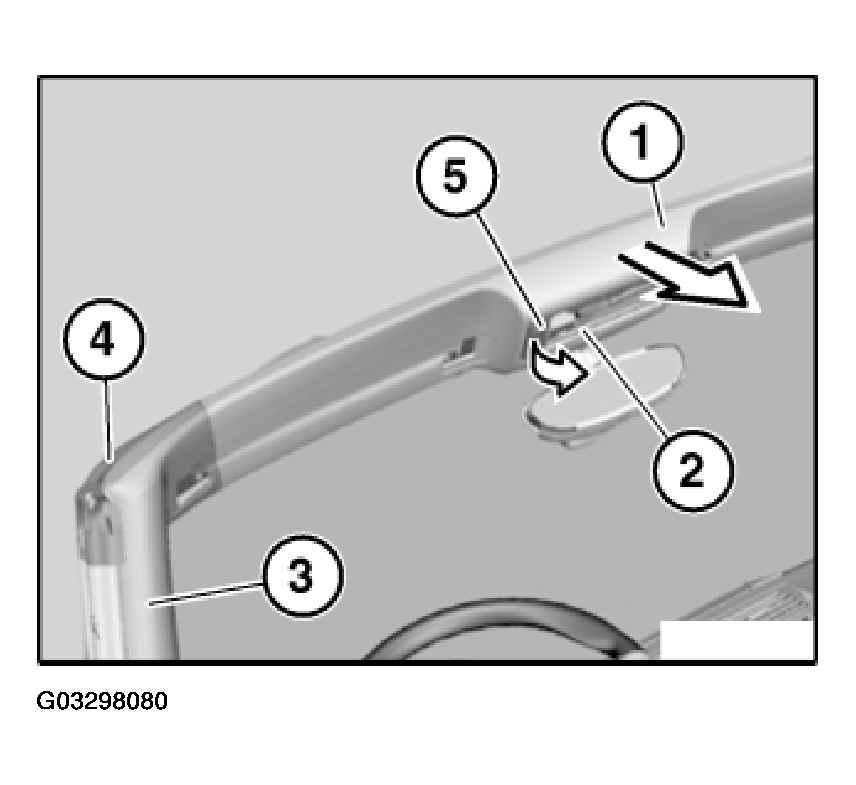

Pull back trim for front roofliner (1) in direction of arrow; if necessary, disconnect hands-free plug connection (5) and remove trim for front roofliner (1).
Installation:
Make sure seal (4) is correctly seated on trim for front roofliner (1).
Make sure trim for front roofliner (1) is correctly seated on left and right roof pillar panels (3).
When replacing trim for front roofliner (1):
Unclip insert (2) in direction of arrow and remove.
