65 11 070 Removing and installing/replacing CD changer

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear storage compartment. Refer to 51 16 240 REMOVING AND INSTALLING REAR STORAGE COMPARTMENT .

NOTE: For purposes of clarity, the rear left side trim is shown removed.

Release screws (1).

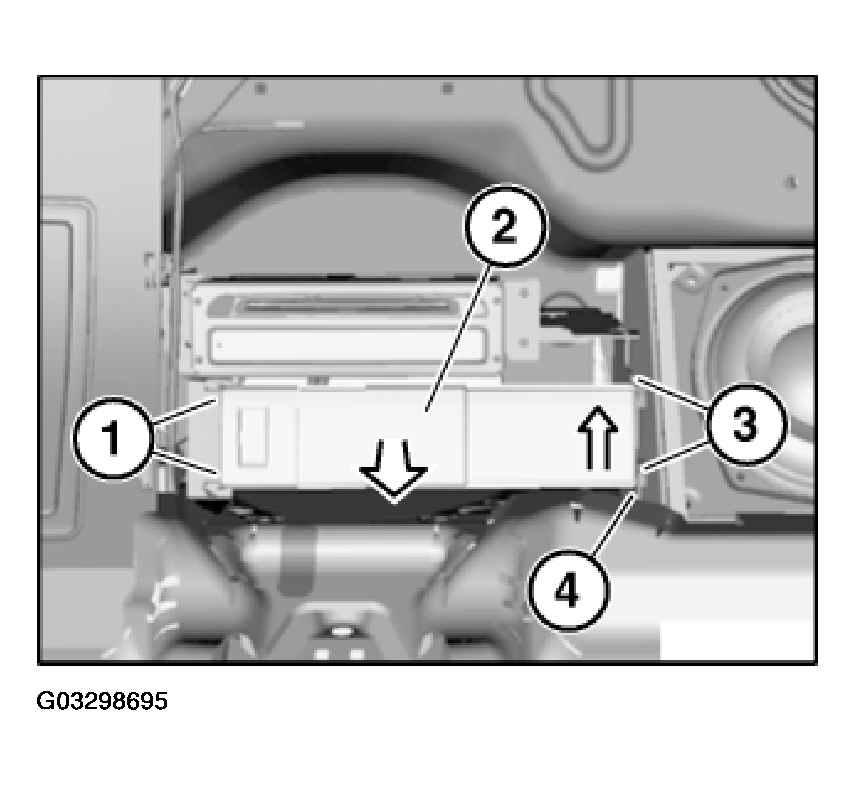

Fig 1: Removing CD Changer

Courtesy of BMW OF NORTH AMERICA, INC.

Lift CD changer (2) out of mountings (3) and remove in direction of arrow from CD changer holder (4).

Unlock plug connections behind and disconnect.

Remove CD changer (2).
