65 75 572 Removing and installing/replacing module for passenger compartment protection

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove rear storage box, refer to 51 16 240 REMOVING AND INSTALLING REAR STORAGE COMPARTMENT

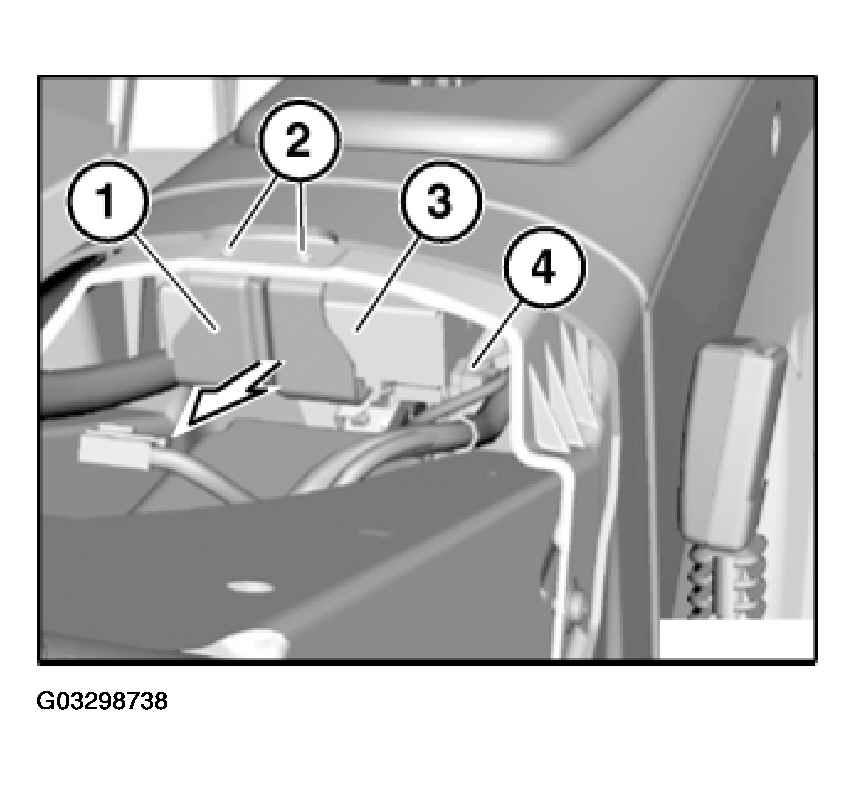

Loosen screws (2).

Fig 1: Removing Module For Interior Sensor

Courtesy of BMW OF NORTH AMERICA, INC.

Feed out module for interior sensor (3) complete with holder (1) in direction of arrow.

Unlock plug connection (4) and disconnect, remove module for interior sensor (3) complete with holder (1).

Replacement:

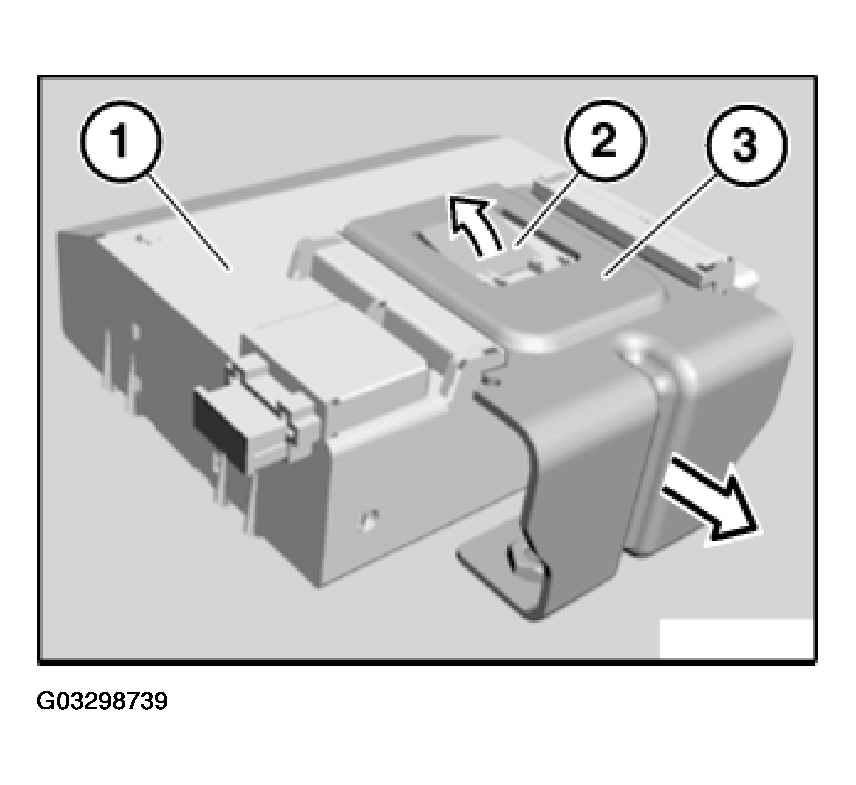

Release lock (2) and remove holder (3) of module for interior sensor (1) in direction of arrow.

Fig 2: Removing Holder Of Module For Interior Sensor

Courtesy of BMW OF NORTH AMERICA, INC.
