65 77 534 Removing and installing/replacing front right sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove fluid reservoir for windscreen washer system, refer to 61 71 061 REPLACING FLUID RESERVOIR FOR WINDSHIELD WASHER SYSTEM
- Remove radiator cover, refer to REMOVING RADIATOR COVER

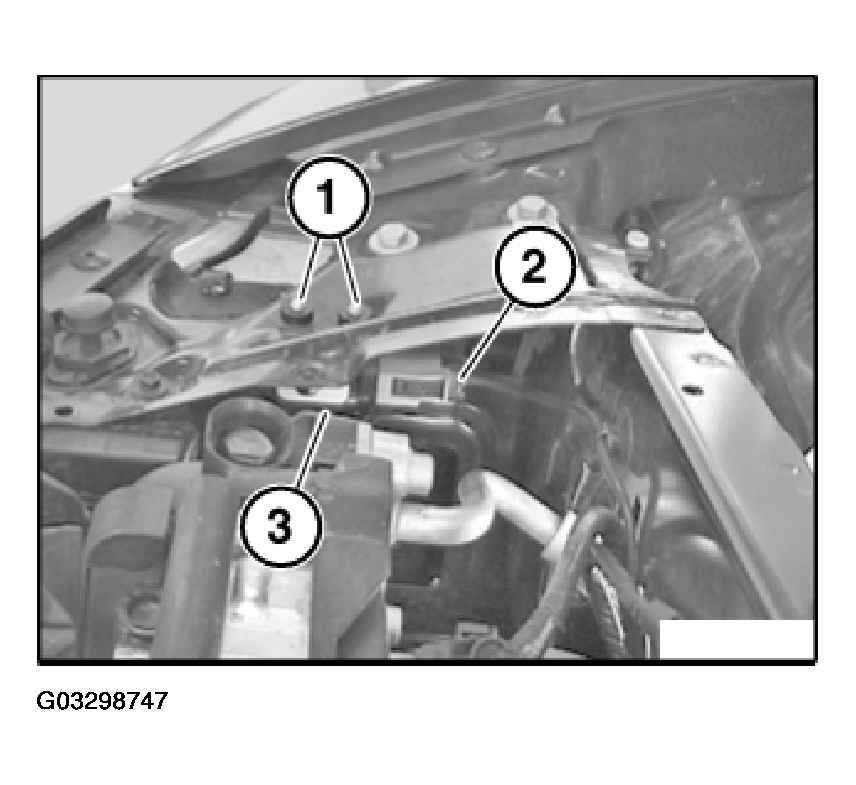

Release screws (1), tightening torque 65 77 3AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES .
Unlock and disconnect plug connection (2) and remove front right sensor (3).
