61 71 061 Replacing fluid reservoir for windshield washer system

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove windshield washer pump. See 61 71 100 Removing And Installing/Replacing Windshield Washer Pump .
Remove level switch for windshield washer system. See 61 31 492 Replacing Level Switch For Windshield Washer System .

Version with headlight cleaning system:

Unlock plug connection (1) and disconnect.

Unlock hose (2) and detach from washer pump of headlight cleaning system.

Installation:

Make sure hose (2) is laid without kinks.

All:

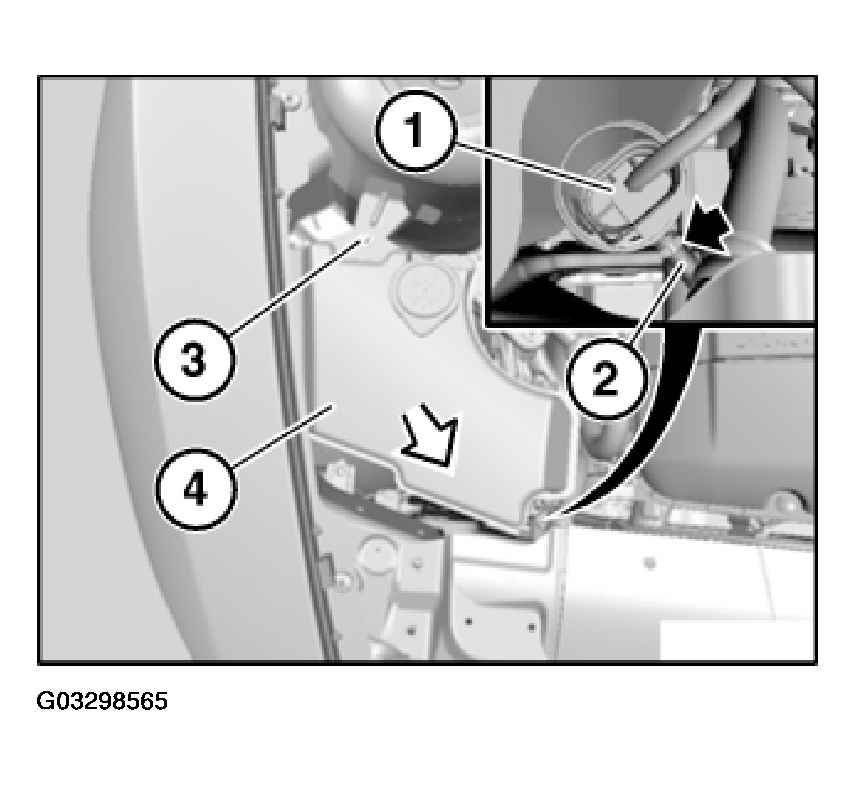

Release screw (3).

Feed out fluid reservoir for windshield washer system (4) and remove in direction of arrow.

Fig 1: Releasing Screw

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

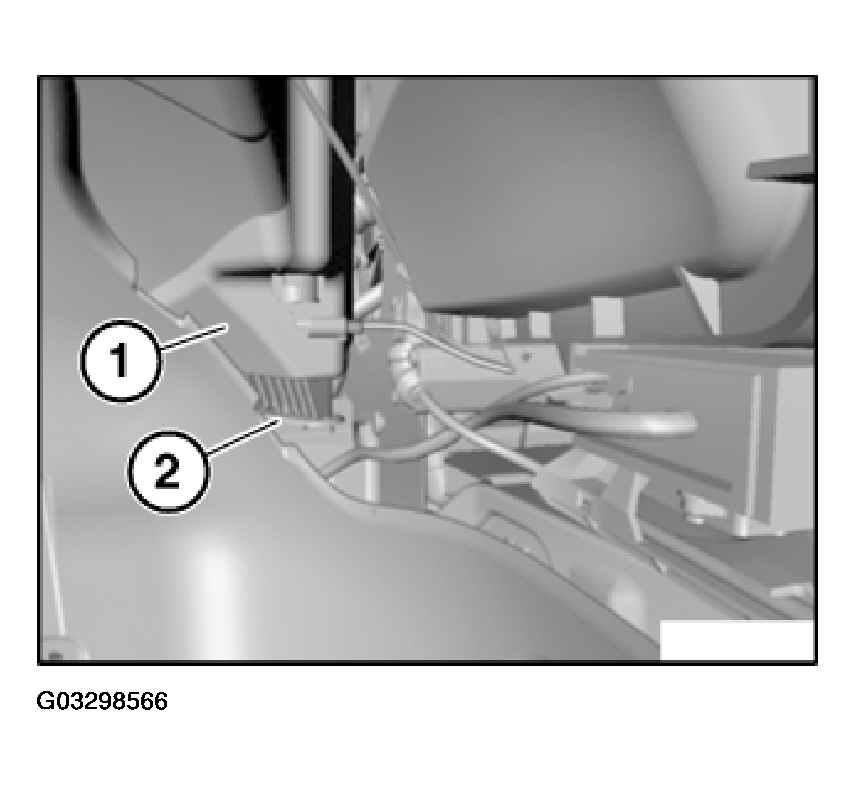

Make sure fluid reservoir for windshield washer system (1) is correctly seated in guide (2).

Fig 2: Installing Windshield Washer System

Courtesy of BMW OF NORTH AMERICA, INC.

Version with headlight cleaning system:

Withdraw washer pump of headlight cleaning system (1) in direction of arrow.

Installation:

Replace sealing ring and strainer in washer pump.

Coat sealing ring of washer pump with antiseize agent.

All:

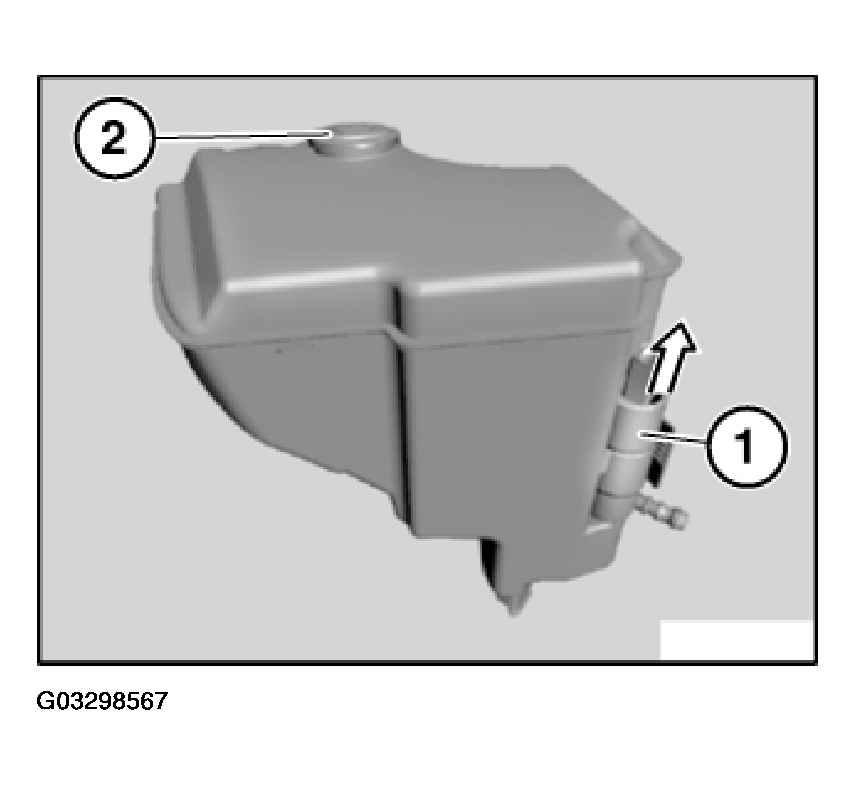

Remove cover for windshield washing reservoir (2) and pull out strainer underneath.

Fig 3: Removing Cover For Windshield Washing Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.
