65 77 016 Removing and installing/replacing AIRBAG control unit

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Note AIRBAG safety instructions! Refer to AIR BAG SAFETY PRECAUTIONS .
Incorrect handling can activate AIRBAG and cause injury

NOTE: Follow instructions for handling optical fibers. Refer to 61 00... NOTES ON HANDLING OPTICAL FIBERS .

Necessary preliminary tasks:

Disconnect battery negative lead and cover. Refer to 12 00 ... INSTRUCTIONS FOR DISCONNECTING AND CONNECTING BATTERY .
Remove rear storage compartment. Refer to 51 16 240 REMOVING AND INSTALLING REAR STORAGE COMPARTMENT .

Cut through carpet (1) in area (2) and fold to one side.

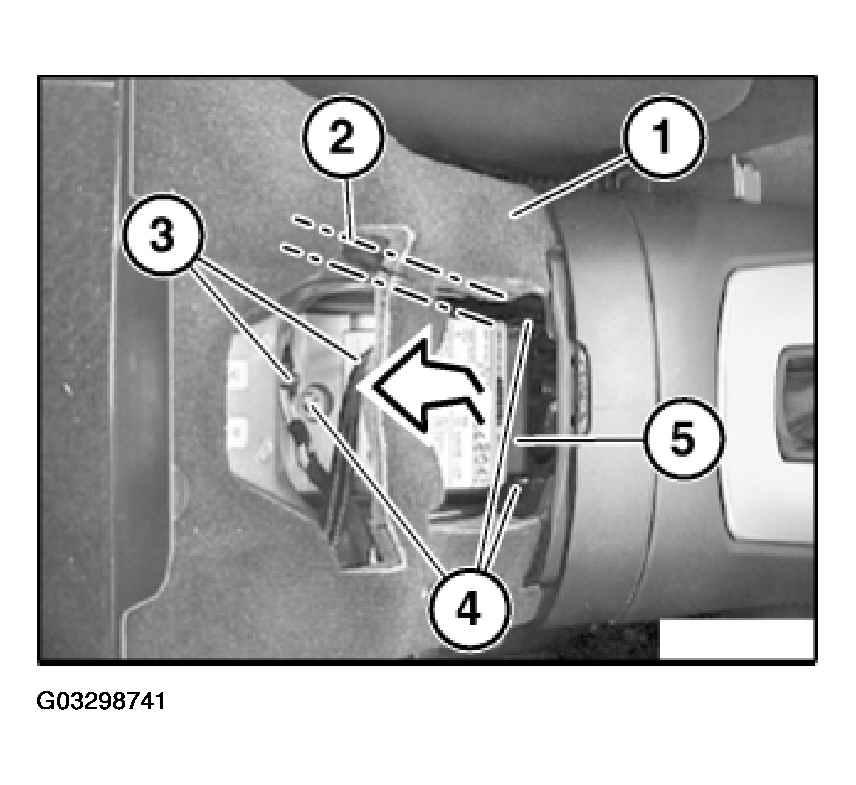

Fig 1: Removing AIRBAG Control Unit

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock plug connections (3) and disconnect.

Unscrew nuts (4).

Installation:

Tightening torque 65 77 1AZ. Refer to AUDIO, NAVIGATION AND ANTI-THEFT - TIGHTENING TORQUES .

Feed out AIRBAG control unit (5) in direction of arrow and remove.

Replacement:

Carry out coding/programming.

Observe following IDC specifications:

Programming
Coding
If necessary, car & key memory
CD "CIP"

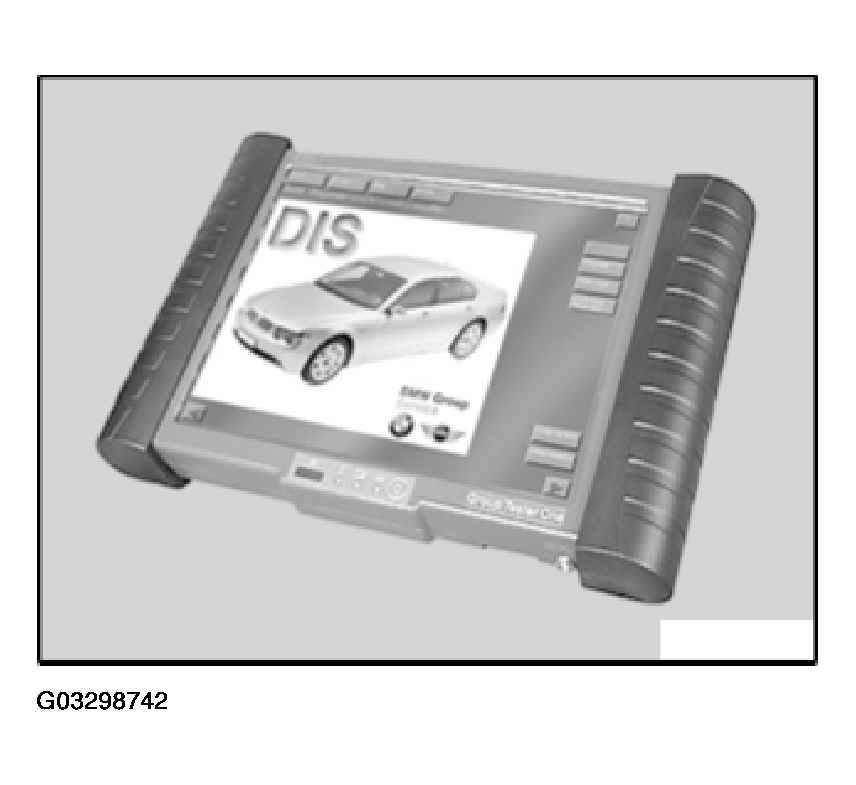

Fig 2: Identifying DIS
Courtesy of BMW OF NORTH AMERICA, INC.
