63 13 200 Removing and installing/replacing front left or right auxiliary turn signal lamp
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

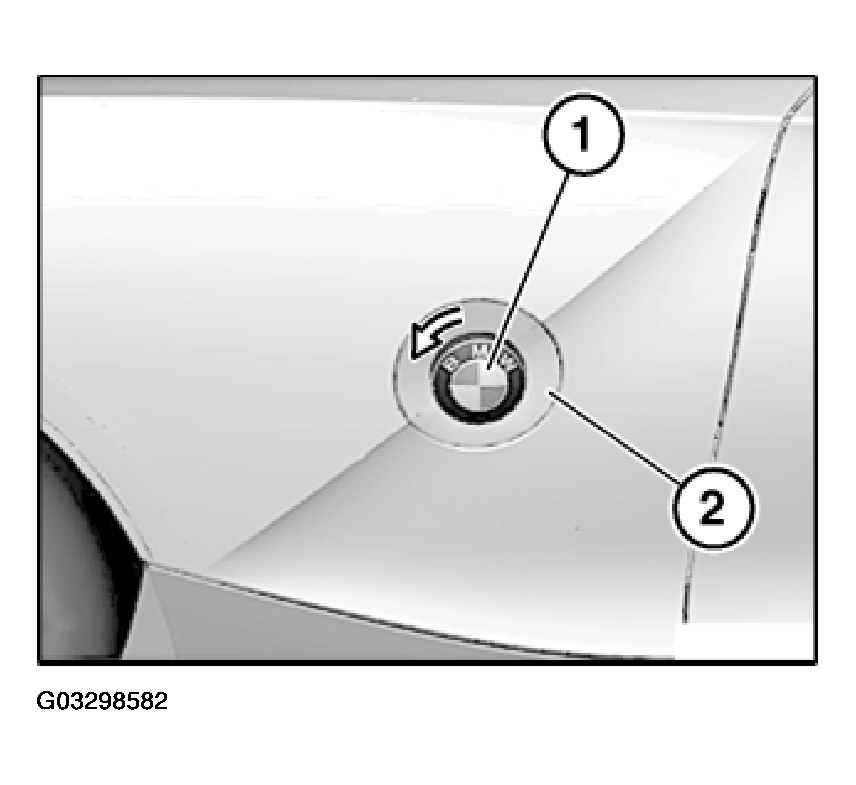

Turn front auxiliary turn signal lamp (1) approx. 45° counterclockwise and pull out of trim (2).
Unlock plug connection behind and disconnect.
Remove front auxiliary turn signal lamp (2).
Replacement:
WARNING:
Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights)
.
If necessary, remove Bulb .
