63 99 273 Replacing bulb for turn indicator, front left

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front wheel removed for purposes of clarity.

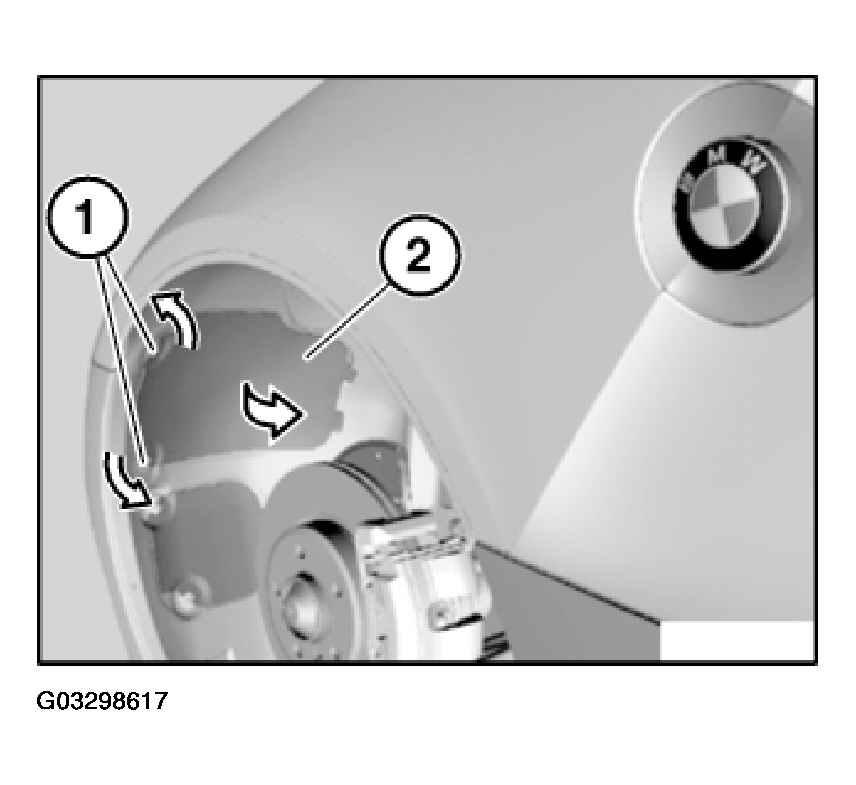

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.

Fig 1: Unlocking Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

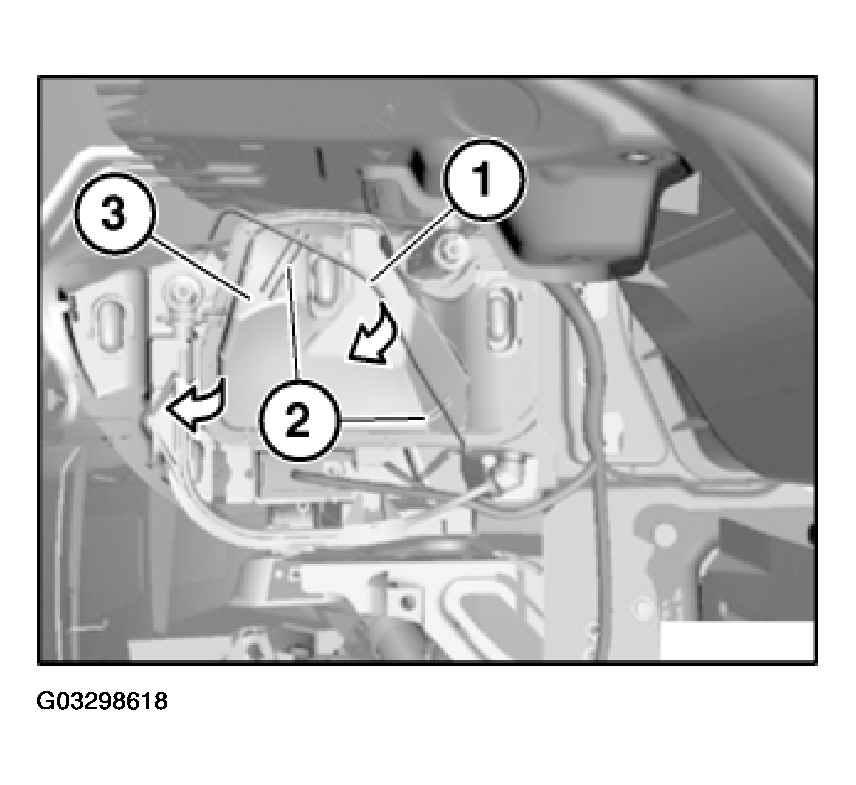

Lift locking bracket (1) out of mounts (2) and fold down as illustrated.

Feed out cover (3) in direction of arrow and remove.

Fig 2: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The front turn signal lamps has 2 bulbs.
Bulb holder (1): outer side of vehicle
Bulb holder (2): inner side of vehicle

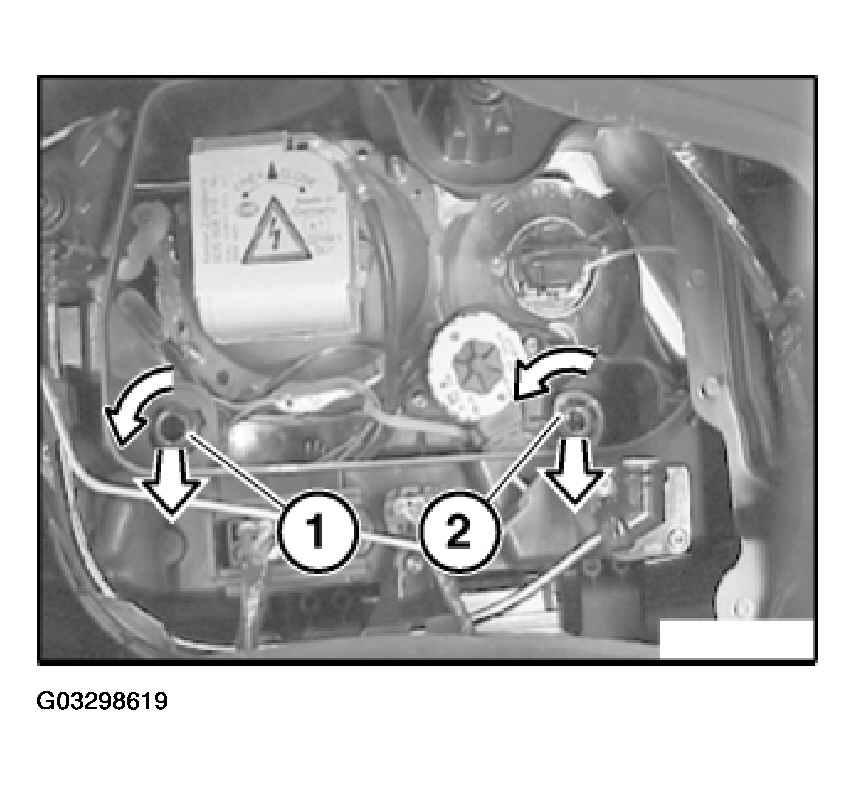

Unlock bulb holder (1) or (2) with a Phillips screwdriver approx. 30° counterclockwise and feed out with a suitable tool (e.g. long-nose pliers).

Fig 3: Unlocking Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

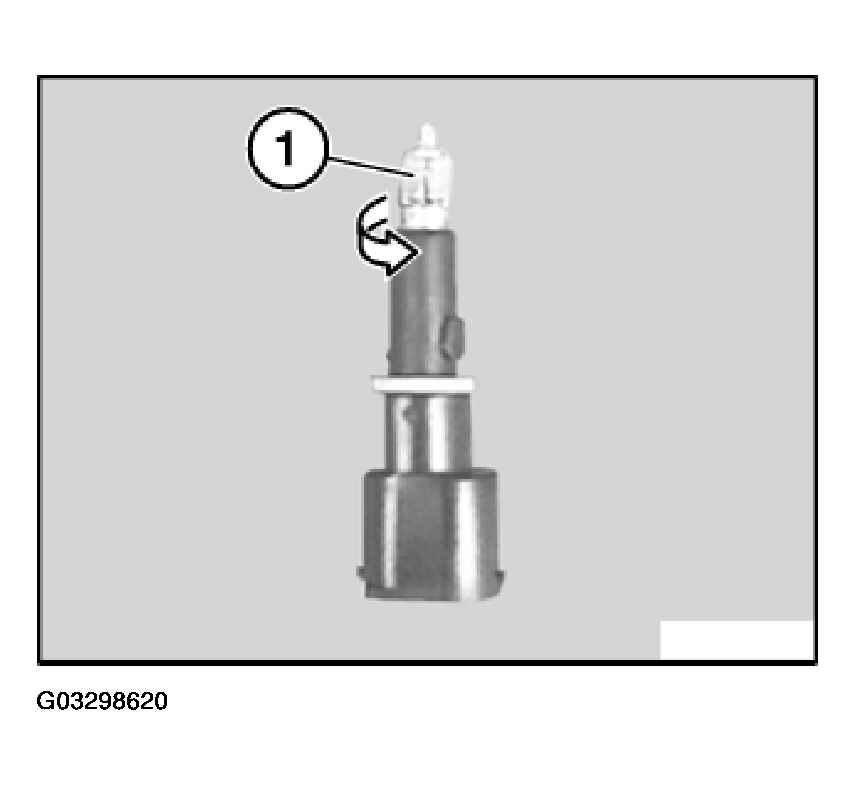

Press bulb (1) and feed out of bulb holder in direction of arrow.

Installation:

Note Type Of Bulb .

Fig 4: Pressing Bulb And Feed Out Of Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
