63 21 101 Replacing sealing frame for left or right rear light
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove Rear Light

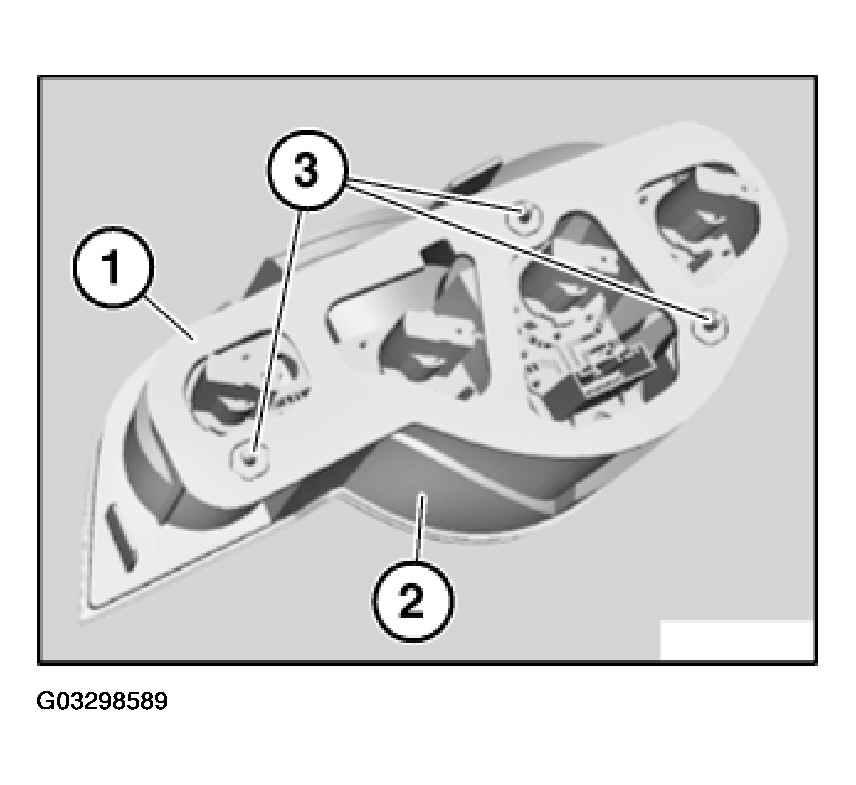

Detach sealing frame for rear light (1) from rear light (2).
Installation:
Sealing frame for rear light (1) is centered via openings for threaded pins (3).
Make sure sealing frame for rear light (1) is correctly bonded all round on rear light (2).
