63 21 170 Removing and installing/replacing left or right rear light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Turn turn-lock fastener (1) in direction of arrow and remove trim (2).

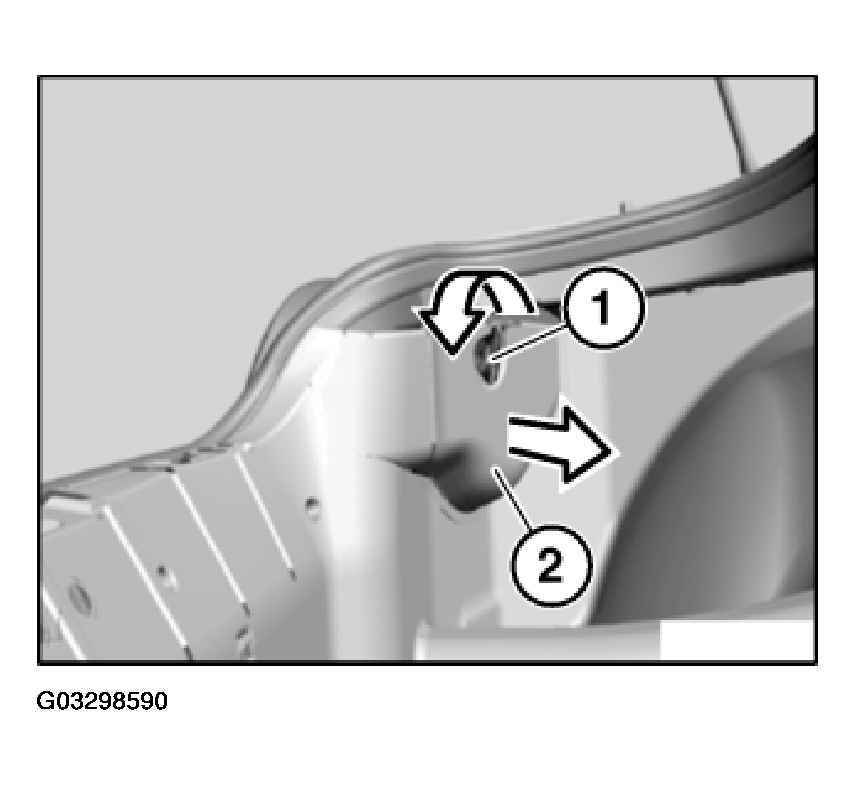

Fig 1: Turning Turn-Lock Fastener

Courtesy of BMW OF NORTH AMERICA, INC.

Disconnect plug connection (1).

NOTE: Secure rear light (3) against falling out.

Release nuts (2) and remove exterior rear light (3).

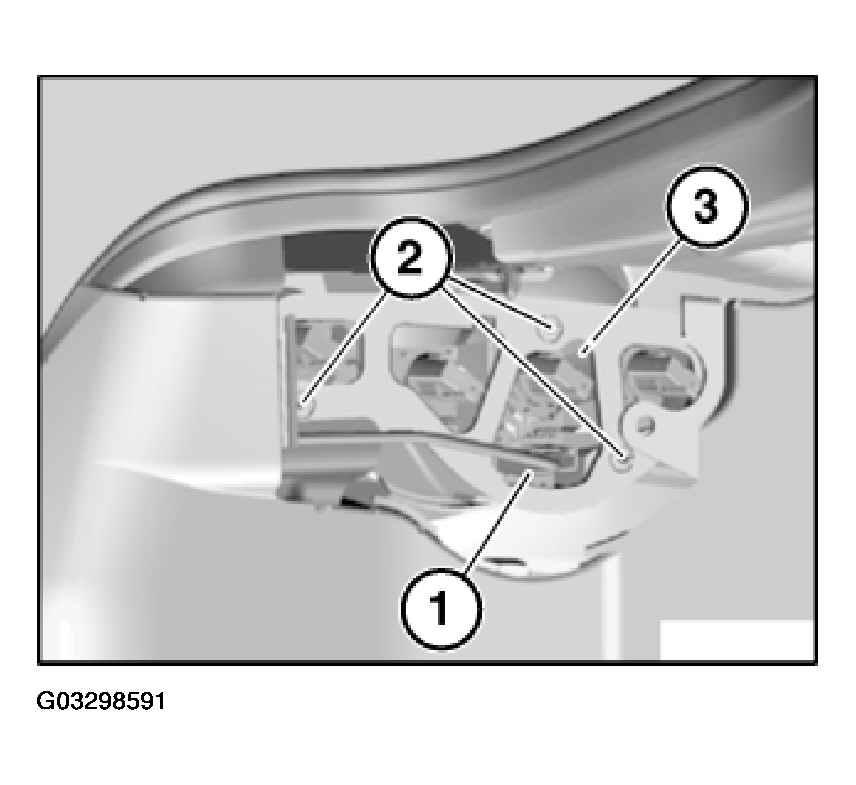

Fig 2: Disconnecting Plug Connection

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Make sure sealing frame for rear light (2) is correctly seated, replace if necessary.
Make sure guides (1) of rear light (3) are correctly seated in associated mountings.
Make sure (outer) gap of rear light (3) is uniform all round.

Replacement:

Remove trim on rear light.

If necessary, remove all socket housings for rear light.

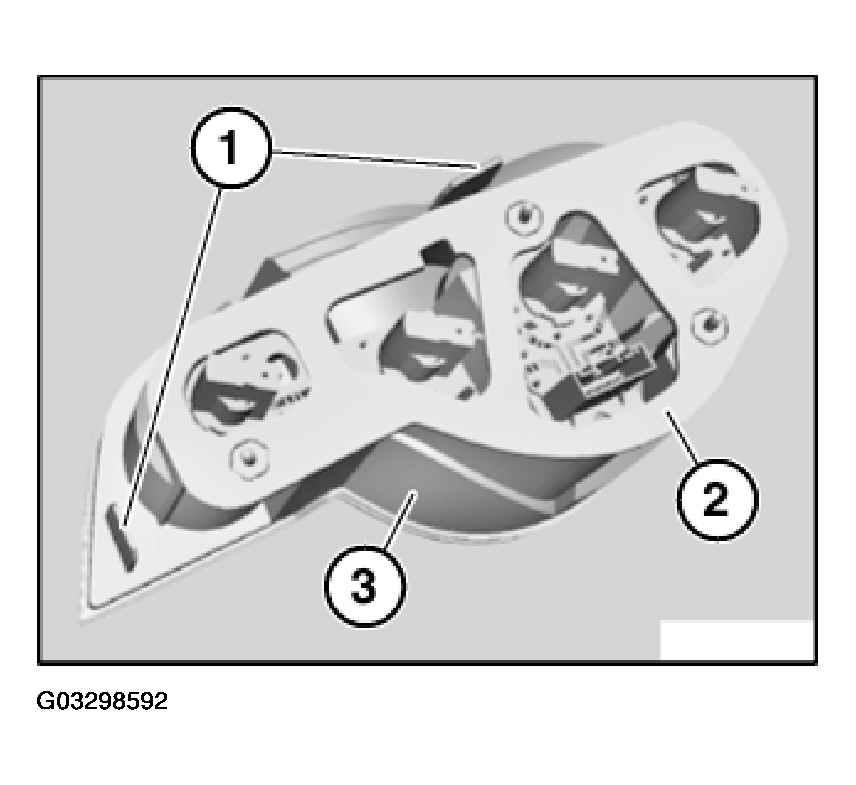

Fig 3: Identifying Guides Of Rear Light

Courtesy of BMW OF NORTH AMERICA, INC.
