63 99 315 Replacing light bulb(s) for left or right rear light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove Socket Housing For Rear Light

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Remove faulty bulb (1) in direction of arrow from socket housing (2).

Installation:

Note Type Of Bulb .

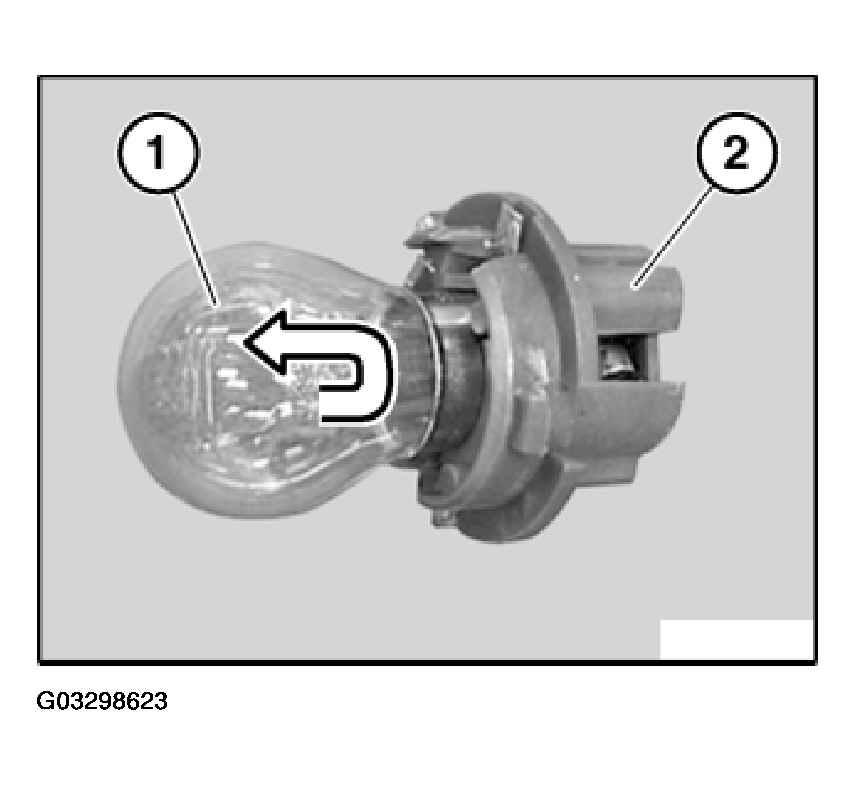

Fig 1: Removing Faulty Bulb From Socket Housing

Courtesy of BMW OF NORTH AMERICA, INC.
