63 21 055 Replacing a socket housing for left or right tail light

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Turn turn-lock fastener (1) in direction of arrow and remove trim (2).

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights)  .

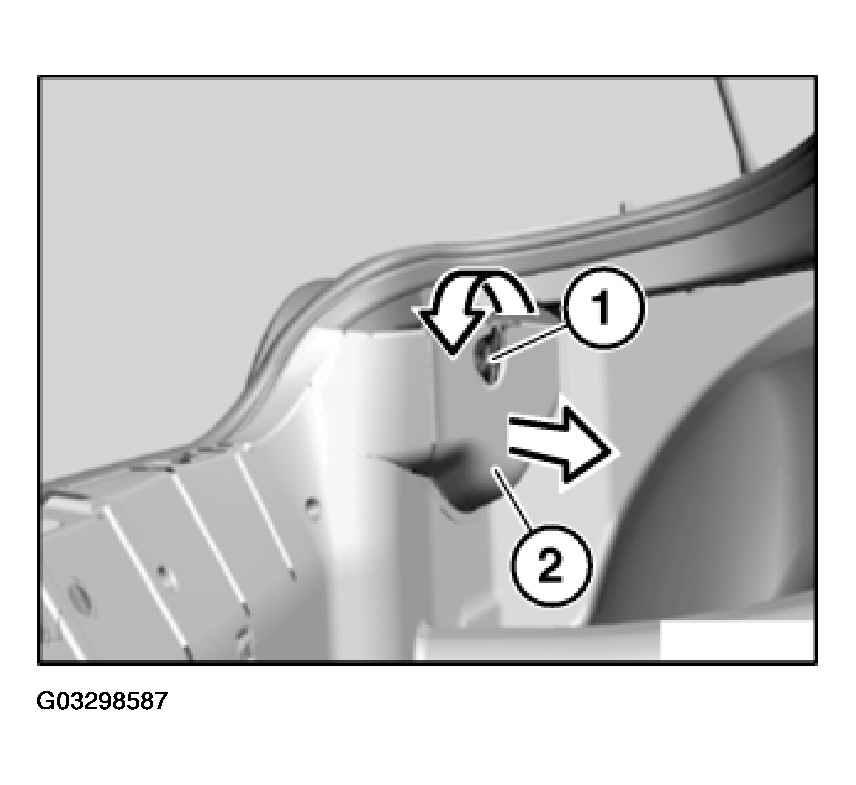

Fig 1: Removing Trim
G03298587Courtesy of BMW OF NORTH AMERICA, INC.

Turn socket housing for rear light to be replaced counterclockwise and remove.

Convert Bulb   , replace if necessary.

NOTE:
  1. EUR driver's side only:

    Socket housing for fog warning lamp

    All others:

    Socket housing for reversing light

  2. Socket housing for combined brake/rear light
  3. Socket housing for turn signal light
  4. Socket housing for combined brake/rear light

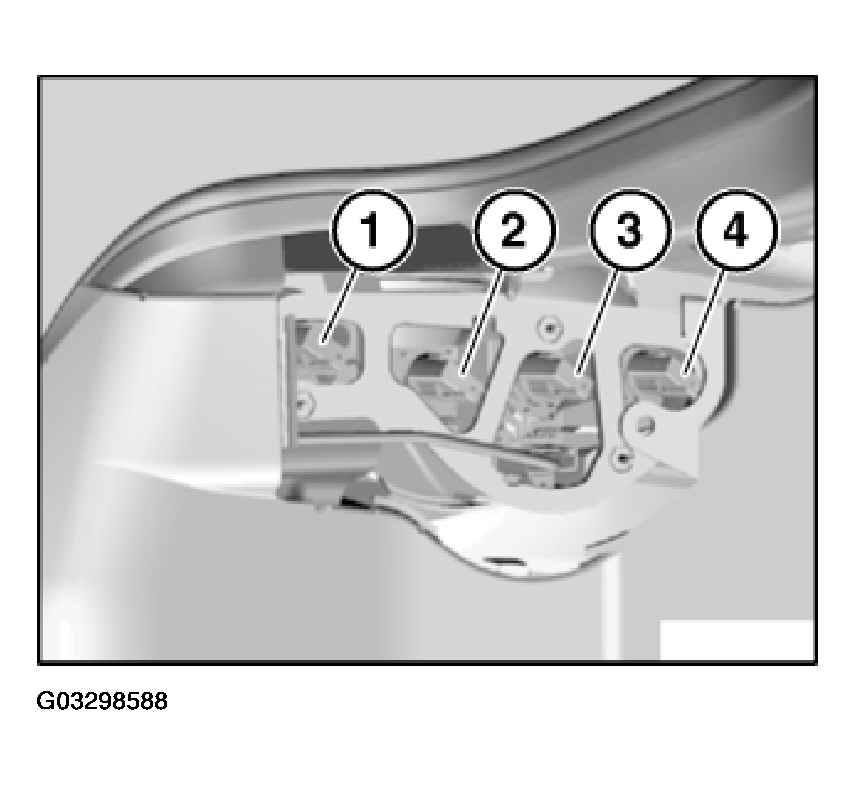

Fig 2: Turning Socket Housing For Rear Light
G03298588Courtesy of BMW OF NORTH AMERICA, INC.
