63 99 295 Replacing bulb for auxiliary turn signal light, front left or right

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front Auxiliary Turn Signal Light

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions for handling light bulbs (exterior lights) .

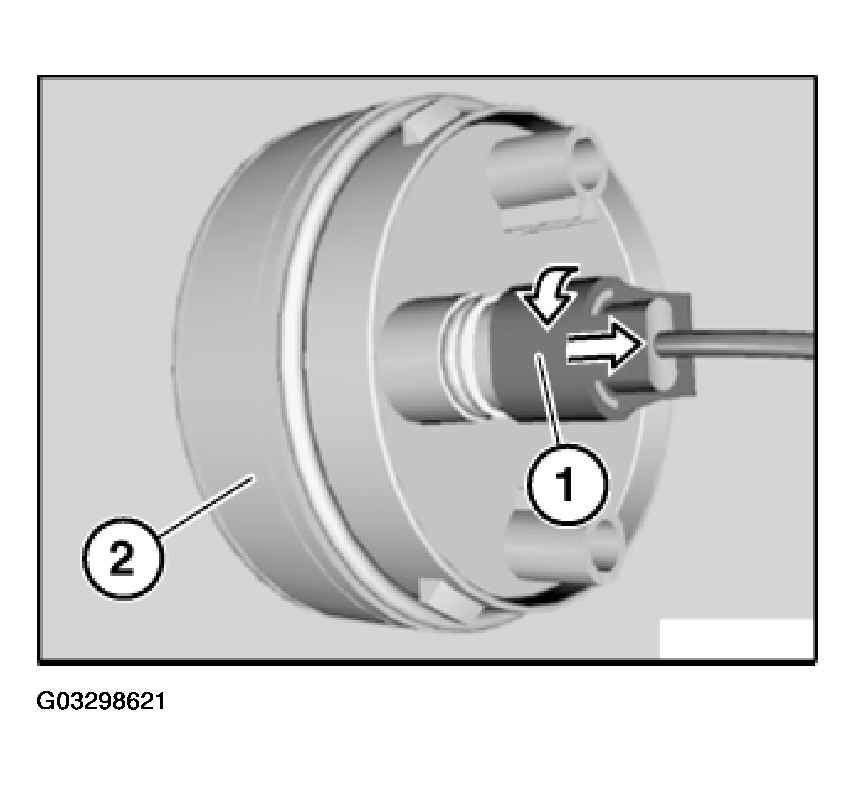

Turn bulb holder (1) in direction of arrow and remove from front auxiliary turn signal lamp (2).

Fig 1: Turning Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.

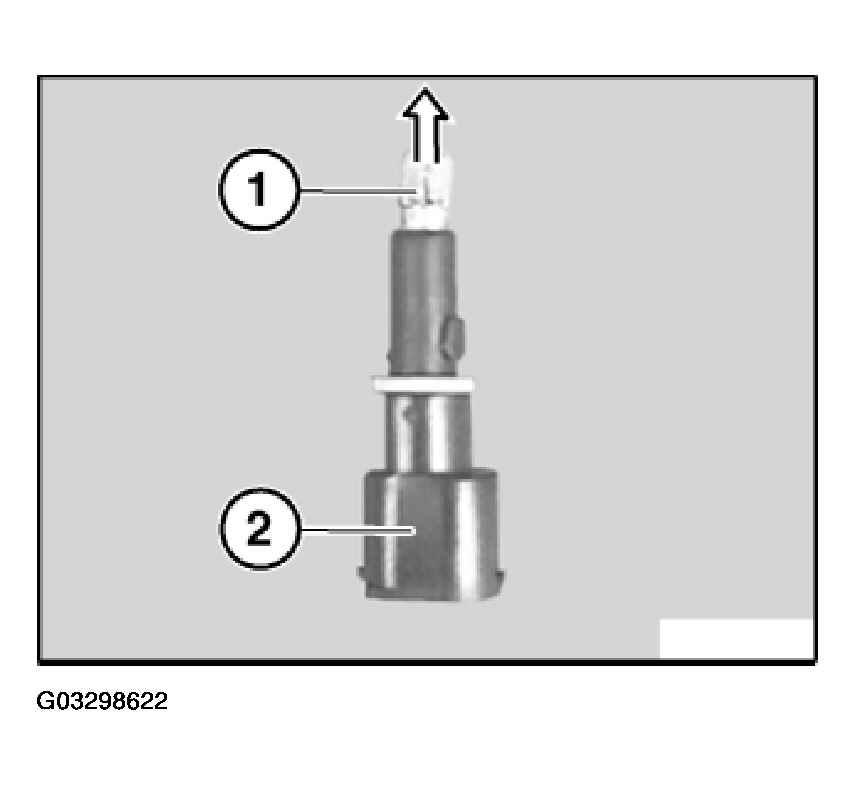

Remove bulb (1) from bulb holder (2) in direction of arrow.

Installation:

Note Type Of Bulb .

Fig 2: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
