63 99 132 Replacing bulb for side marker lamp, front left
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
US only: This job is described under:
"Replacing bulb For Front Left Turn Signal Lamp (Outer Side Of Vehicle)" .
EUR only:
NOTE:
Front wheel removed for purposes of clarity.

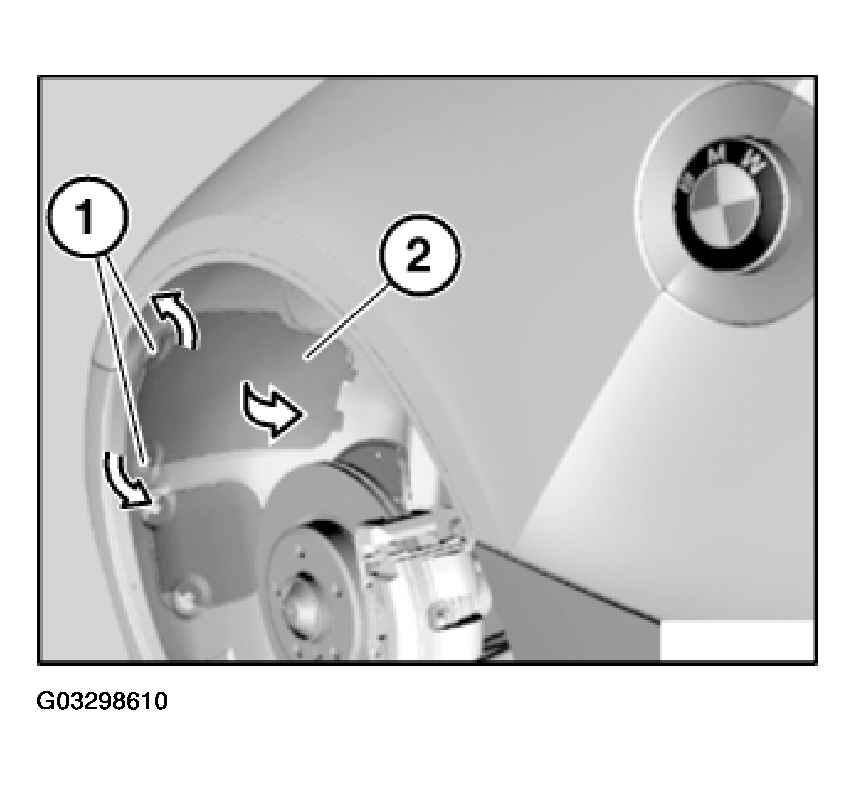

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.
WARNING:
Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights)
.

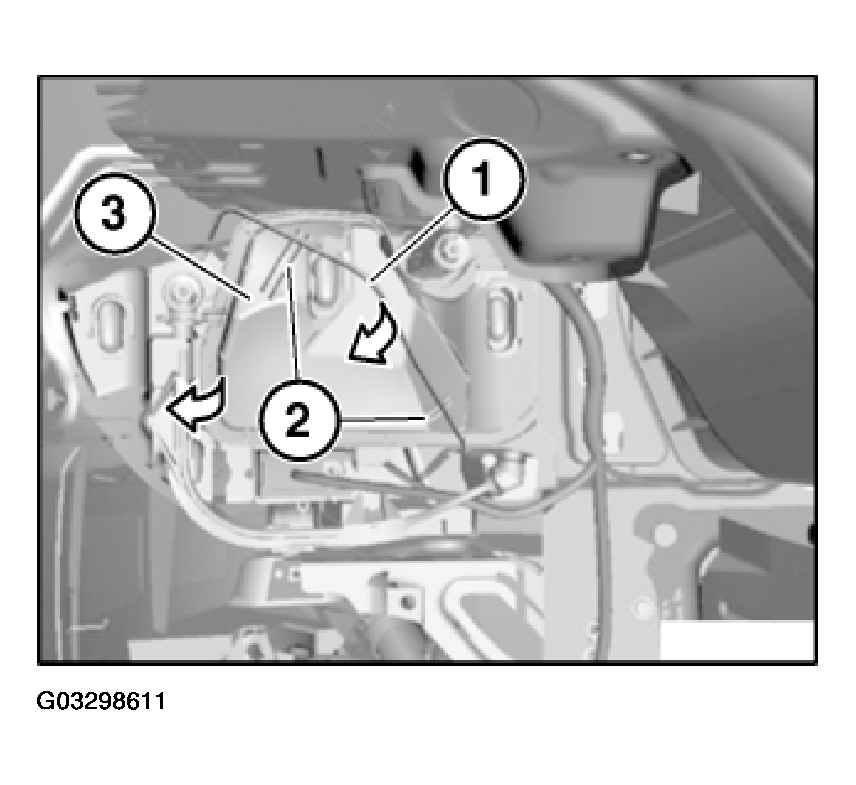

Lift locking bracket (1) out of mounts (2) and fold down as illustrated.
Feed out cover (3) in direction of arrow and remove.

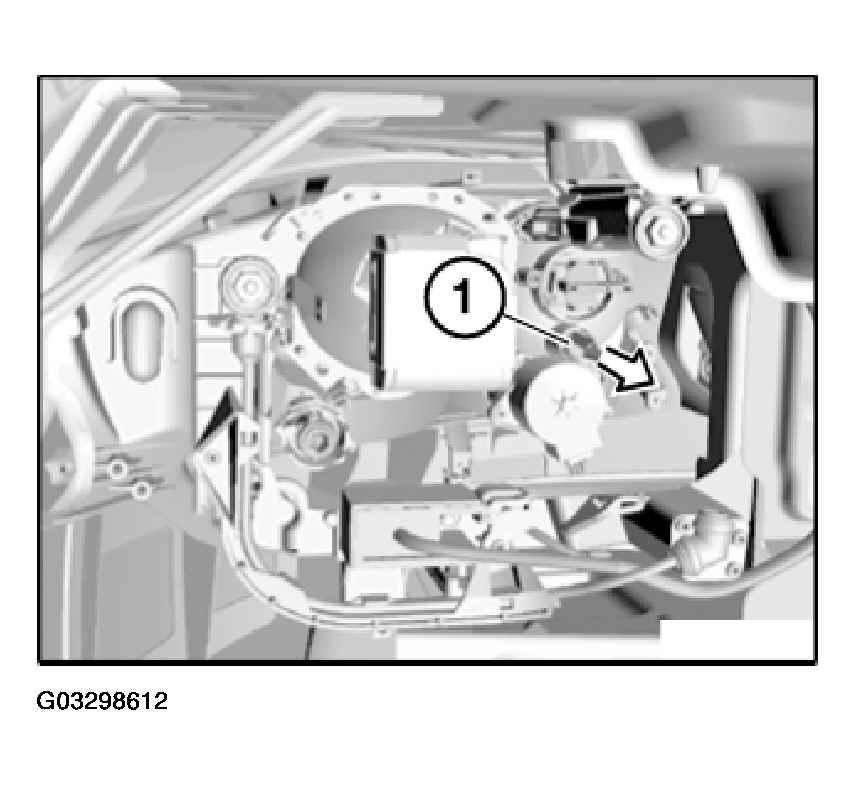

Feed out bulb holder (1) in direction of arrow and remove.

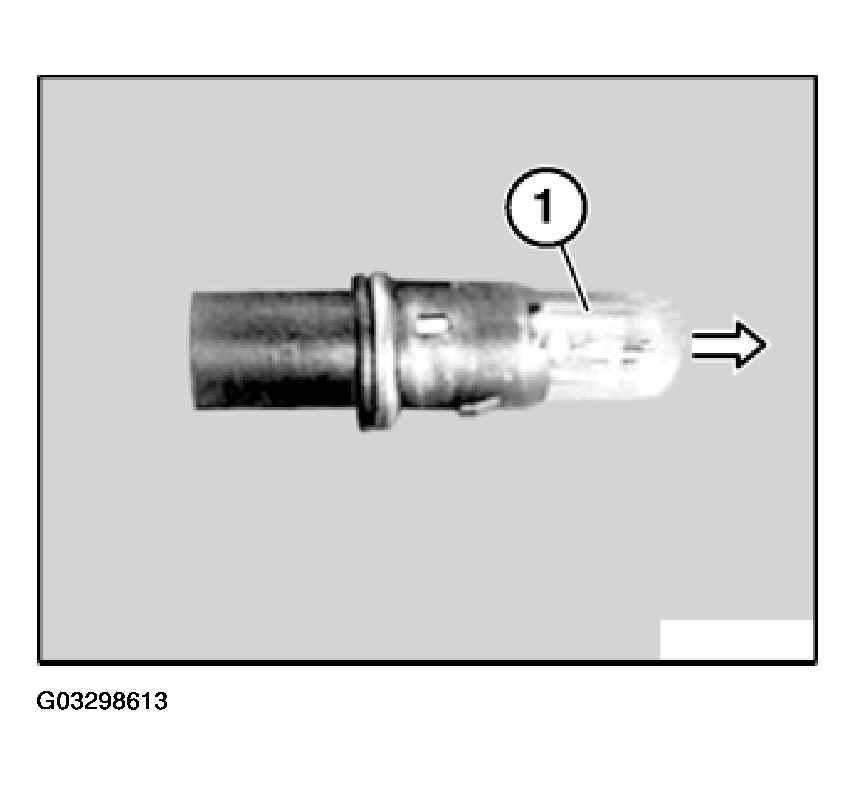

Take bulb (1) out of bulb holder.
Installation:
Note type of bulb .
