63 12 001 Removing and installing/replacing left headlight

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Remove front bumper trim. See 51 11... OVERVIEW OF FRONT BUMPER .

Release screws (1).

Pull out headlight (2) in direction of arrow slightly, unlock and disconnect all plug connections.

Remove headlight (2).

Installation:

Adjust headlight to fit. See 63 10 004 Adjusting Headlights .

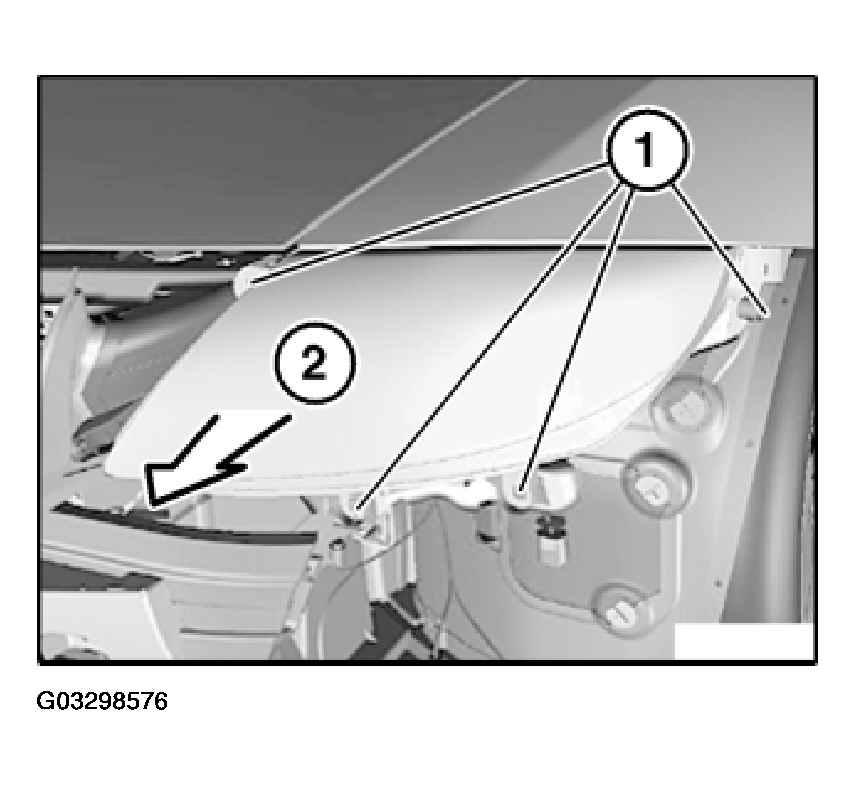

Fig 1: Removing Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

WARNING: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

Replacement:

If necessary, remove Bulbs .

Installation:

Adjust headlights . See 63 10 004 Adjusting Headlights .
