63 10 004 Adjusting headlights
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
Observe Test Requirements For Headlight Vertical Aim Adjustment .
NOTE:
Engine hood is open.

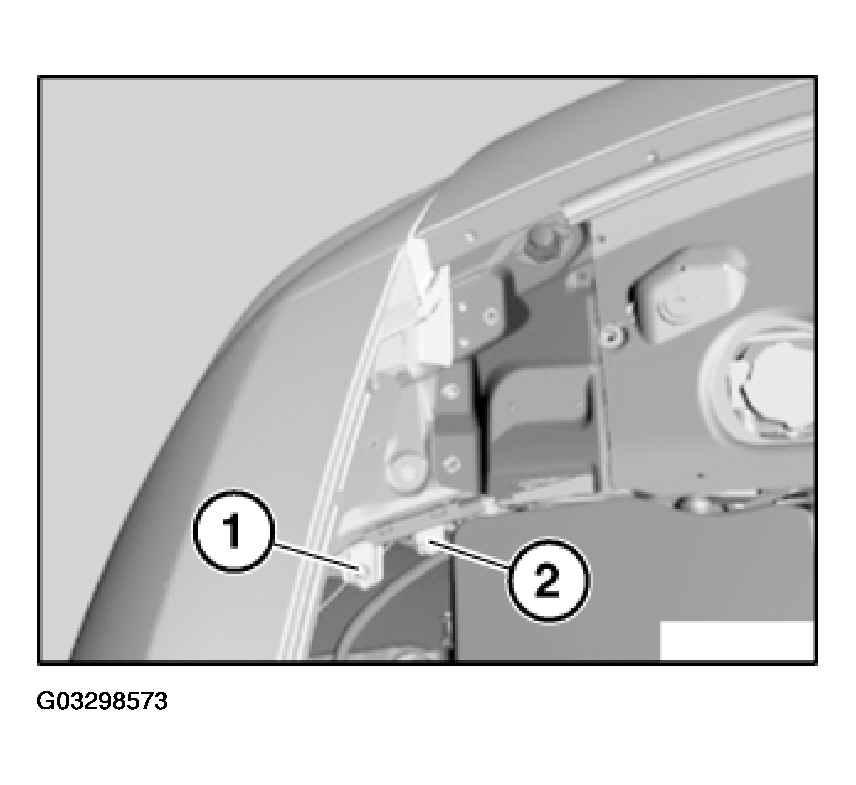

Adjust headlights at adjusting screws (1) and (2).
A definite allocation of adjusting screws is not possible.
- Adjustment screw primarily for vertical adjustment
- Adjustment screw primarily for lateral adjustment
