63 99 201 Replacing halogen bulb for left or right front fog lamp

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Front wheel removed for purposes of clarity.

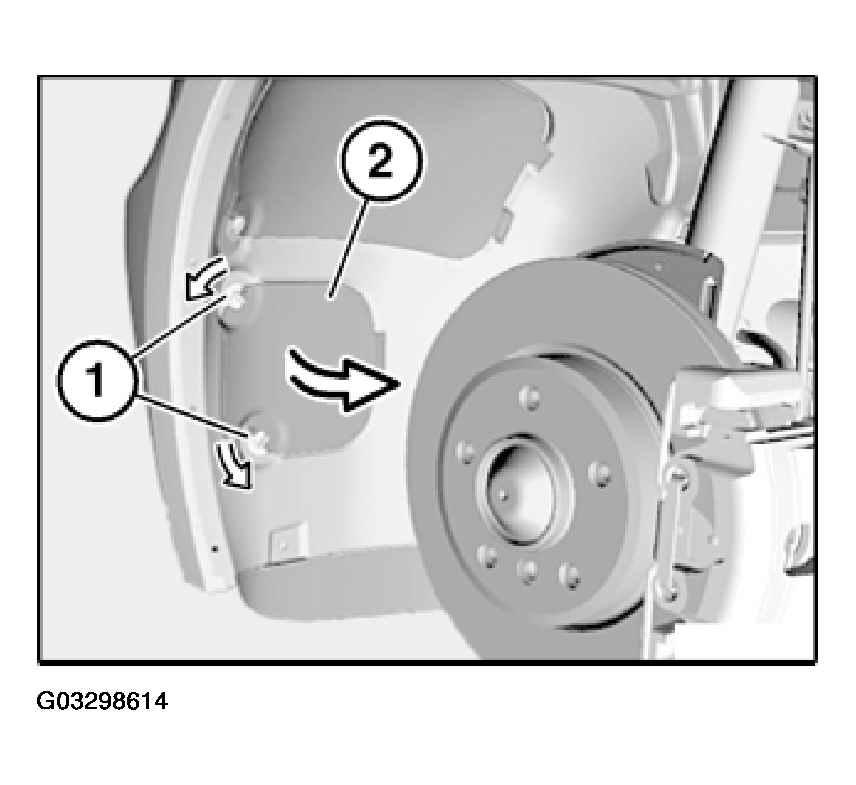

Unlock fasteners (1) by turning counterclockwise through 180° and fold up cover (2) in direction of arrow.

Fig 1: Unlocking Fasteners

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Follow instructions for handling light bulbs (exterior lights). See 63 99... Instructions For Handling Light Bulbs (Exterior Lights) .

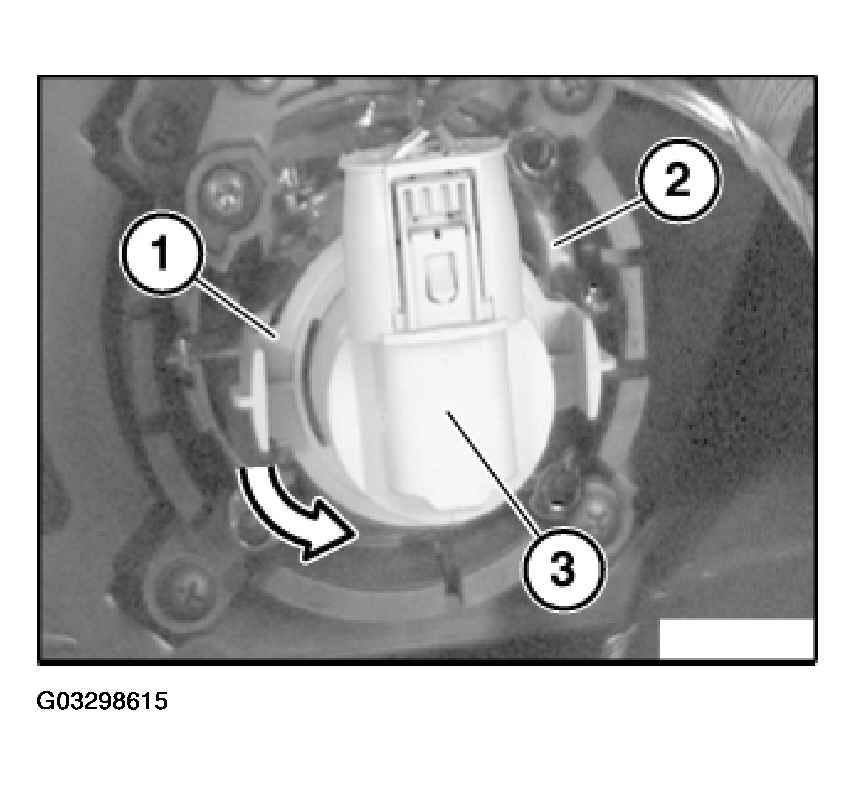

Turn retaining ring (1) in direction of arrow and remove bulb holder (3) from front fog lamp (2).

NOTE: Press bulb holder (3) forwards if retaining ring (1) is tightly seated.

Fig 2: Removing Bulb Holder From Front Fog Lamp

Courtesy of BMW OF NORTH AMERICA, INC.

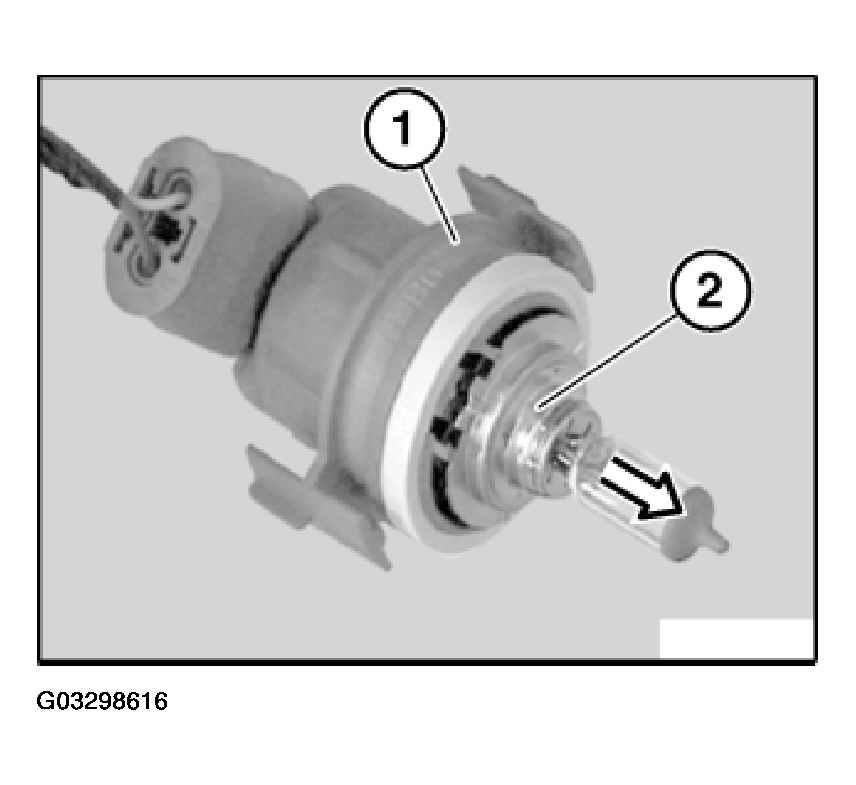

Remove bulb (2) from bulb holder (1) in direction of arrow.

Installation:

Note type of bulb .

Fig 3: Removing Bulb From Bulb Holder

Courtesy of BMW OF NORTH AMERICA, INC.
