61 71 100 Removing and installing/replacing windshield washer pump
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 BMW Z4, 2007 BMW Z4, 2006 BMW Z4, 2005 BMW Z4, and 2004 BMW Z4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Drain fluid reservoir for windshield washer system. See 61 71 061 Replacing Fluid Reservoir For Windshield Washer System
.

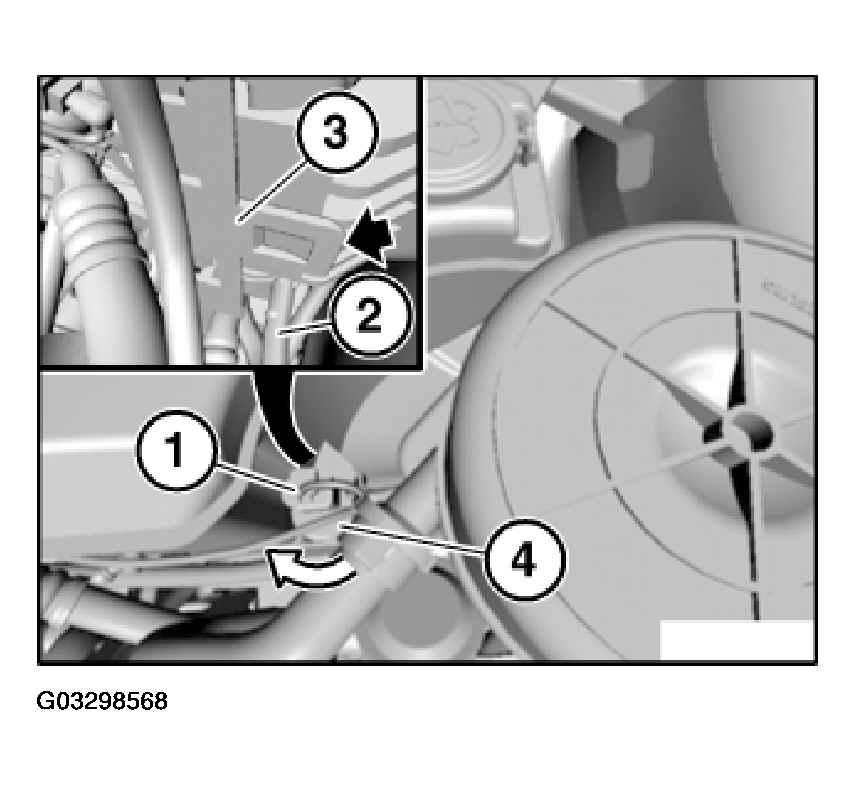

Unlock plug connection (1) and disconnect.
Detach hose (2) from windshield washer pump (4).
Unclip cover (3) and lay to one side.
Installation:
Make sure cover (3) is correctly seated.
Make sure hose (2) is laid without kinks.
Turn windshield washer pump (4) in direction of arrow through approx. 90° and pull up and out of fluid reservoir for windshield washer system.
Installation:
Replace sealing ring and strainer in windshield washer pump.
Coat sealing ring of windshield washer pump with antiseize agent.
Fill fluid reservoir for windshield washer system.
