54 31 150 Removing and installing/replacing tension belts
WARNING: This page does not describe the selected car, but rather 12 other vehicles, including the 2008 BMW Z4, 2008 BMW M Roadster, 2008 BMW M Coupe, 2007 BMW Z4, and 2007 BMW M Roadster. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remove convertible top . See 54 34 101 Removing And Installing Complete Convertible Top .
- Partially remove convertible top fabric . See 54 34 120 Replacing Convertible Top Fabric . (Without main support and without last bow).
Feeding out belt at bow 1:

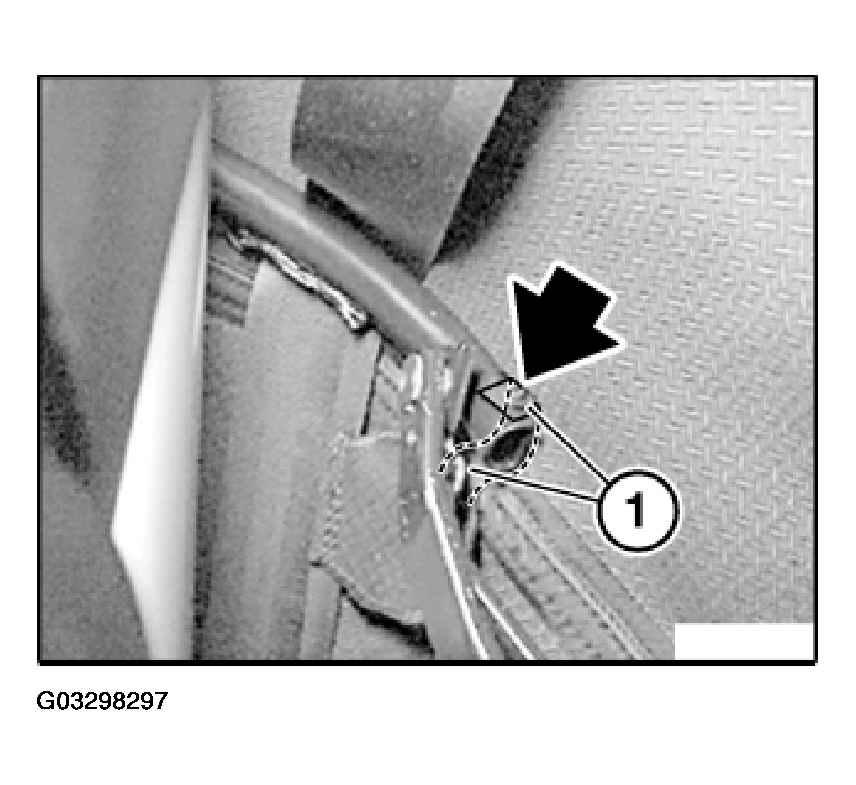

- Release screws (1) on left/right on inside
- Retract convertible top a little

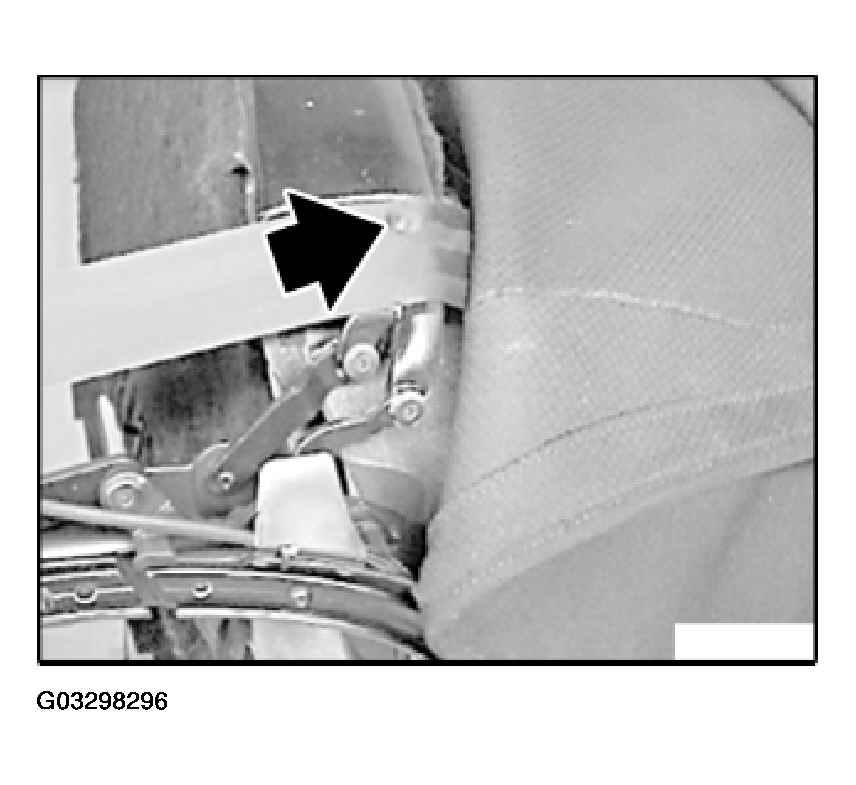

- Pull belt slightly and retract fastening clip

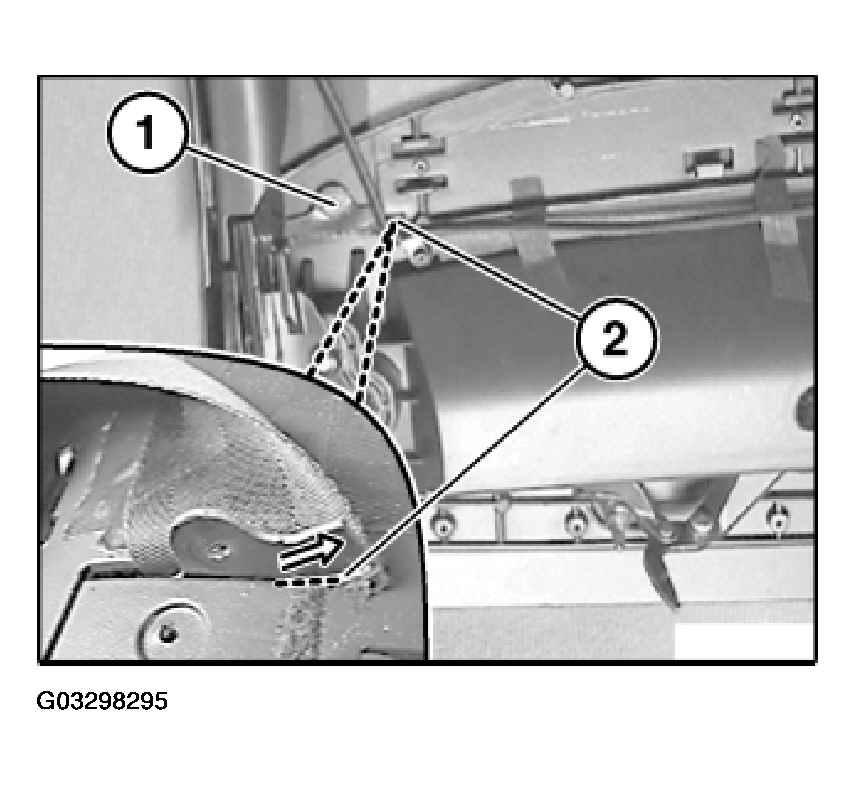

- Feed out start of belt to center over opening (2) towards top
Unfasten screws on left/right side.
Installation:
Fit belt first at bow 1 to obtain tension. Then insert screw here.
Unfasten screws on left/right side.
Installation:

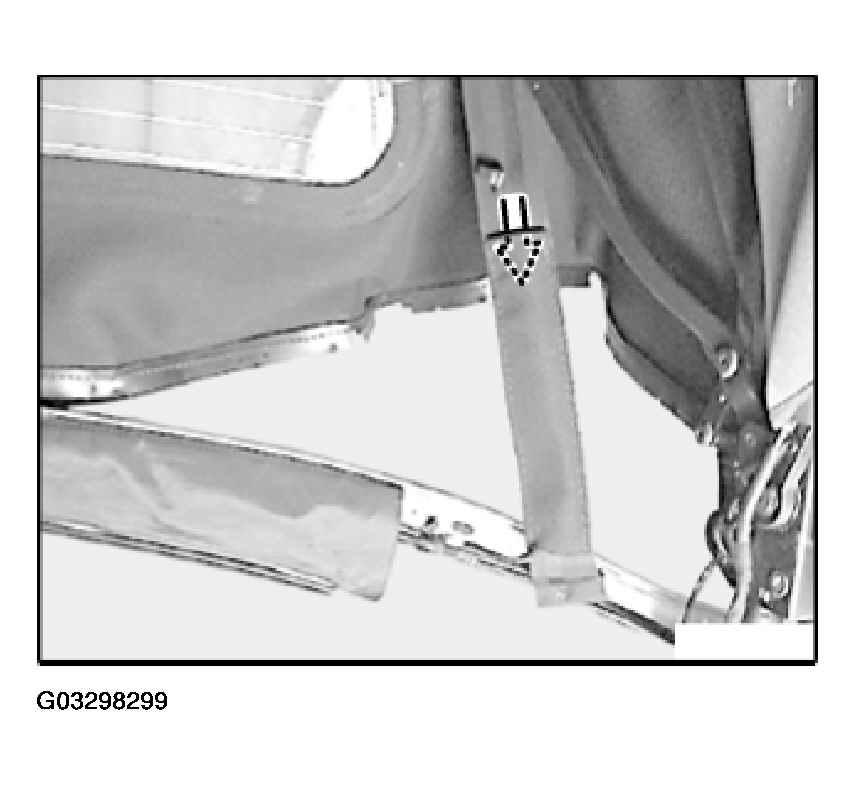

Guide belt clip from rear over last bow.
Feeding belt out of convertible top strip:

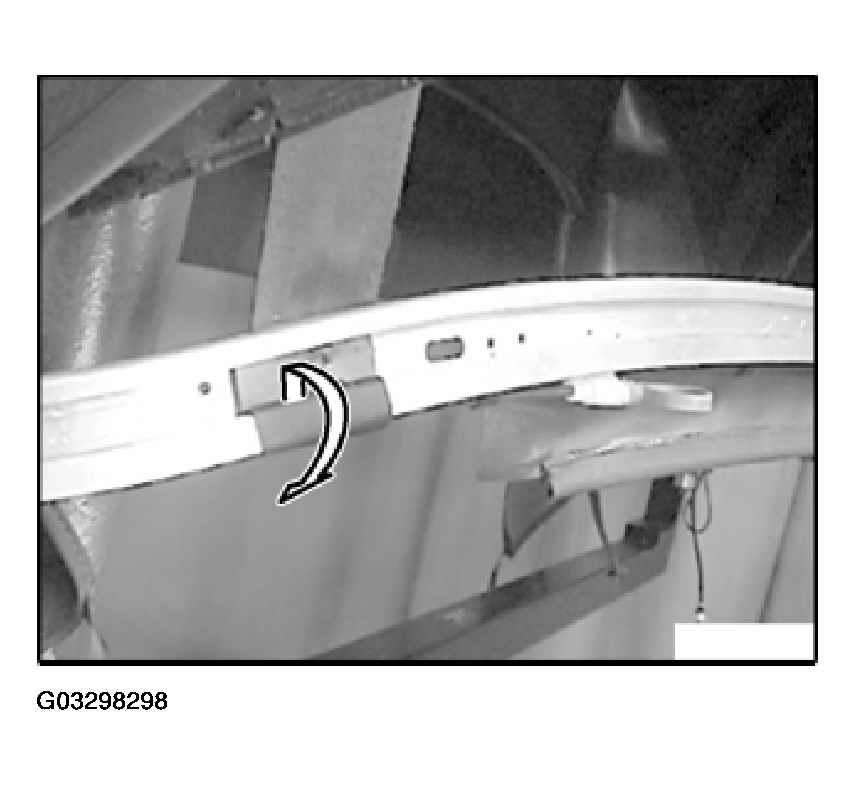

- Raise welt
- Remove welt towards rear bottom
Feed out cable towards bottom.

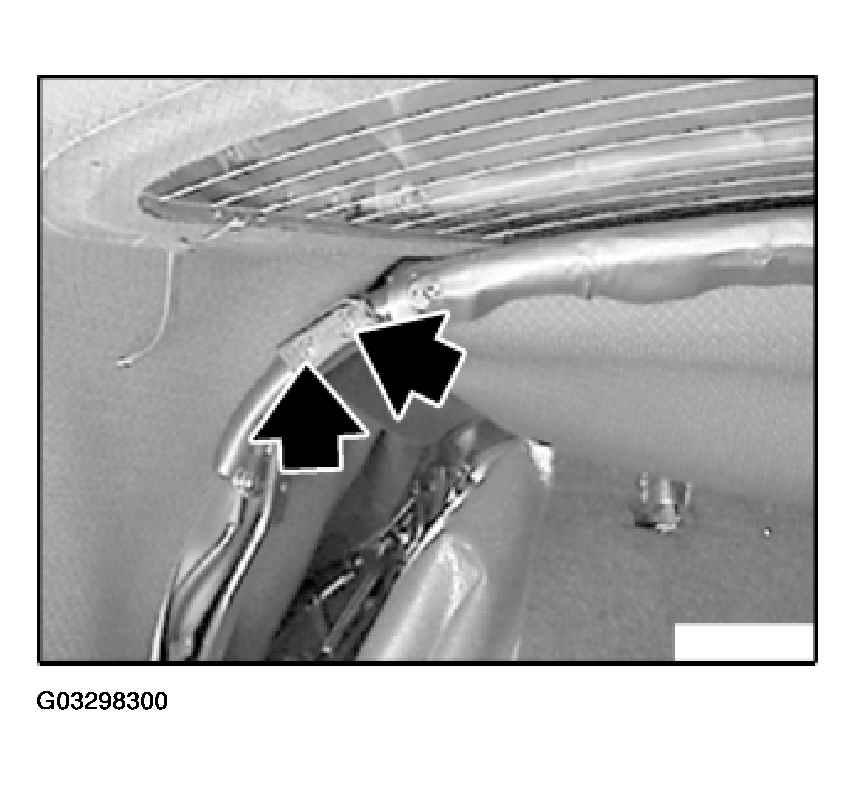

Unfasten screws.
Feed out belt.
Installation:

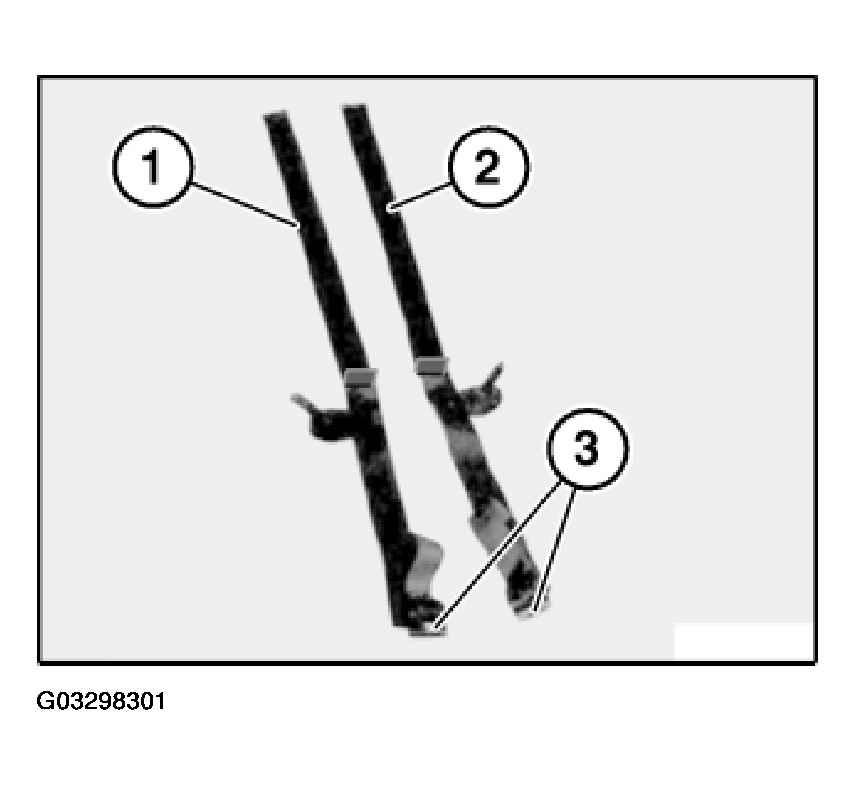

Pay attention to right (1) and left (2) version.
3 = Rear
